1SAM201910R1001

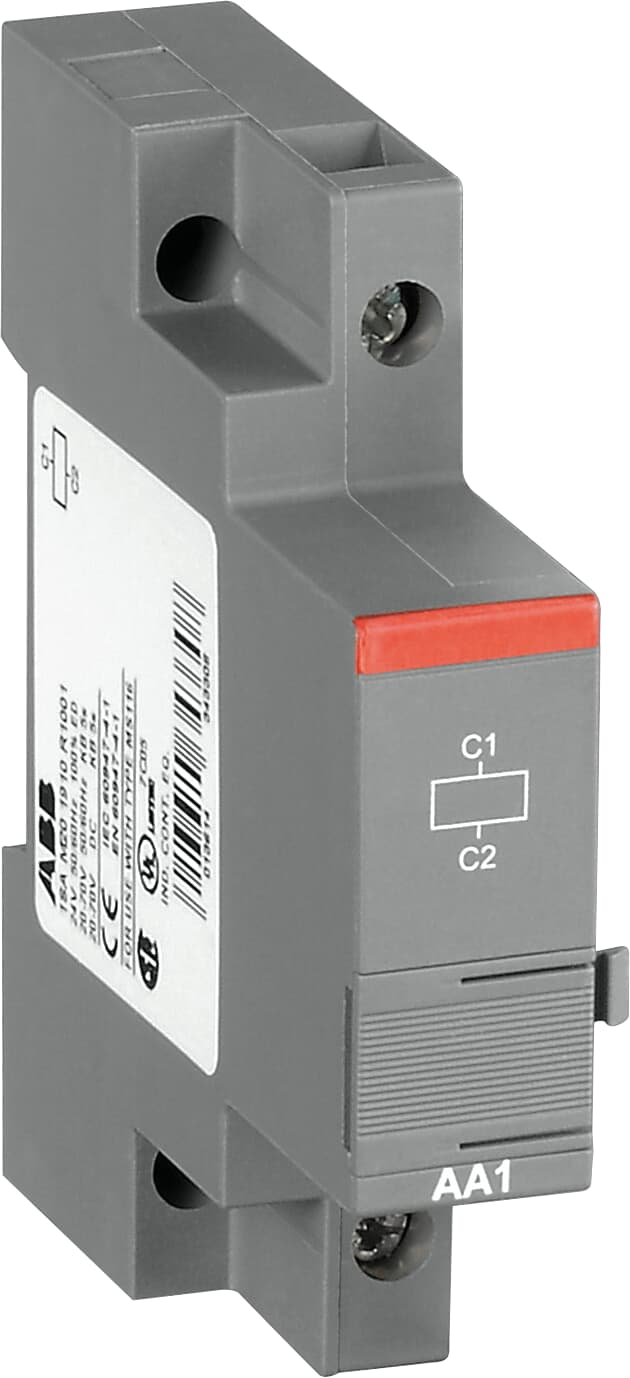

ABB AA1-24 Shunt release (for power circuit breaker)
Availability● On RequestSubject to confirmation
Estimated Dispatch5-7 business daysTypical for available stock
Warranty12 MonthsNeoIPS warranty
Verified ProductPart number confirmed
Global SourcingSupplier network
Quality Assured12-month warranty
Responsive SupportBefore and after sale
Shunt trips AA1 release manual motor starters used for remote tripping. They are attached laterally on the left side of MS116, MS132 or MS165.
- Manufacturer
- ABB
- Part number
- 1SAM201910R1001
- Category
- Circuit Breaker Accessories
- Technical details
- Rated Frequency (f): Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC; Terminal Type: Screw Terminals; Standards: CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508…; Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²…; Tightening Torque: Auxiliary Circuit 0.8 ... 1.2 N·m; Wire Stripping Length: Auxiliary Circuit 10 mm
- Weight
- 0.1 kg
- Dimensions
- 18 × 90 × 75.5
