140G-M6H3-D80-UD-CJ

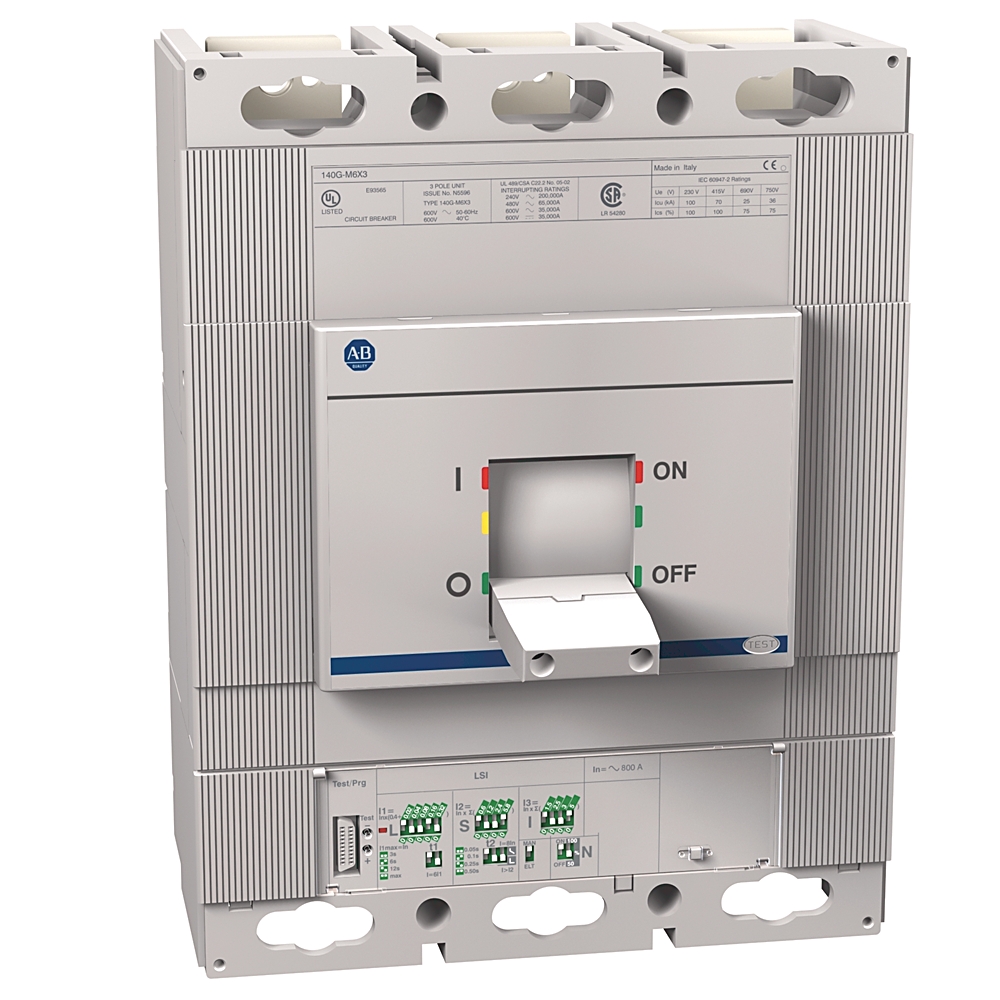

140G - Molded Case Circuit Breaker, M frame, 65 kA Interrupt Rating, LSI (Electronic DIP Switch), 3 Poles, Rated Current 800 A (80% Rated), Undervoltage Release 110...127V AC/110...125V DC, 3 No/NC AUX + Alarm, 24V.

Manufacturer

Allen-Bradley

Part number

140G-M6H3-D80-UD-CJ

Product family

140G

Category

Circuit Breaker Accessories

Technical details

Number of poles: 3; Interrupting rating: 65kA @ 480V AC, 50/60 Hz per NEMA, UL, CSA; Rated service short-circuit breaking capacity (Ics): IEC 60947-2: 75% Icu @ 750V DC, 3-poles in series, thermal-magnetic trip units only; Rated ultimate short-circuit breaking capacity (Icu): IEC 60947-2: 70kA @ 400...415V AC, 50/60 Hz; Frame size: 800 A; Protection type—Electronic I (instantaneous trip units): I3 = 1200...8400 A

Weight

12.101844 kg

Dimensions

210 × 268 × 103.5

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
