1222814

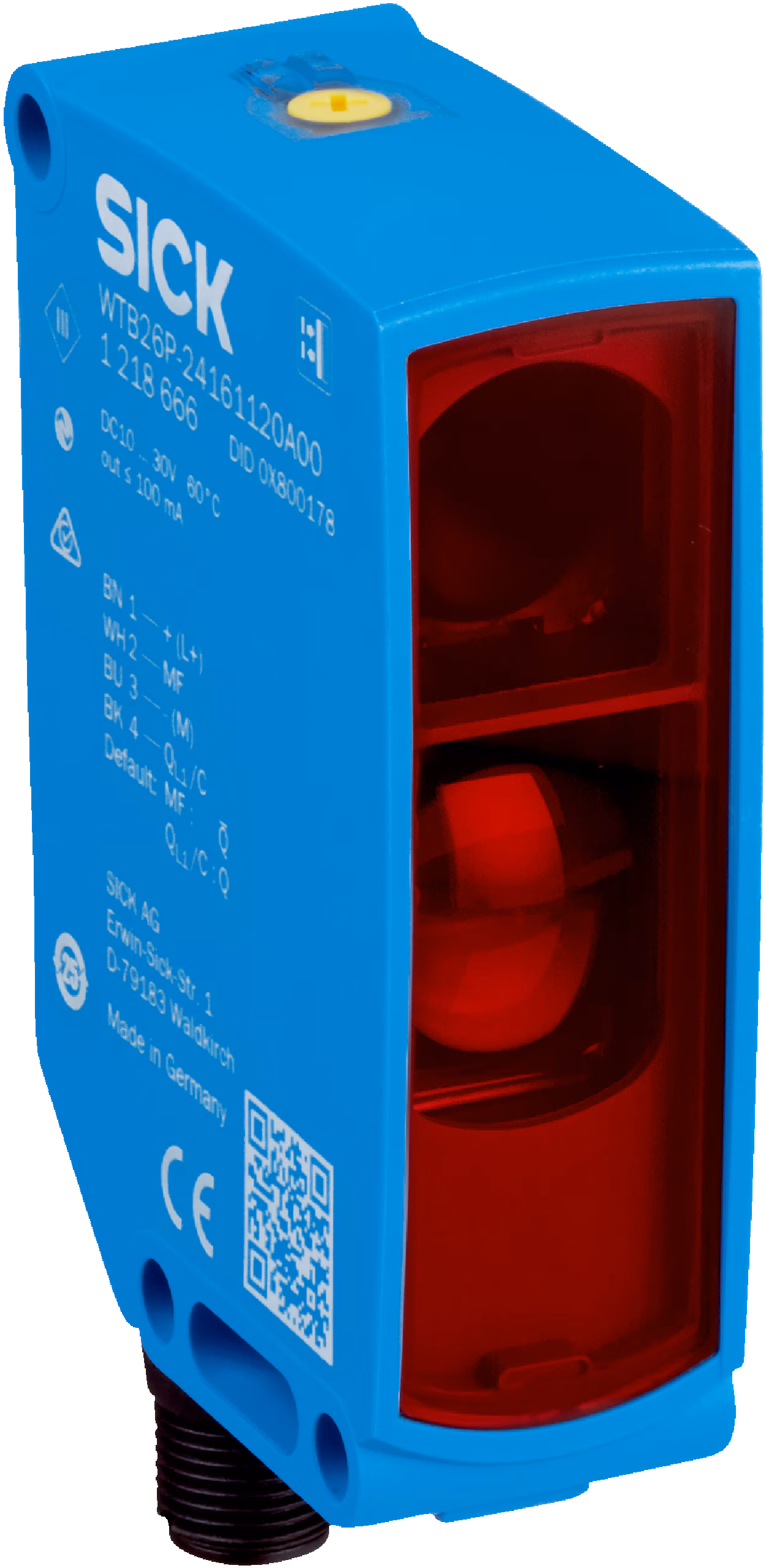

SICK 1222814 / WTB26I-24116120ZZZ is a photoelectric sensor in the W26 family. Sensing range min. / max.: 30 mm / 2,000 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: Push-pull: PNP/NPN; Switching mode: Dark switching; Connection type: Male connector M12, 4-pin; Light source: LED; Type of light: Infrared light; Housing material: VISTAL®; Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment; Housing: Rectangular.

Manufacturer

Sick

Part number

1222814

Product family

W26

Category

Photoelectric sensors

Technical details

Type of light: Infrared light; Sensing range: Sensing range min. 30 mm; Sensing range max.: 2,000 mm; Minimum distance between set sensing range and background (black 6% / white 90%): 85 mm, at a distance of 800 mm; Recommended sensing range for the best performance: 200 mm... 800 mm; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent and short-circuit protected Response time: ≤ 500 µs; Repeatability (response time): 150 µs; Dimensions (W x H x D): 24.6 mm x 82.5 mm x 53.3 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); IP69 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 80 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression

Weight

0.08 kg

Dimensions

24.6 x 82.5 x 53.3
