1222286

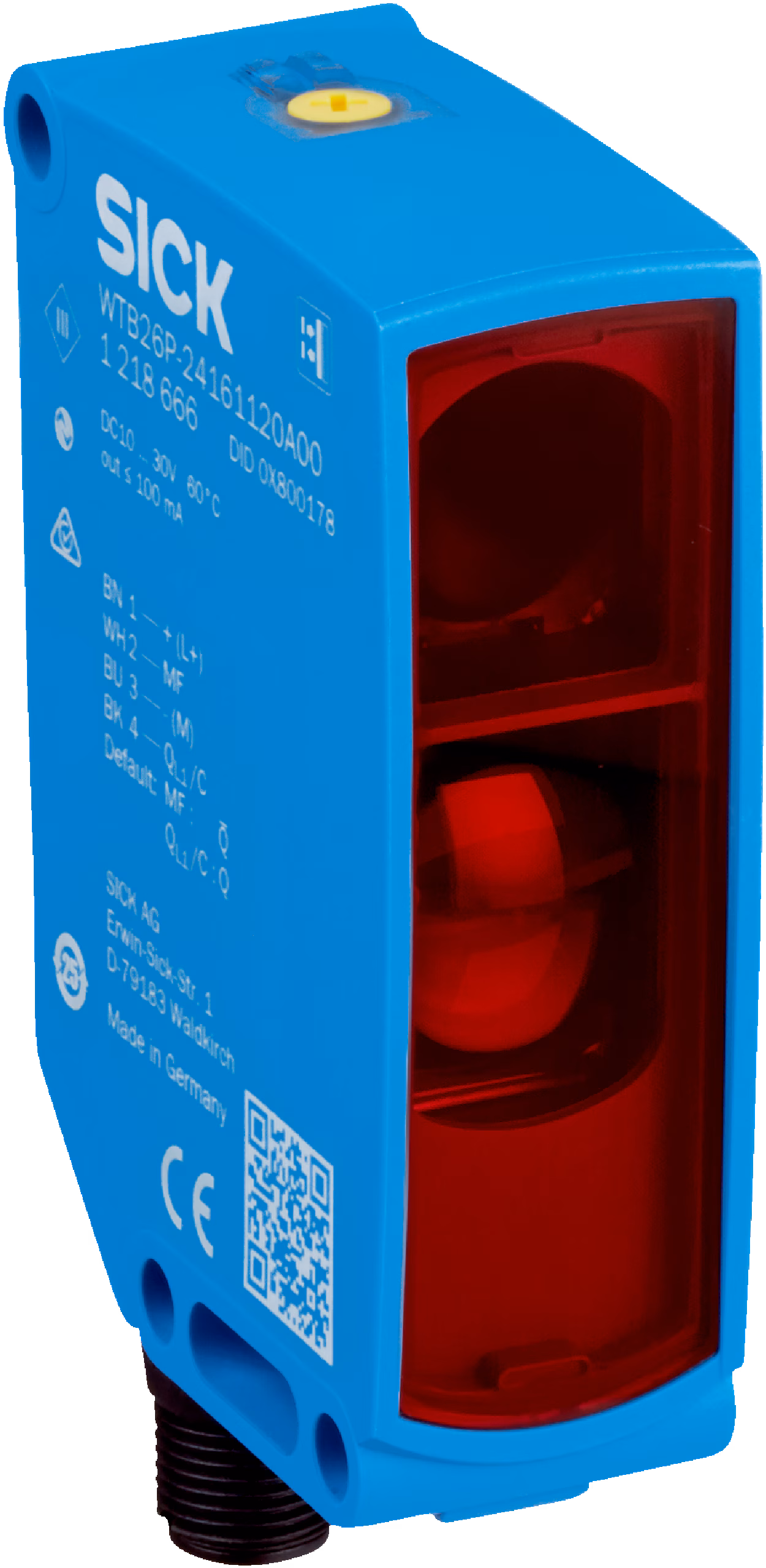

SICK 1222286 / WTB26P-24161120A00 is a photoelectric sensor in the W26 family. Sensing range min. / max.: 30 mm / 500 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: Push-pull: PNP/NPN; Switching mode: Light/dark switching; Connection type: Male connector M12, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: IO-Link; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, Smart Task; Smart Task name: Base logics; Special features: Factory setting: sensing range 500 mm, Teach-Turn adjustment deactivated; Housing: Rectangular.

Manufacturer

Sick

Part number

1222286

Product family

W26

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 30 mm; Sensing range max.: 500 mm; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent and short-circuit protected Response time: ≤ 500 µs; Repeatability (response time): 150 µs; Response time: SIO Logic: 600 µs; IOL: 750 µs; Repeatability: SIO Logic: 300 µs; IOL: 400 µs; Dimensions (W x H x D): 24.6 mm x 82.5 mm x 53.3 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); IP69 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 80 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression

Weight

0.08 kg

Dimensions

24.6 x 82.5 x 53.3
