1219276

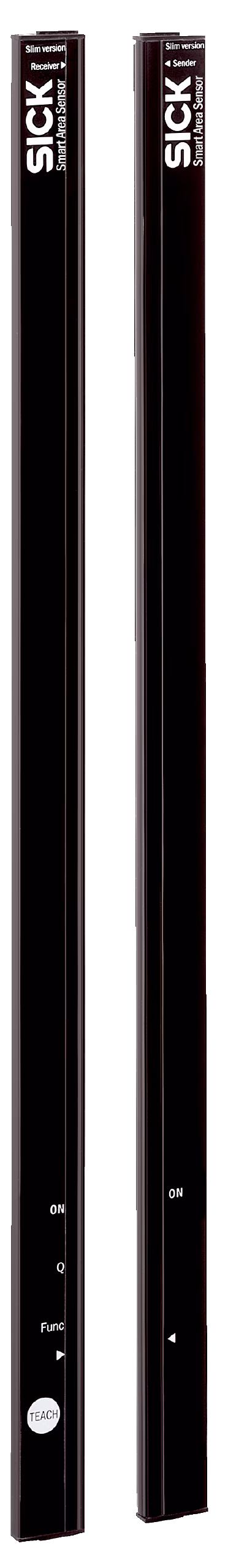

SICK 1219276 / SAS4-S060N3PS1W07 is an automation light grid in the SLG family. Optical light exit: Slim; Aluminum stabilizer: Without stabilizer; Parameterization: None; Beam separation: 40 mm; Cross beam/parallel beam: Cross beam active; Operating range: 3 m; Detection height: 600 mm; Response time: 57 ms.

Manufacturer

Sick

Part number

1219276

Product family

SLG

Category

Automation light grids

Technical details

Sensor principle: Sender/receiver; Operating range: 3 m; Minimum detectable object (MDO): Cross beam, 25 mm; Beam separation: 40 mm; Number of beams: 16; Detection height: 600 mm; Supply voltage Vs: DC24 V, ± 20 %; Switching output: NPN; Response time: Cross beam, 57 ms; Dimensions (W x H x D): 25 mm x 672.4 mm x 8.2 mm; Connection type: Cable with M8 male connector, 4-pin; Enclosure rating: IP65; Housing material: PMMA; Ambient operating temperature: –25 °C... +55 °C

Weight

0.08 kg

Dimensions

25 x 672.4 x 8.2
