1133519

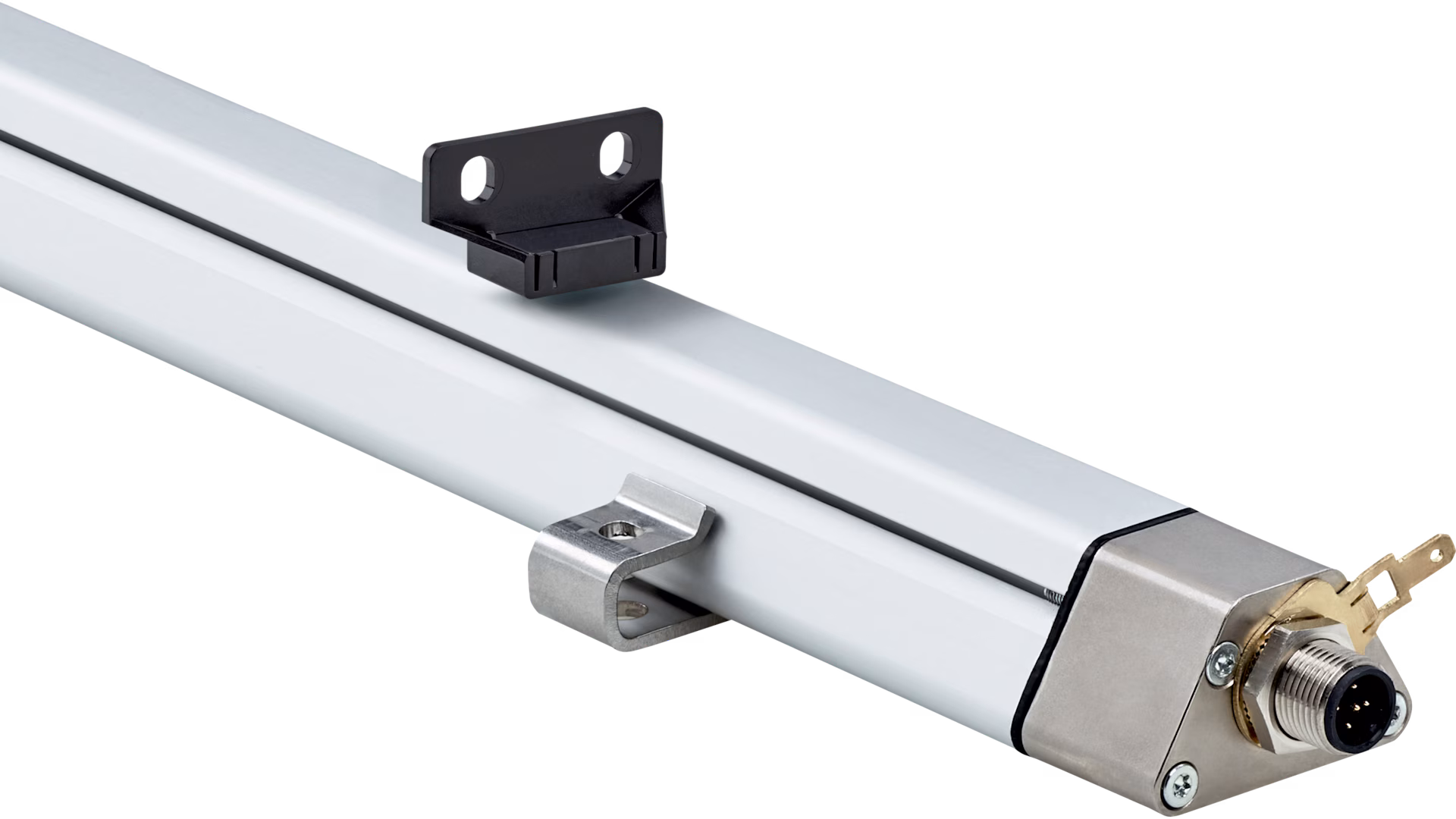

SICK 1133519 / DAXLAN-0800BA080000W01 is a linear encoder in the DAX family. Design: DAX Low Profile; Communication interface: - / Current; Current output: 4 mA... 20 mA; Connection type: Male connector, M12, 8-pin; Measurement range: 0 mm... 800 mm; Supply voltage: 24 V DC (± 20%); Sequence of signals: Signal 1: rising, signal 2: falling; Unusable range (zero zone/damping zone): 55 mm / 63 mm; Magnet type: Small block magnet MAG-B-180-01.

Manufacturer

Sick

Part number

1133519

Product family

DAX

Category

Linear encoders

Technical details

Supply voltage: 24 V DC (± 20%); Communication interface: -; Communication Interface detail: Current; Repeatability: ≤ ± 20 µm; Dimensions of magnet: 11 mm x 33 mm x 18 mm; Connection type: Male connector, M12, 8-pin; Enclosure rating: IP65, IP67; MTTFD (mean time to dangerous failure): 123 years; Linearity: ≤ 0.03% F.S. (Minimum 90 µm); Measured values: Positioning; Measuring range: 0 mm... 800 mm; Unusable range: Null zone 55 mm; Damping zone: 63 mm; Magnet type: Magnet shape Small block magnet MAG-B-180-01

Dimensions

11 x 33 x 18
