1129088

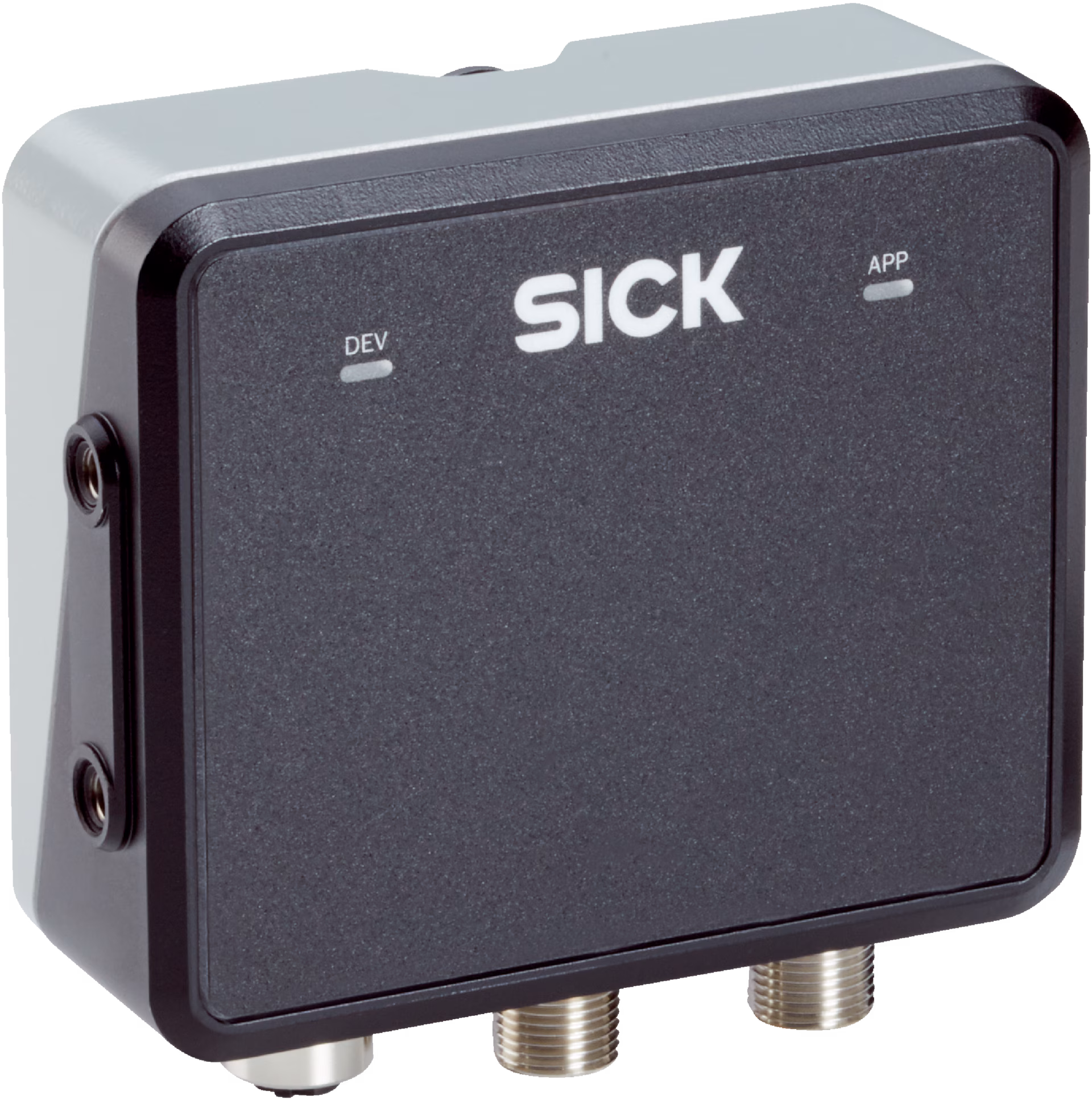

SICK 1129088 / RMS2831C-636111 is an archive in the RMS family. Radar sensors; Radio approval: European Union, United Kingdom, Australia, Turkey, India, South Africa, The Philippines, United Arab Emirates, Korea, Egypt, Saudi Arabia, Singapore, Malaysia, Vietnam; Frequency band: 61 GHz... 61.5 GHz; Working range: 1.6 m... 200 m; Enclosure rating: IP67, IP69; Communication interface: Ethernet.

Manufacturer

Sick

Part number

1129088

Product family

RMS

Category

Archive

Technical details

Working range: 1.6 m... 200 m; Angular resolution (azimuth): 15°; Distance resolution: 1.6 m; Speed resolution: 0.625 m/s; Supply voltage: 9 V DC... 32 V DC; Angular accuracy (azimuth): 1.5°; Distance accuracy: 1 m² RCS to 20 m 0.16 m; Speed accuracy: 1 m² RCS to 20 m 0.0625 m/s; Dimensions (L x W x H): 34 mm x 97 mm x 96 mm; Connection type: 1 x M12 male connector, 8-pin, A-coded; 1 x male connector M12, 5-pin, A-coded; 1 x M12 female connector, 4-pin, D-coded; Enclosure rating: IP67; IP69; Ambient operating temperature: –40 °C... +65 °C; Weight: 300 g; Application: Outdoor, Indoor

Weight

0.3 kg

Dimensions

34 x 97 x 96
