1125296

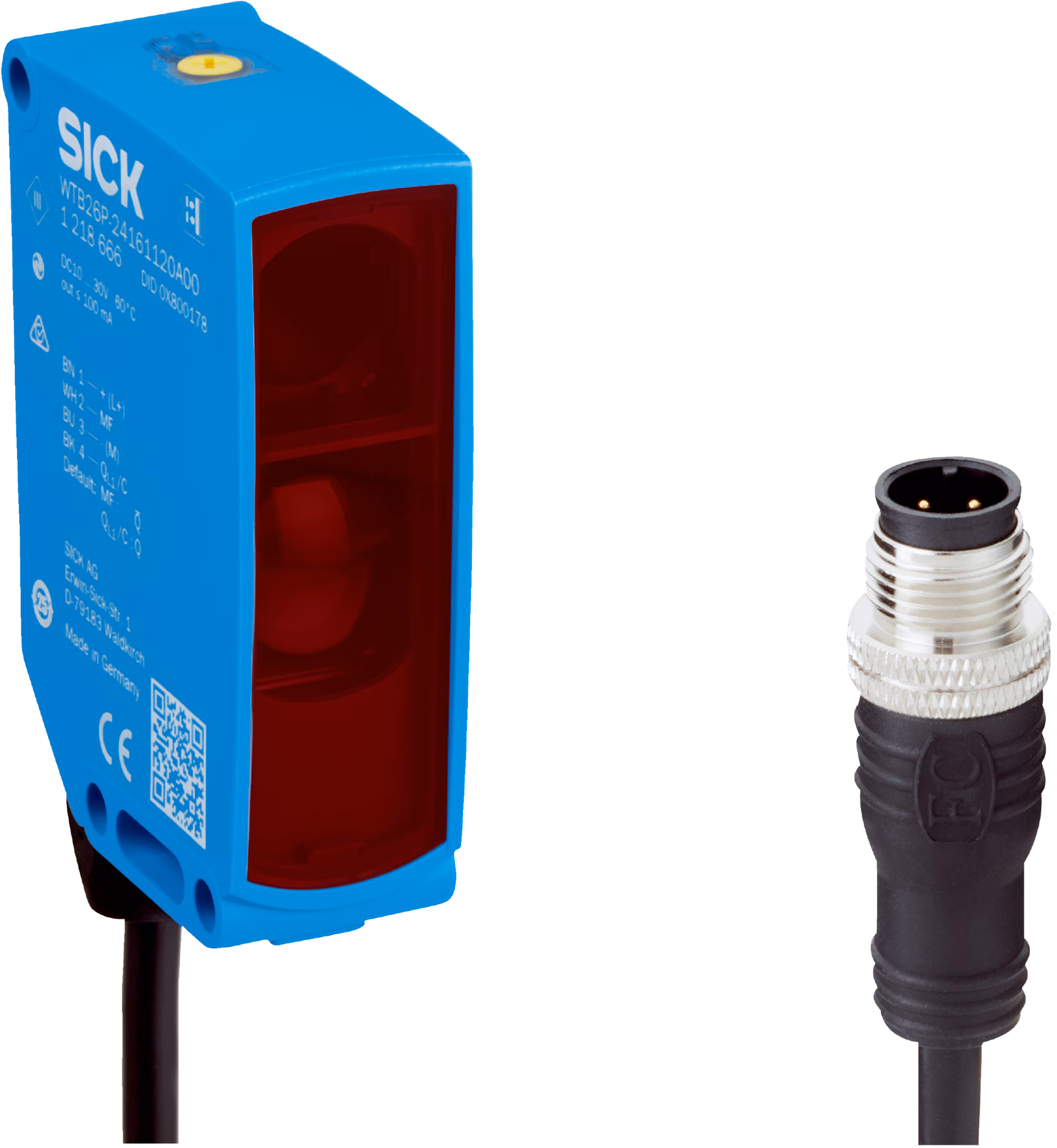

SICK 1125296 / WTB26P-34161420A00 is a photoelectric sensor in the W26 family. Sensing range min. / max.: 30 mm / 3,000 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: Push-pull: PNP/NPN; Switching mode: Light/dark switching; Connection type: Cable with plug, M12, 4-pin, 318 mm; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adjustment; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, Smart Task; Smart Task name: Base logics; Housing: Rectangular.

Manufacturer

Sick

Part number

1125296

Product family

W26

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 30 mm; Sensing range max.: 3,000 mm; Minimum distance between set sensing range and background (black 6% / white 90%): 120 mm, at a distance of 800 mm; Recommended sensing range for the best performance: 200 mm... 800 mm; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent and short-circuit protected Response time: ≤ 2.5 ms; Repeatability (response time): 150 µs; Response time: SIO Logic: 2,5 ms; IOL: 2,5 ms; Repeatability: SIO Logic: 300 µs; IOL: 400 µs; Dimensions (W x H x D): 24.6 mm x 82.5 mm x 53.3 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); IP69 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 140 g

Weight

0.14 kg

Dimensions

24.6 x 82.5 x 53.3

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
