1124948

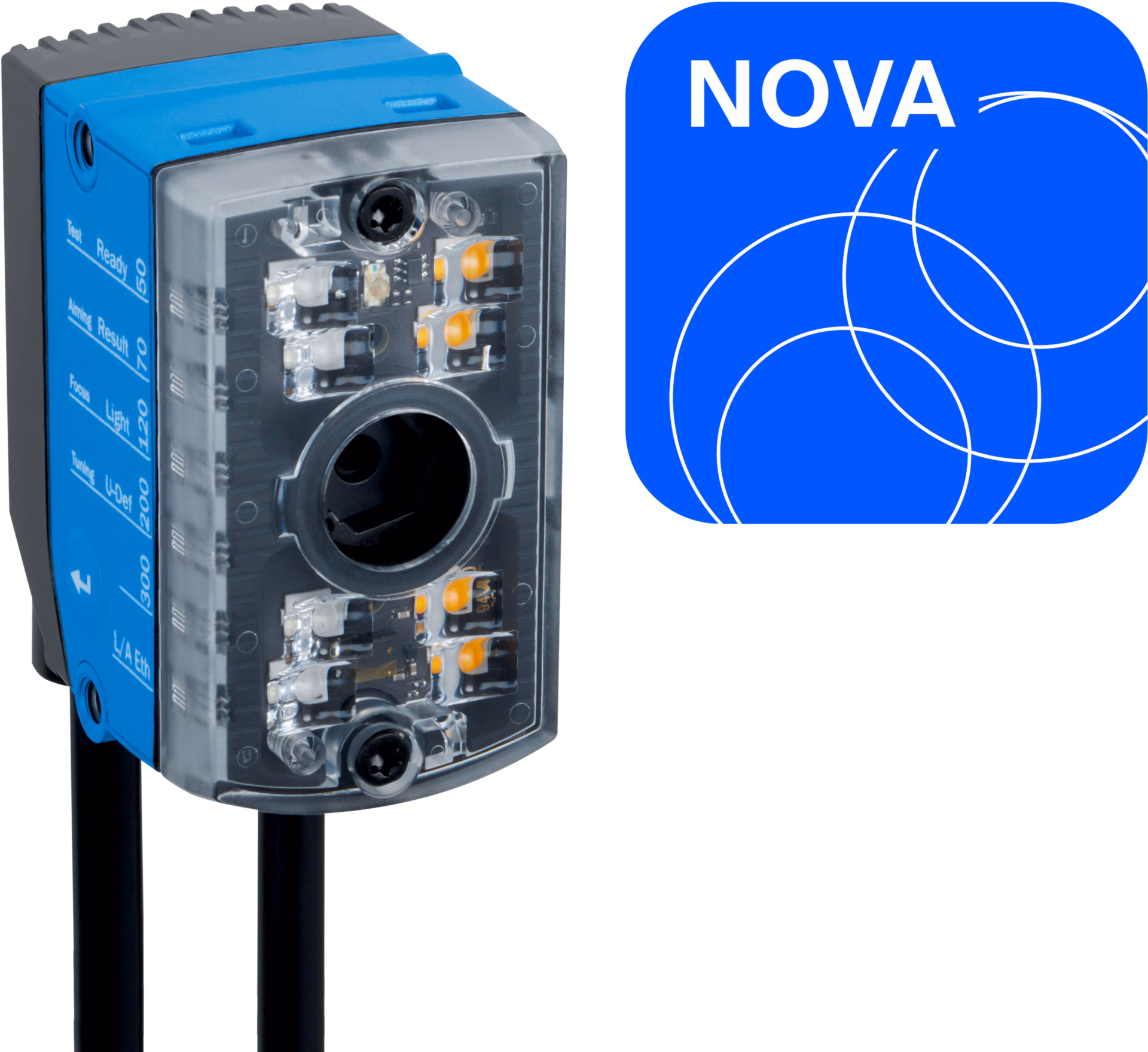

SICK 1124948 / V2D611P-MMSBI4 is a machine vision in the InspectorP61x family. License included: Quality Inspection License; Illumination: Integrated; Illumination color: Amber, Blue; Lens: 6 mm; Working distance: 50 mm... 300 mm; Sensor resolution: 1,280 px x 960 px (1.2 MP); Sensor: CMOS monochrome; Optical focus: Adjustable focus.

Manufacturer

Sick

Part number

1124948

Product family

InspectorP61x

Category

Machine vision

Technical details

Working range: 50 mm... 300 mm, with internal illumination, can be extended to longer distances when using external illumination; Supply voltage: 12 V DC... 24 V DC, ± 15 %; Operator interfaces: Web server; Dimensions (L x W x H): 50 mm x 40.3 mm x 29.6 mm; Connection type: 1 x M12, 17-pin male connector (serial, I/Os, voltage supply); 1 x M12, 4-pin female connector (Ethernet); Enclosure rating: IP54 (EN 60529, EN 60529/A2); Housing material: Zinc diecast; Ambient operating temperature: 0 °C... +40 °C; Weight: 165 g; Technology: 2D snapshot; Programmable: ✔; Configurable: ✔; Application software: Nova Inspector; License included: Quality Inspection License; Optional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset.

Weight

0.165 kg

Dimensions

50 x 40.3 x 29.6

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
