1122104

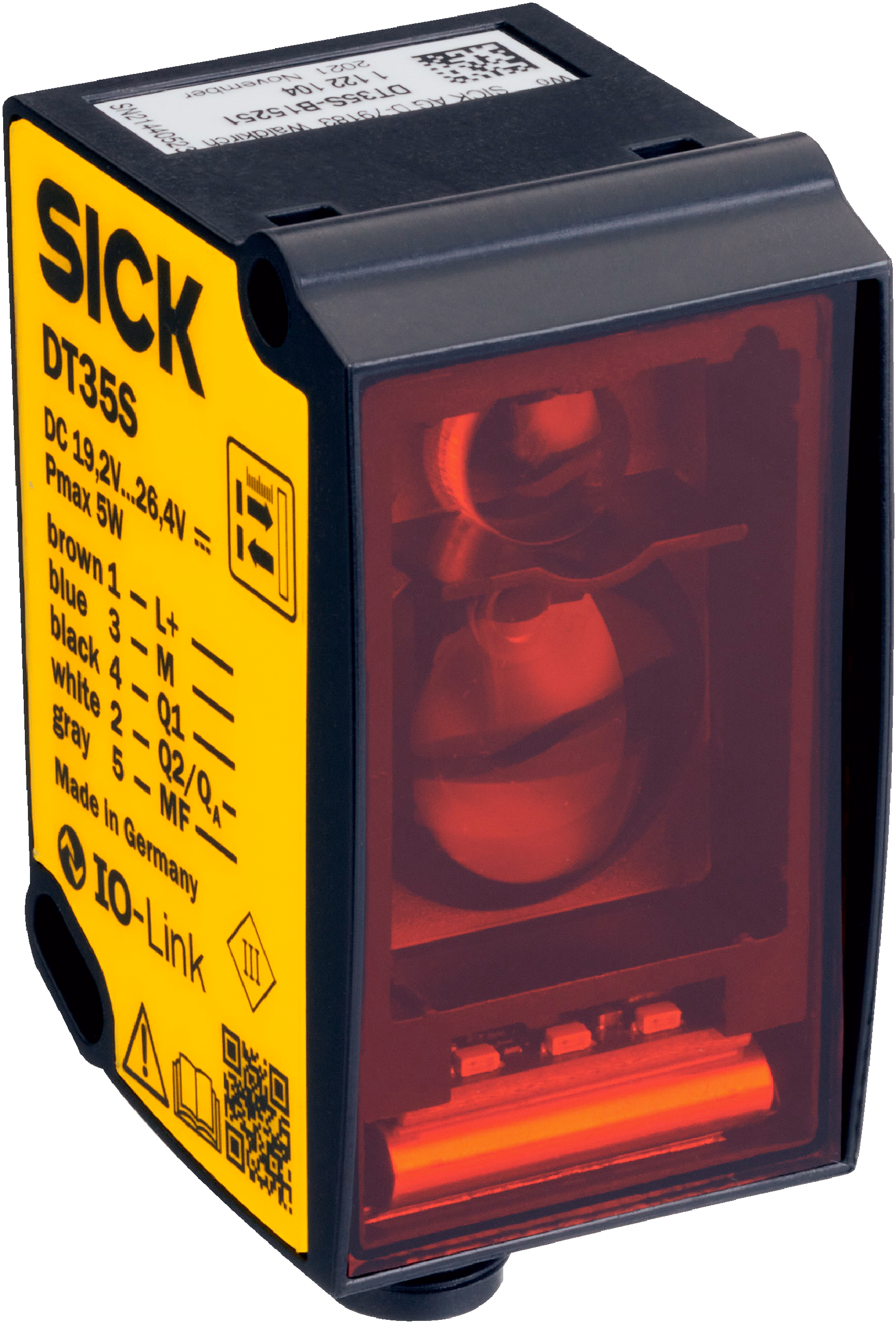

SICK 1122104 / DT35S-B15251 is a safety distance sensor in the DT35-S family. Laser distance sensors; Dx35; Communication interface: IO-Link; Laser class: 2; Light source: Laser, red; Minimum response time: 15 ms; Digital output: 1... 2 x push-pull: PNP/NPN; Type of analog output: Current output; Multifunctional input (MF): 1 x, Voltage level MF input active: High ≥ 14 V (applies only in the specified supply voltage range), Voltage level MF input inactive: Low ≤ 5 V (applies only in the specified supply voltage range).

Manufacturer

Sick

Part number

1122104

Product family

DT35-S

Category

Safety distance sensors

Technical details

Type of light: Visible red light; Resolution: 1 mm; Supply voltage UB: DC 19.2 V... 26.4 V; Interface for parametrization: SOPAS ET; Response time: 15 ms... 50 ms; Dimensions (W x H x D): 32 mm x 58.67 mm x 42.7 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP67; Housing material: Plastic (ABS/PC); Weight: 65 g; Safety-related measuring range: 50 mm... 8,500 mm, 90% remission factor; 50 mm... 4,500 mm, 20% reflection factor; 50 mm... 3,000 mm, 10% reflection factor; 50 mm... 2,000 mm, 6% remission factor; Target: Natural objects; Systematic error: < 25 mm; Statistical error: < 25 mm

Weight

0.065 kg

Dimensions

32 x 58.67 x 42.7
