1119993

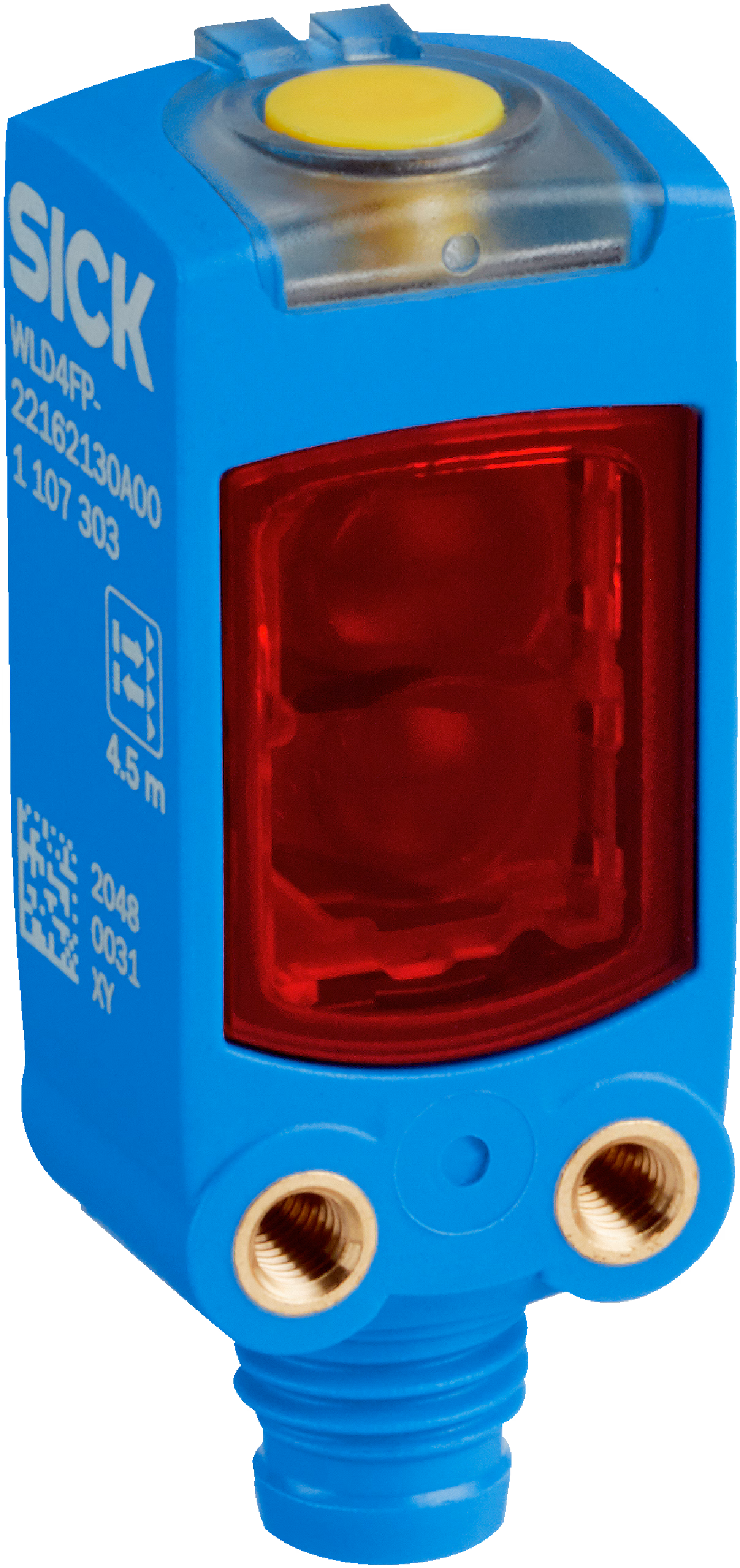

SICK 1119993 / WLD4FP-2216A130A00 is a photoelectric sensor in the W4 family. Sensing range min. / max.: 0 mm / 4.5 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: Push-pull: PNP/NPN; Switching mode: Dark switching; Connection type: Male connector M8, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: Teach-in button, IO-Link; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task; Smart Task name: Base logics; Special features: Pin2 pre-setting (MF): not active; Housing: Rectangular.

Manufacturer

Sick

Part number

1119993

Product family

W4

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 0 mm; Sensing range max.: 4.5 m; Recommended sensing range for the best performance: 0.035 m... 3.9 m; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent protected Short-circuit protected Response time: ≤ 500 µs; Repeatability (response time): 150 µs; Response time: SIO Logic: 600 µs; IOL: 650 µs; Repeatability: SIO Logic: 200 µs; IOL: 250 µs; Dimensions (W x H x D): 16 mm x 40.1 mm x 12.1 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 30 g; Functional principle: Photoelectric retro-reflective sensor

Weight

0.03 kg

Dimensions

16 x 40.1 x 12.1
