1118144

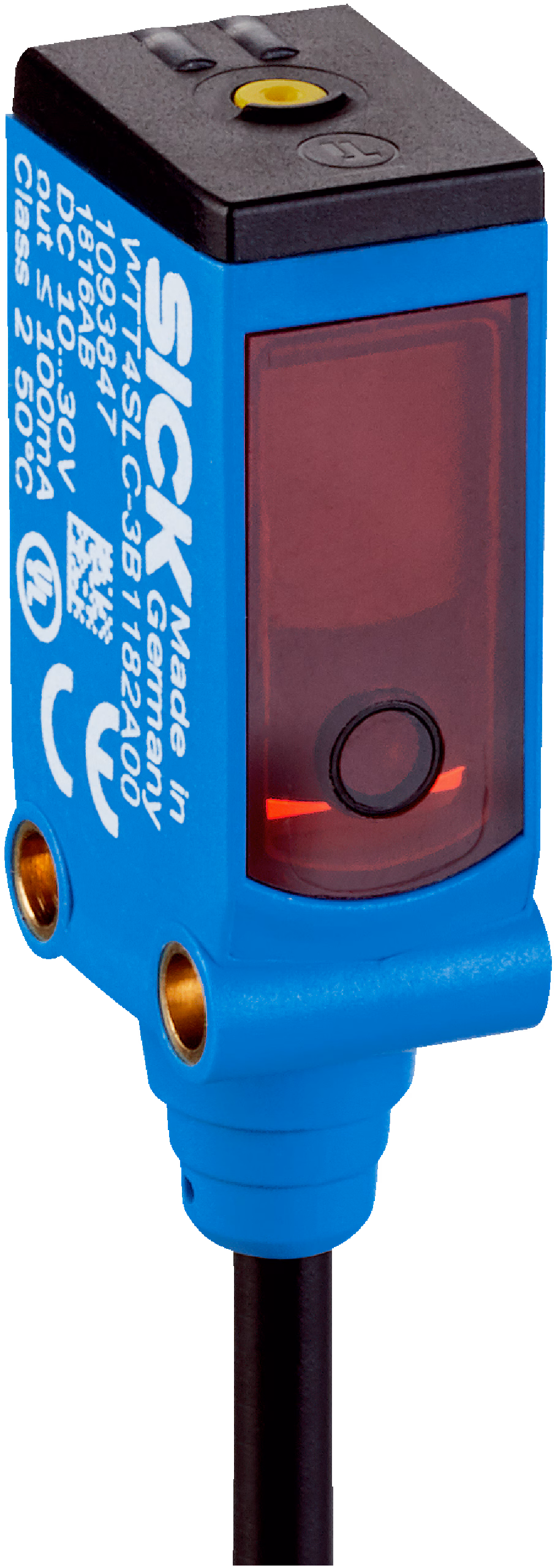

SICK 1118144 / WTT4SLC-3B0062B03 is a laser distance sensor in the WTT4 PowerProx family. Product version: PowerProx Mini Distance; Sensing range max.: 50 mm... 1,300 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression, Optical time-of-flight, distance value; Switching output: Push-pull: PNP/NPN; Switching mode: Light/dark switching; Connection type: Cable with M12 plug, 4-pin, 1,547 mm; Communication interface: IO-Link; Smart Sensor: Enhanced Sensing, efficient communication, Smart Task; Smart Task name: Base logics.

Manufacturer

Sick

Part number

1118144

Product family

WTT4 PowerProx

Category

Laser distance sensors

Technical details

Type of light: Visible red light; Sensing range max.: 50 mm... 1,300 mm; Sensing range: 100 mm... 1,300 mm; Resolution: 1,000 µm; Supply voltage UB: 10 V DC... 30 V DC; Communication interface: IO-Link V1.1; Communication Interface detail: COM3 (230,4 kBaud); Switching output: Push-pull: PNP/NPN; Repeatability: 4,5 mm... 11 mm; Accuracy: - 10 mm, + 80 mm; Response time: ≤ 5 ms; Dimensions (W x H x D): 12.2 mm x 41.8 mm x 17.3 mm; Connection type: Cable with M12 plug, 4-pin, 1,547 mm; Connection type Detail: Cable diameter Ø 3.4 mm

Weight

0.01 kg

Dimensions

12.2 x 41.8 x 17.3
