1116537

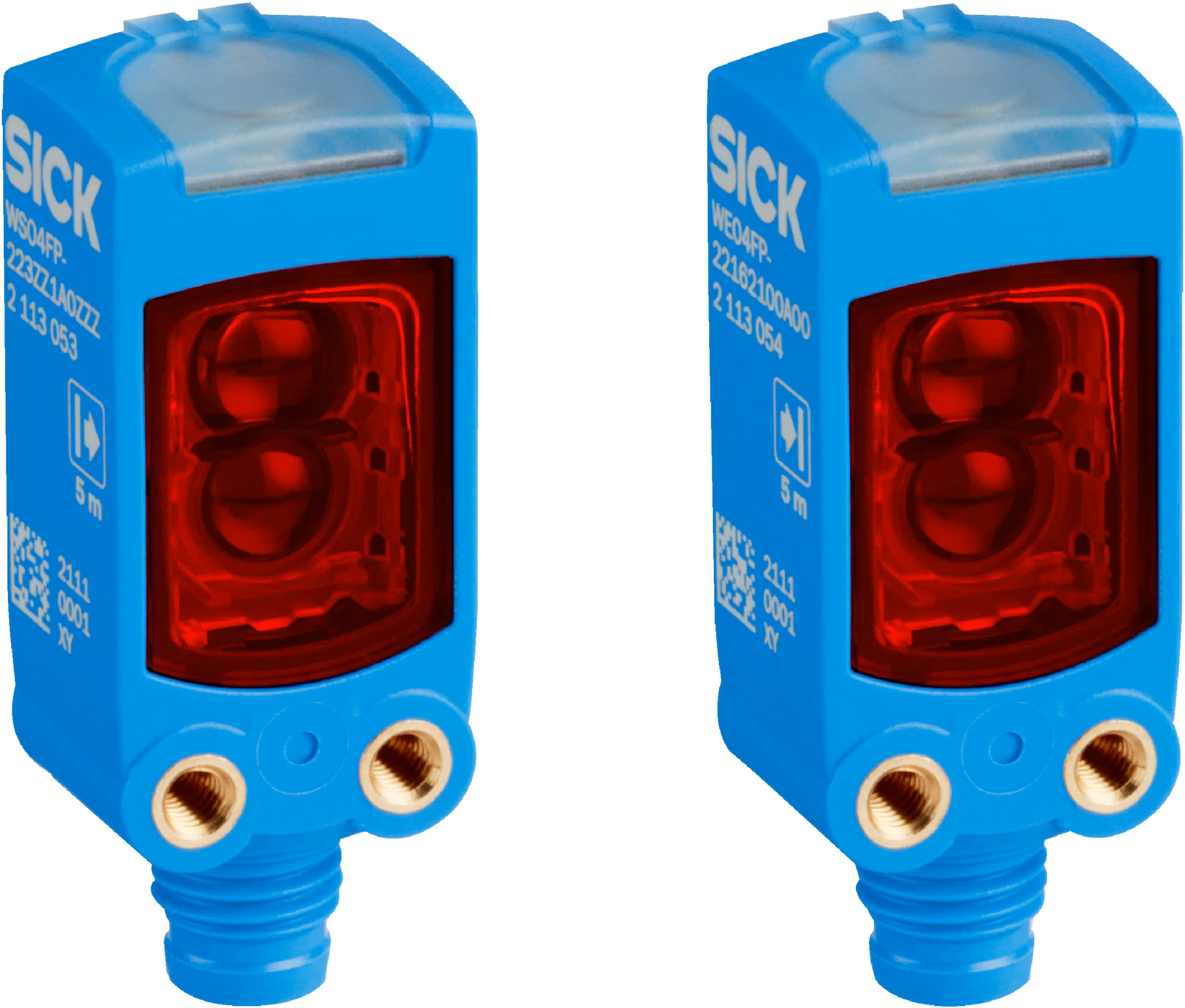

SICK 1116537 / WSE4FP-22162100A00 is a photoelectric sensor in the W4 family. Sensing range min. / max.: 0 m / 10 m; Functional principle: Through-beam photoelectric sensor; Switching output: Push-pull: PNP/NPN; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: IO-Link; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task; Smart Task name: Base logics; Housing: Rectangular.

Manufacturer

Sick

Part number

1116537

Product family

W4

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 0 m; Sensing range max.: 10 m; Recommended sensing range for the best performance: 0 m... 7.5 m; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent protected Short-circuit protected Response time: ≤ 500 µs; Response time: SIO Logic: 600 µs; IOL: 650 µs; Repeatability: SIO Logic: 200 µs; IOL: 250 µs; Dimensions (W x H x D): 16 mm x 40.1 mm x 12.1 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 30 g; Functional principle: Through-beam photoelectric sensor; Maximum distance range from receiver to sender (operating reserve 1): 0 m... 10 m

Weight

0.03 kg

Dimensions

16 x 40.1 x 12.1
