1115702

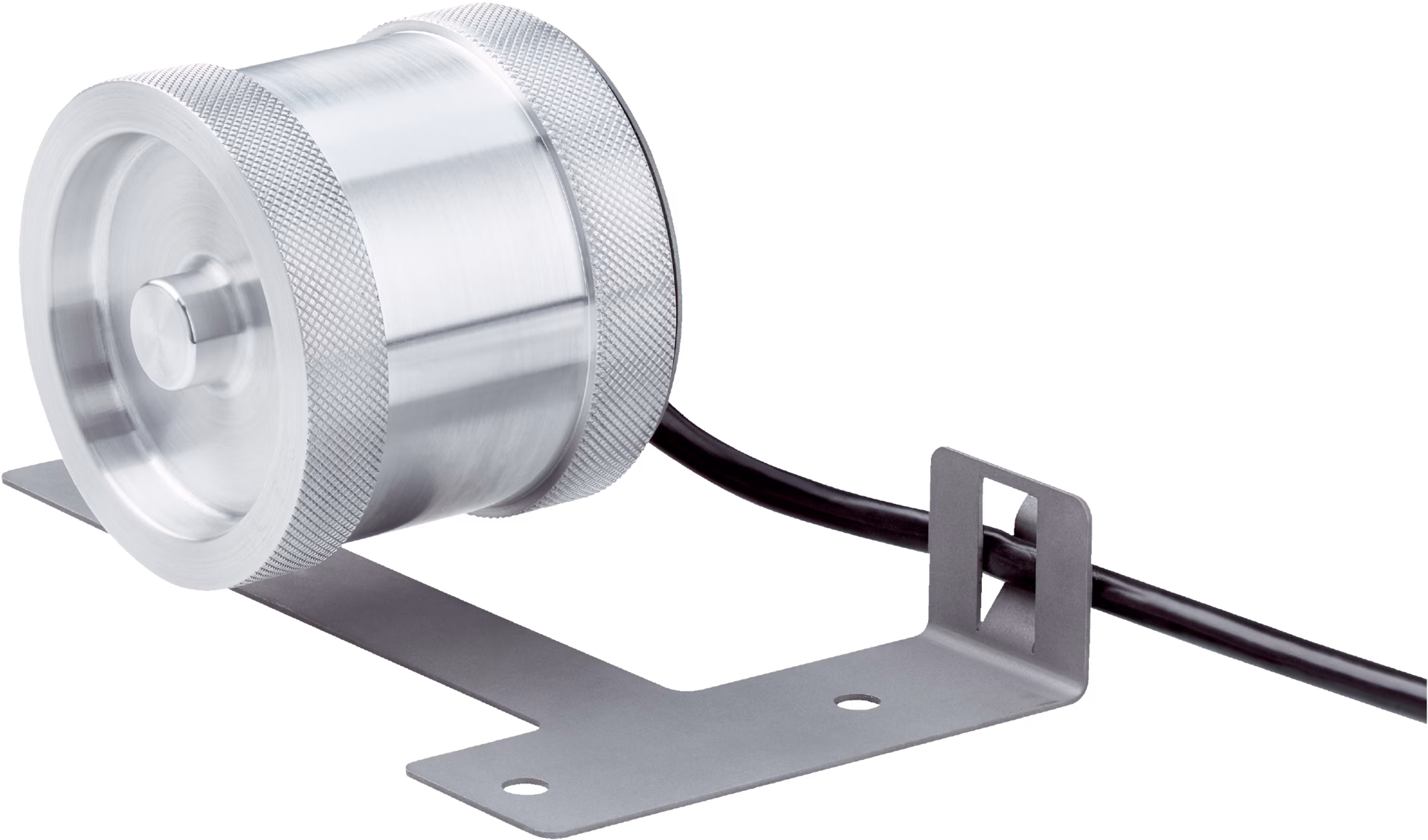

SICK 1115702 / DKV60E-21EKA0020 is an archive in the DKV60 family. Measuring wheel encoders; Measuring wheel circumference: 200 mm; Measuring wheel surface: Cross knurled aluminium; Communication interface: 10 V... 30 V, Incremental, HTL, Push pull; Supply voltage: 10 V... 30 V; Mounted encoder: DBS50 Core, DBS50E-SKEKA0020; Connection type: Cable, 8-wire, universal, 1.5 m; Resolution in pulses/mm: 0.1; Spring arm design: 69.5 mm spring arm.

Manufacturer

Sick

Part number

1115702

Product family

DKV60

Category

Archive

Technical details

Resolution in pulses/mm: 0.1; Measuring increment (resolution in mm/pulse): 10; Supply voltage: 10 V... 30 V; Communication interface: Incremental; Communication Interface detail: HTL / Push pull; Connection type: Cable, 8-wire, universal, 1.5 m; Enclosure rating: IP65; Pulses per revolution: 20; Measuring step deviation: ± 18°, / pulses per revolution; Error limits: ± 0.5 mm/m, subject to the measuring wheel (wheel + surface); Duty cycle: ≤ 0.5 ± 5 %; Initialization time: ≤ 3 ms; Number of signal channels: 6-channel; Operating power consumption (no load): 50 mA
