1115584

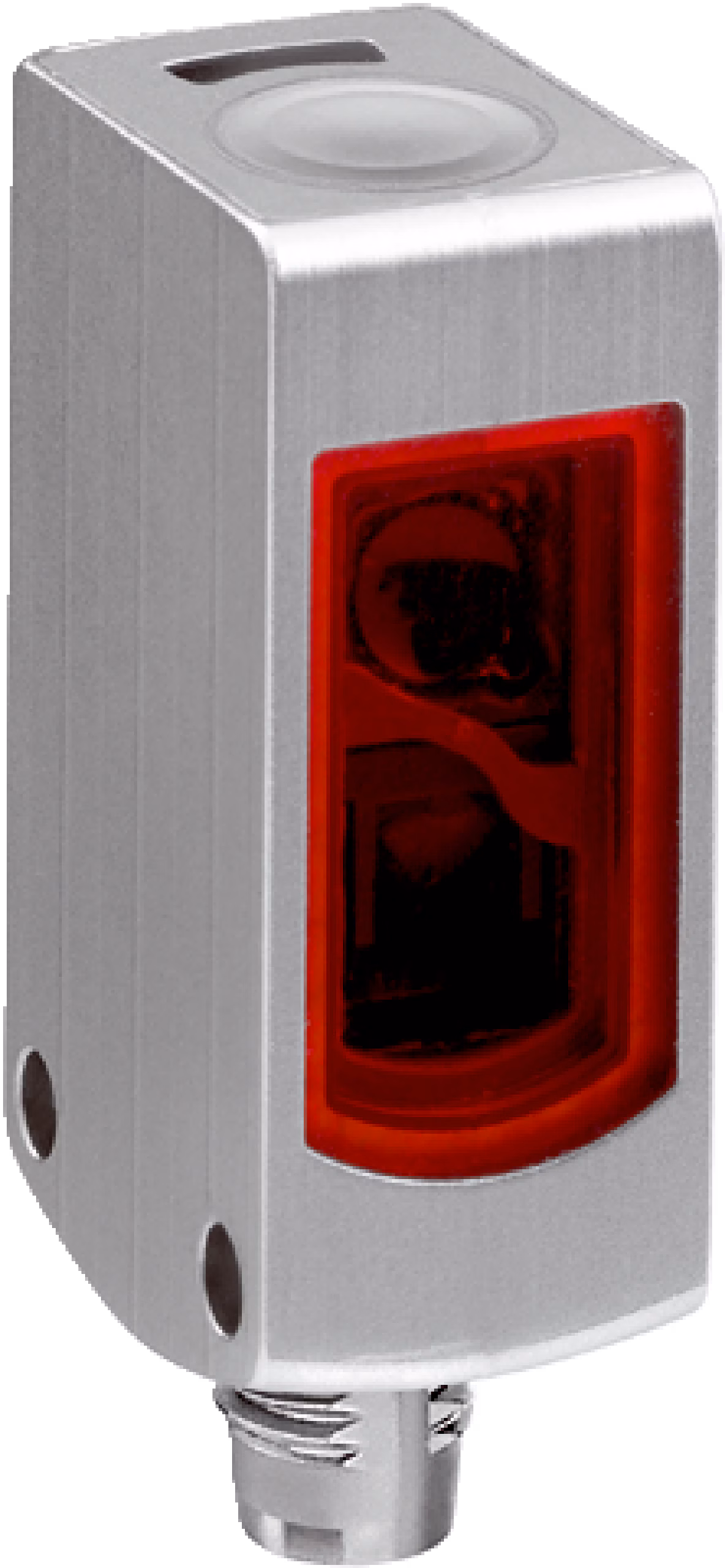

SICK 1115584 / WTB4SC-3P2262VB01 is a photoelectric sensor in the W4 family. Sensing range max.: 4 mm... 500 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: Stainless steel V4A (1.4404, 316L); Adjustment: Teach-in button, IO-Link; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, Smart Task; Smart Task name: Base logics; Housing: Rectangular.

Manufacturer

Sick

Part number

1115584

Product family

W4

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 4 mm... 500 mm; Sensing range: 10 mm... 350 mm; Supply voltage UB: 10 V DC... 30 V DC; Response time: < 0.5 ms; Repeatability (response time): 150 µs; Response time Q/ on Pin 2: 300 µs... 450 µs; Repeatability: SIO Direct: 150 µs; SIO Logic: 150 µs; IOL: 400 µs; Dimensions (W x H x D): 15.25 mm x 44.9 mm x 22.2 mm; Enclosure rating: IP66; IP67; IP68; IP69K; Ambient operating temperature: –30 °C... +70 °C; –30 °C... +60 °C; Weight: 40 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression

Weight

0.04 kg

Dimensions

15.25 x 44.9 x 22.2
