1113180

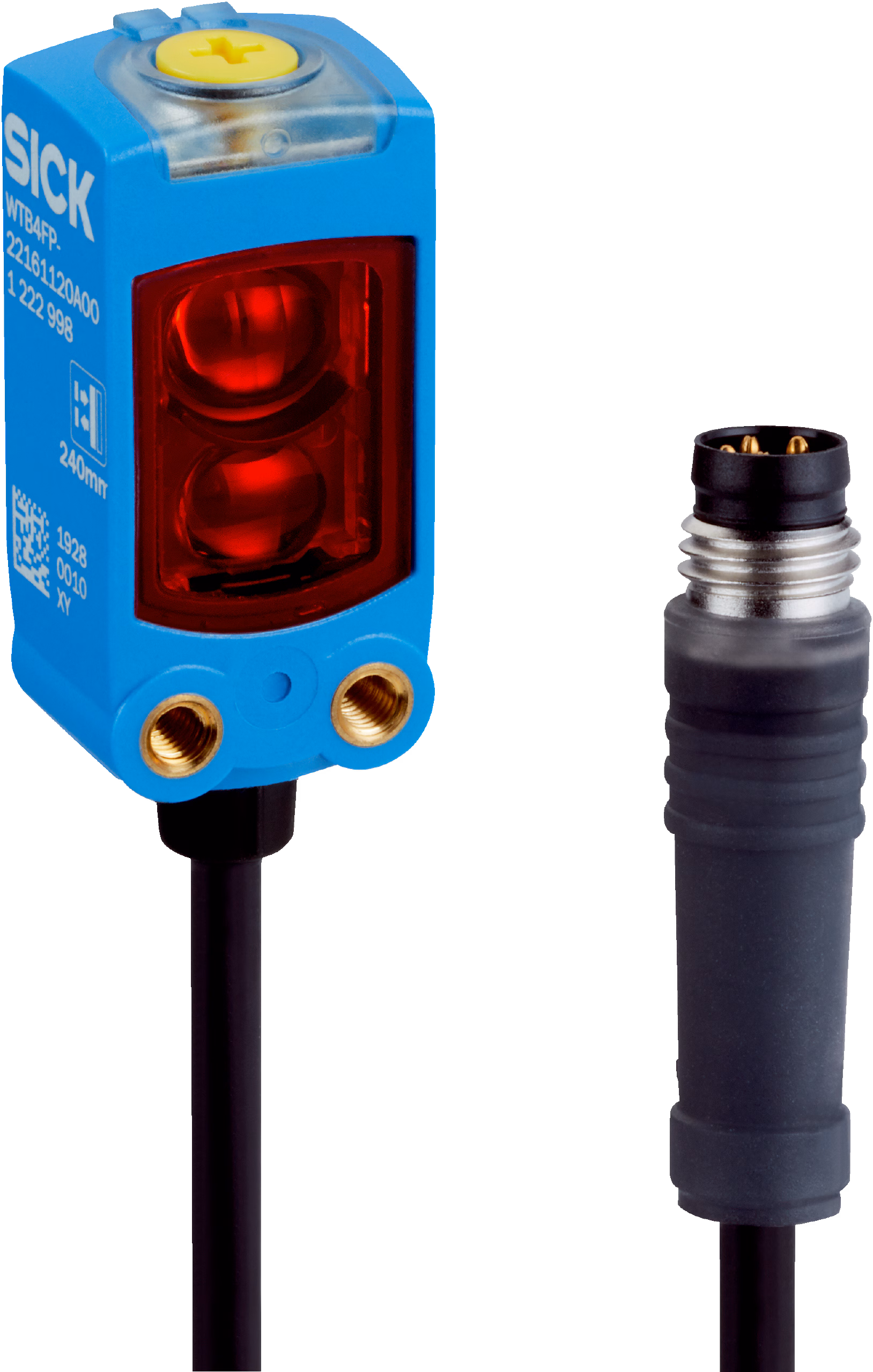

SICK 1113180 / WTB4FT-31311120ZZZ is a photoelectric sensor in the W4 family. Sensing range min. / max.: 7 mm / 120 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression, DoubleLine; Switching output: Push-pull: PNP/NPN; Switching mode: Light switching; Connection type: Cable with connector M8, 3-pin, 110 mm; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment; Housing: Rectangular.

Manufacturer

Sick

Part number

1113180

Product family

W4

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 7 mm; Sensing range max.: 120 mm; Minimum distance between set sensing range and background (black 6% / white 90%): 1 mm, at a distance of 50 mm; Recommended sensing range for the best performance: 30 mm... 80 mm; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent protected Short-circuit protected Response time: ≤ 1,000 µs; Repeatability (response time): 240 µs; Dimensions (W x H x D): 16 mm x 40.1 mm x 12.1 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 30 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression, DoubleLine

Weight

0.03 kg

Dimensions

16 x 40.1 x 12.1
