1111273

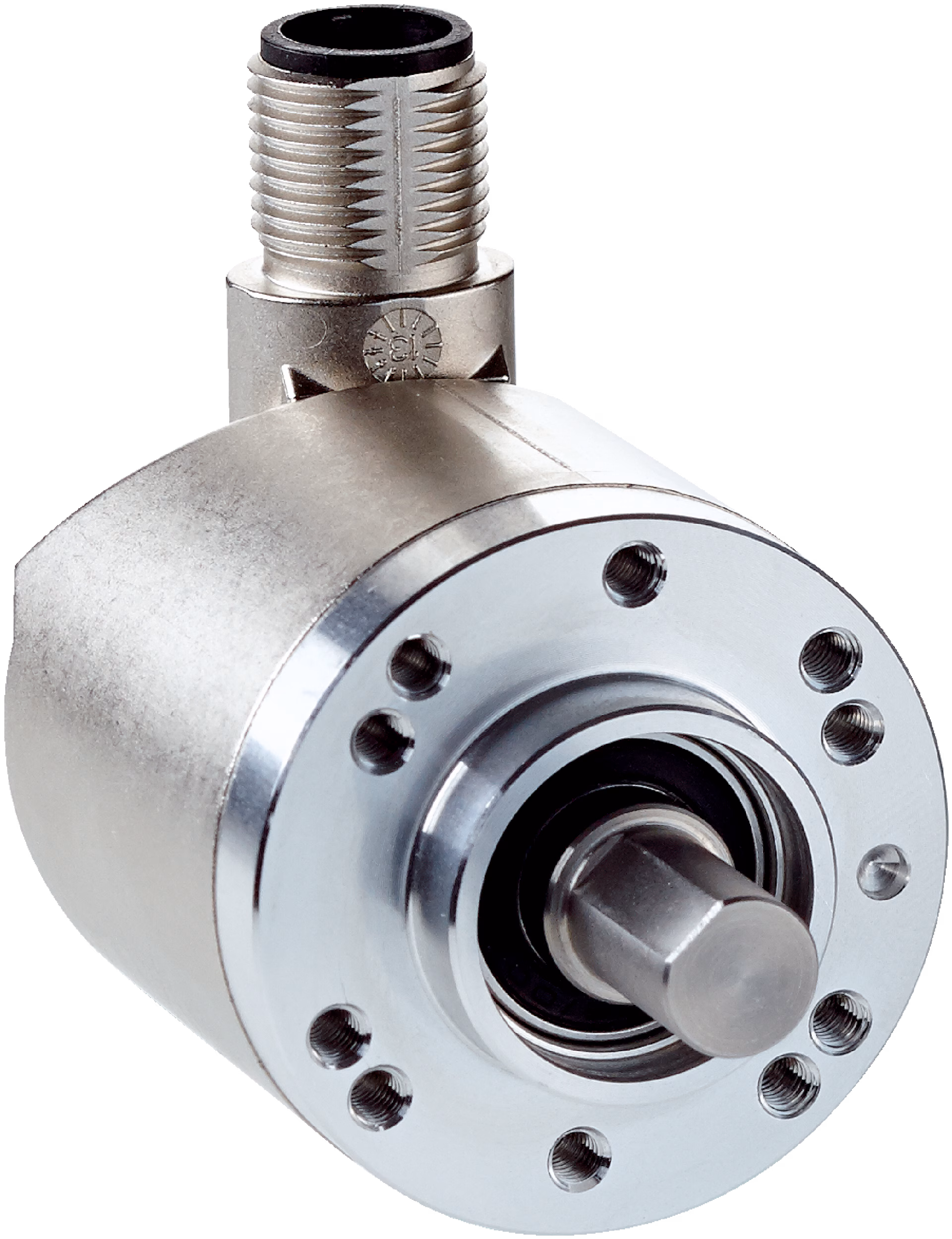

SICK 1111273 / AHM36A-S3ACF00S43 is an absolute encoder in the AHS/AHM36 family. Singleturn or multiturn version: Multiturn; Max. resolution: 13 bit x 12 bit (8,192 x 4,096); Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat); Communication interface: SSI, non programmable; Connection type: Male connector, M12, 8-pin, universal; Specialty: Special firmware version 1.03.

Manufacturer

Sick

Part number

1111273

Product family

AHS/AHM36

Category

Absolute encoders

Technical details

Number of steps per revolution (max. resolution): 8,192 (13 bit); Max. resolution (number of steps per revolution x number of revolutions): 13 bit x 12 bit (8,192 x 4,096); Supply voltage: 4.5... 32 V DC; Communication interface: SSI; Repeatability standard deviation σr: 0.2° (at 20 °C); Connection type: Male connector, M12, 8-pin, universal; Enclosure rating: IP66 (IEC 60529); IP67 (IEC 60529); Housing material: Zinc; Weight: 0.12 kg; Special device: ✔; Specialty: Special firmware version 1.03; Standard reference device: AHM36A-S3AC013x12, 1104567; MTTFD (mean time to dangerous failure): 230 years (EN ISO 13849-1); Number of revolutions: 4,096 (12 bit)

Weight

0.12 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
