1109729

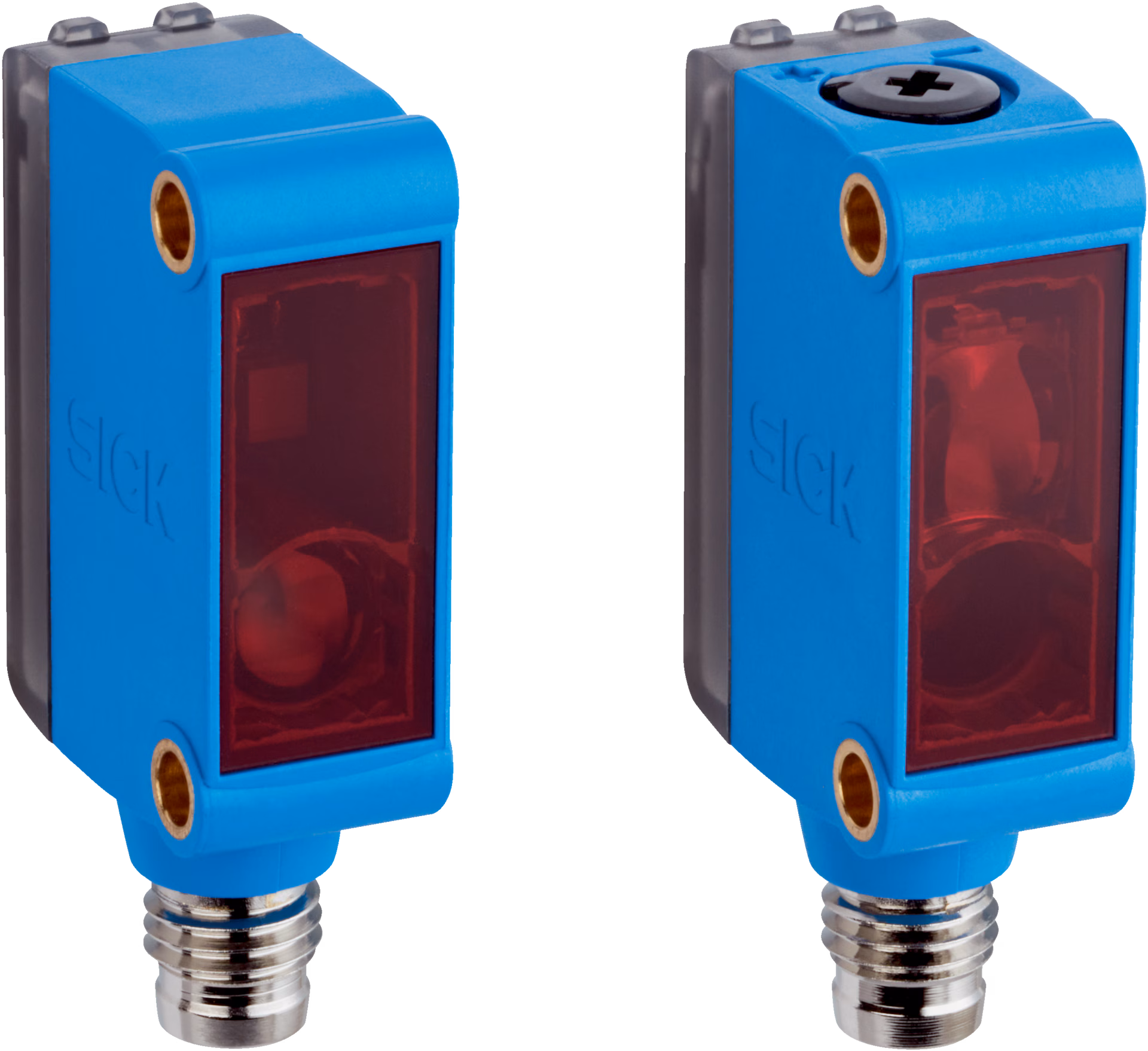

SICK 1109729 / GSE6L-P4211 is a photoelectric sensor in the G6 family. Sensing range min. / max.: 0 m / 40 m; Functional principle: Through-beam photoelectric sensor; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Light source: Laser; Type of light: Visible red light; Laser class: 1; Housing material: ABS; Adjustment: Potentiometer; Housing: Rectangular.

Manufacturer

Sick

Part number

1109729

Product family

G6

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 0 m; Sensing range max.: 40 m; Recommended sensing range for the best performance: 0 m... 30 m; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent protected Short-circuit protected Response time: ≤ 625 µs; Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm; Enclosure rating: IP67 (EN 60529); Ambient operating temperature: –20 °C... +50 °C; Weight: Approx. 60 g; Functional principle: Through-beam photoelectric sensor; Polarisation filter: No; Emitted beam: Light source Laser; Shape of light spot: Point-shaped

Weight

0.06 kg

Dimensions

12 x 31.5 x 21
