1109690

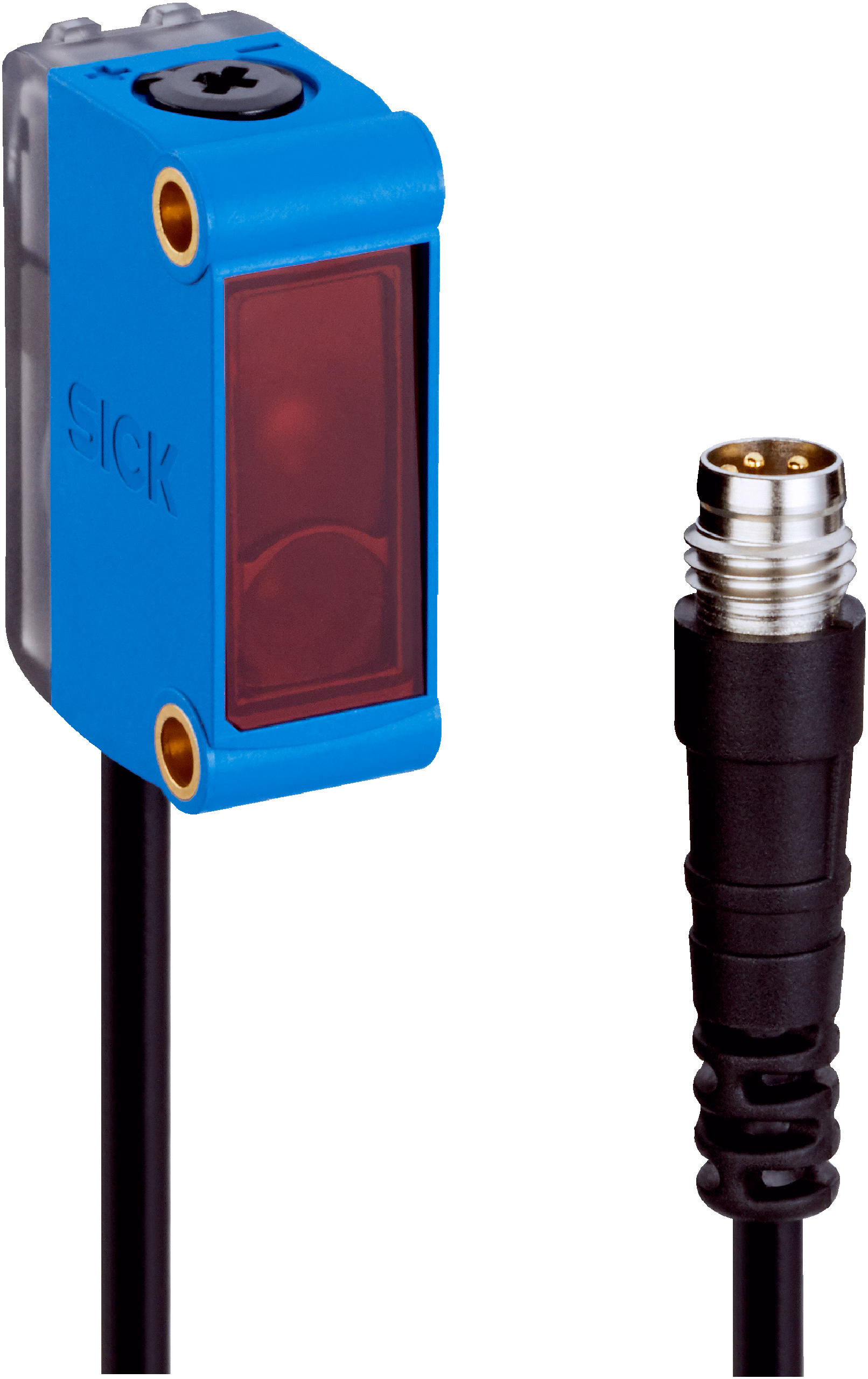

SICK 1109690 / GL6L-P6211 is a photoelectric sensor in the G6 family. Sensing range min. / max.: 0.08 m / 12 m; Functional principle: Photoelectric retro-reflective sensor; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Cable with M8 male connector, 4-pin, 336 mm; Light source: Laser; Type of light: Visible red light; Laser class: 1; Housing material: ABS; Adjustment: Potentiometer; Housing: Rectangular.

Manufacturer

Sick

Part number

1109690

Product family

G6

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 0.08 m; Sensing range max.: 12 m; Recommended sensing range for the best performance: 0.08 m... 4.2 m; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent protected Short-circuit protected Response time: ≤ 625 µs; Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm; Enclosure rating: IP67 (EN 60529); Ambient operating temperature: –20 °C... +50 °C; Weight: Approx. 60 g; Functional principle: Photoelectric retro-reflective sensor; Maximum distance range from reflector to sensor (operating reserve 1): 0.08 m... 12 m; Recommended distance range from reflector to sensor (operating reserve 2): 0.08 m... 10 m; Reference reflector: Reflector P250F

Weight

0.06 kg

Dimensions

12 x 31.5 x 21
