1106555

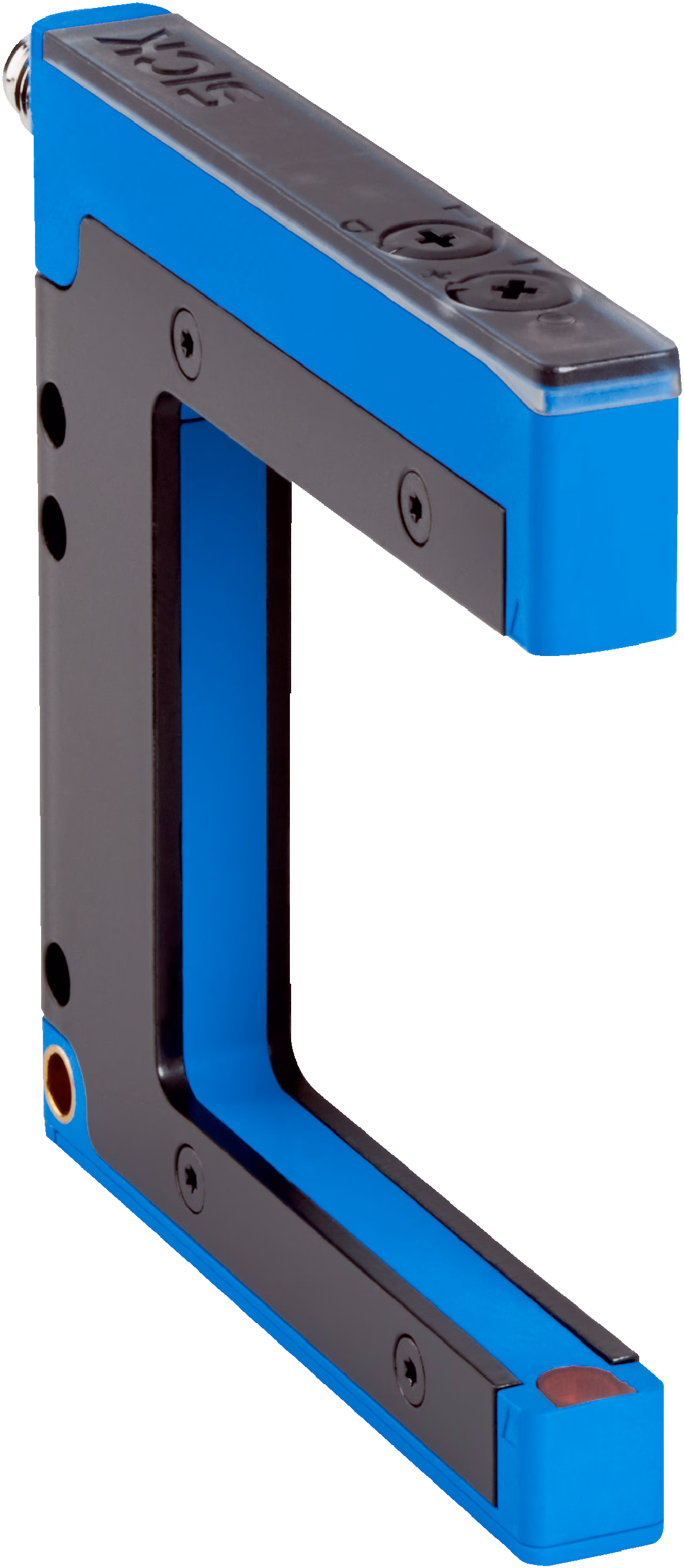

SICK 1106555 / WFE-050060B337 is a fork sensor in the WFE family. Adjustment: Potentiometer, light/dark switching; Light source: LED; Type of light: Visible red light; Fork width/depth: 50 mm, 60 mm; Switching output: Push-pull: PNP/NPN; Switching mode: Light/dark switching; Connection type Detail: Connector M8, 3-pin; Switching frequency: 5 kHz; Response time: ≤ 100 µs; Enclosure rating: IP67.

Manufacturer

Sick

Part number

1106555

Product family

WFE

Category

Fork sensors

Technical details

Minimum detectable object (MDO): 0.5 mm; Supply voltage: 10 V DC... 30 V DC; Switching output: Push-pull: PNP/NPN; Switching output (voltage): Push-pull: PNP/NPN High = UV - < 2 V/Low: ≤ 2 V; Switching output hysteresis: < 0.1 mm; Response time: ≤ 100 µs; Stability of response time: ± 20 µs; Dimensions (W x H x D): 10 mm x 79.3 mm x 78.5 mm; Connection type: Connector M8, 3-pin; Enclosure rating: IP67; Housing material: ABS; Coated carbon steel (frame); Ambient operating temperature: –20 °C... +60 °C; Weight: Approx. 95 g; Fork width: 50 mm

Weight

0.095 kg

Dimensions

10 x 79.3 x 78.5
