1105762

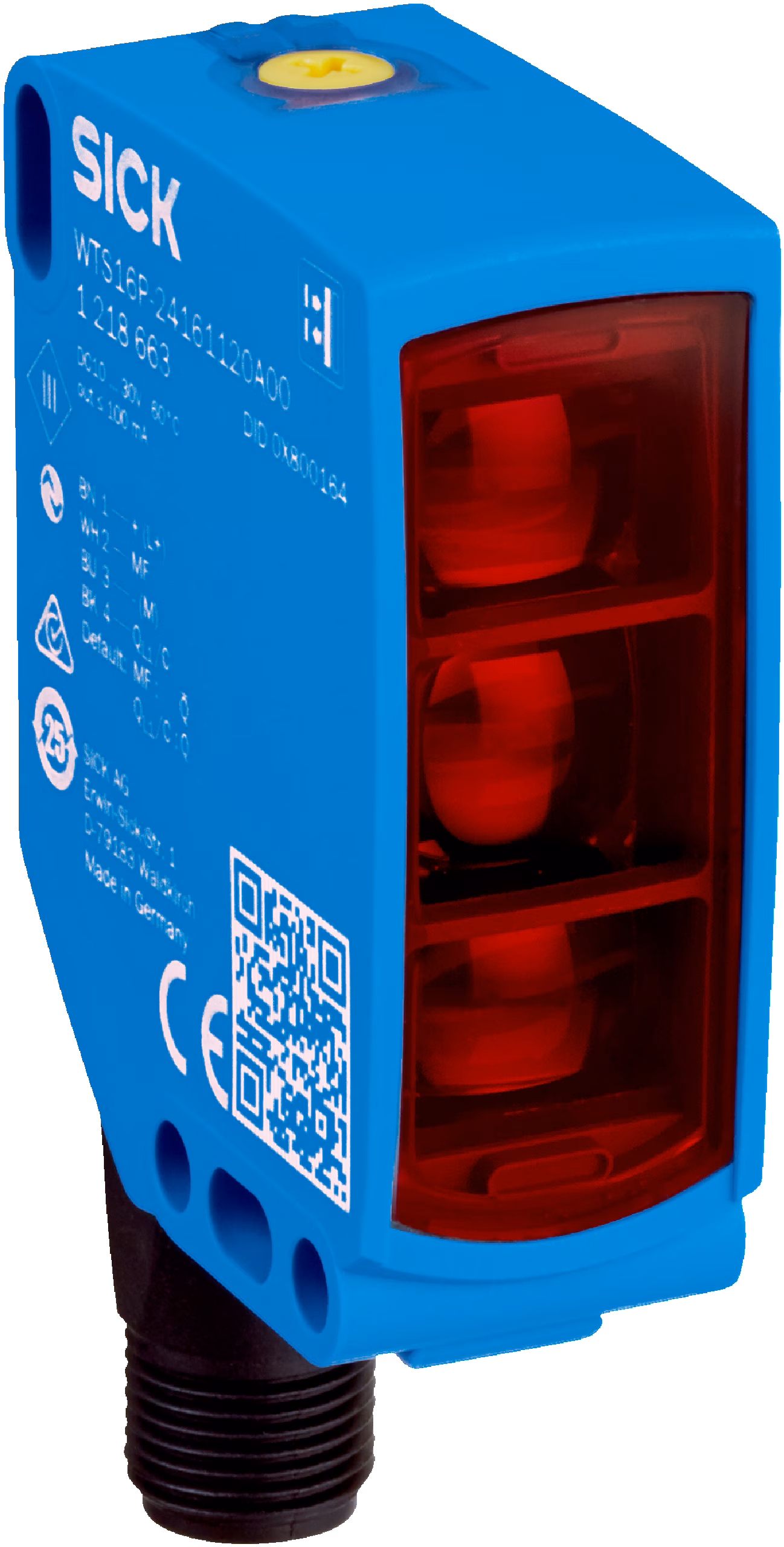

SICK 1105762 / WTS16P-2416N120A00 is an archive in the W16 family. Photoelectric sensors; Sensing range min. / max.: 10 mm / 750 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression, TwinEye technology; Switching output: Push-pull: PNP/NPN; Switching mode: Dark switching; Connection type: Male connector M12, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adjustment; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, Smart Task; Smart Task name: Base logics; Special features: Factory setting: sensing range 350 mm; Housing: Rectangular.

Manufacturer

Sick

Part number

1105762

Product family

W16

Category

Archive

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 10 mm; Sensing range max.: 750 mm; Minimum distance between set sensing range and background (black 6% / white 90%): 20 mm, at a distance of 300 mm; Recommended sensing range for the best performance: 100 mm... 300 mm; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent and short-circuit protected Response time: ≤ 1.4 ms; Repeatability (response time): 750 µs; Response time: SIO Logic: 1.65 ms; IOL: 1.75 ms; Repeatability: SIO Logic: 800 µs; IOL: 900 µs; Dimensions (W x H x D): 20 mm x 55.7 mm x 42 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); IP69 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 50 g

Weight

0.05 kg

Dimensions

20 x 55.7 x 42
