1105505

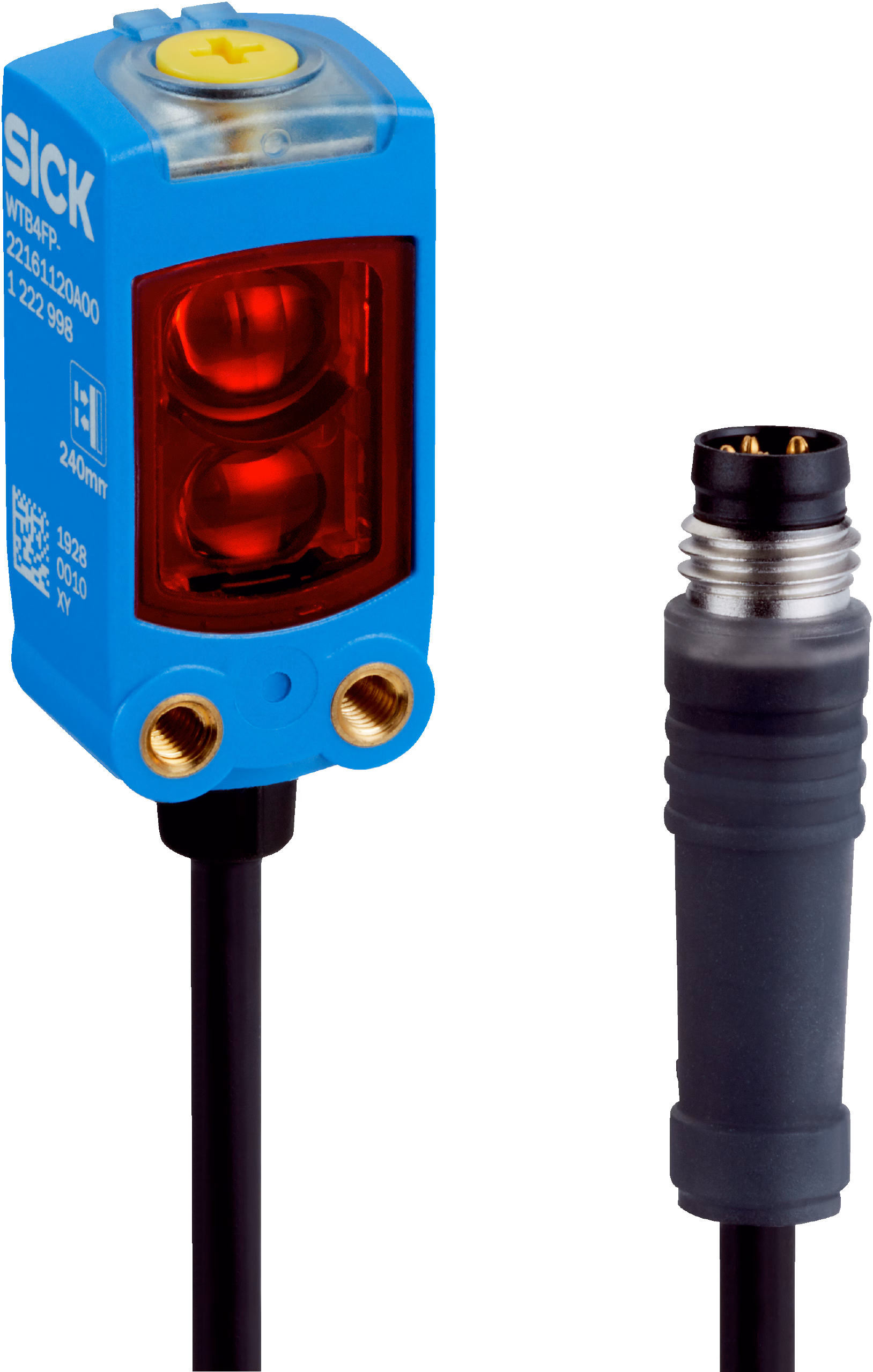

SICK 1105505 / WTB4FP-32161120A00 is a photoelectric sensor in the W4 family. Sensing range min. / max.: 4 mm / 220 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: Push-pull: PNP/NPN; Switching mode: Light/dark switching; Connection type: Cable with M8 male connector, 4-pin, 110 mm; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: Teach-in button, Potentiometer, IO-Link, Teach-Turn adjustment; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task; Smart Task name: Base logics; Housing: Rectangular.

Manufacturer

Sick

Part number

1105505

Product family

W4

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 4 mm; Sensing range max.: 220 mm; Minimum distance between set sensing range and background (black 6% / white 90%): 3 mm, at a distance of 80 mm; Recommended sensing range for the best performance: 40 mm... 140 mm; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent protected Short-circuit protected Response time: ≤ 500 µs; Repeatability (response time): 150 µs; Response time: SIO Logic: 550 µs; IOL: 600 µs; Repeatability: SIO Logic: 200 µs; IOL: 250 µs; Dimensions (W x H x D): 16 mm x 40.1 mm x 12.1 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 30 g

Weight

0.03 kg

Dimensions

16 x 40.1 x 12.1
