1104228

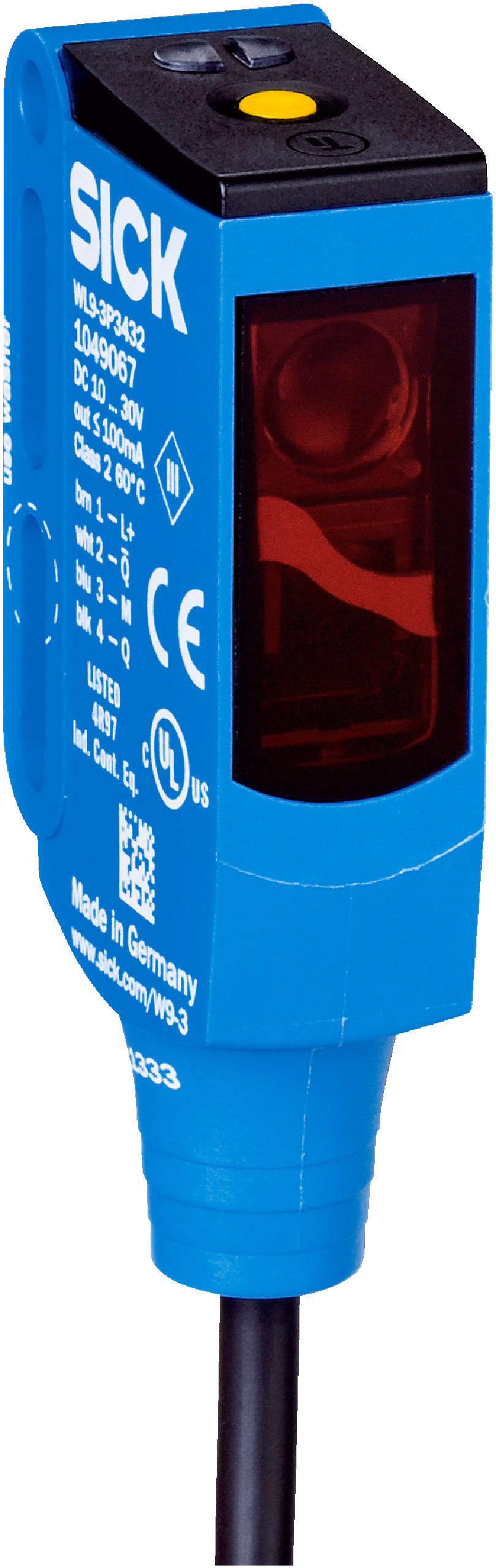

SICK 1104228 / WTB9C-3P1162A00 is a photoelectric sensor in the W9 family. Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Cable, 4-wire, 2 m; Light source: PinPoint LED; Adjustment: IO-Link, Teach-in button; Communication interface: IO-Link; Smart Sensor: Enhanced Sensing, efficient communication, Smart Task; Smart Task name: Base logics.

Manufacturer

Sick

Part number

1104228

Product family

W9

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 20 mm... 350 mm; Sensing range: 20 mm... 200 mm; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP;; Response time: < 0.333 ms; Response time Q/ on Pin 2: 200 µs... 300 µs; Repeatability Q/ on Pin 2:: 100 µs; Repeatability: SIO Direct: 100 µs; SIO Logic: 100 µs; IOL: 350 µs; Dimensions (W x H x D): 12.2 mm x 52.2 mm x 23.6 mm; Connection type: Cable, 4-wire, 2 m; Enclosure rating: IP66; IP67; IP69K; Housing material: Plastic, VISTAL®; Ambient operating temperature: –40 °C... +60 °C

Weight

0.013 kg

Dimensions

12.2 x 52.2 x 23.6
