1103456

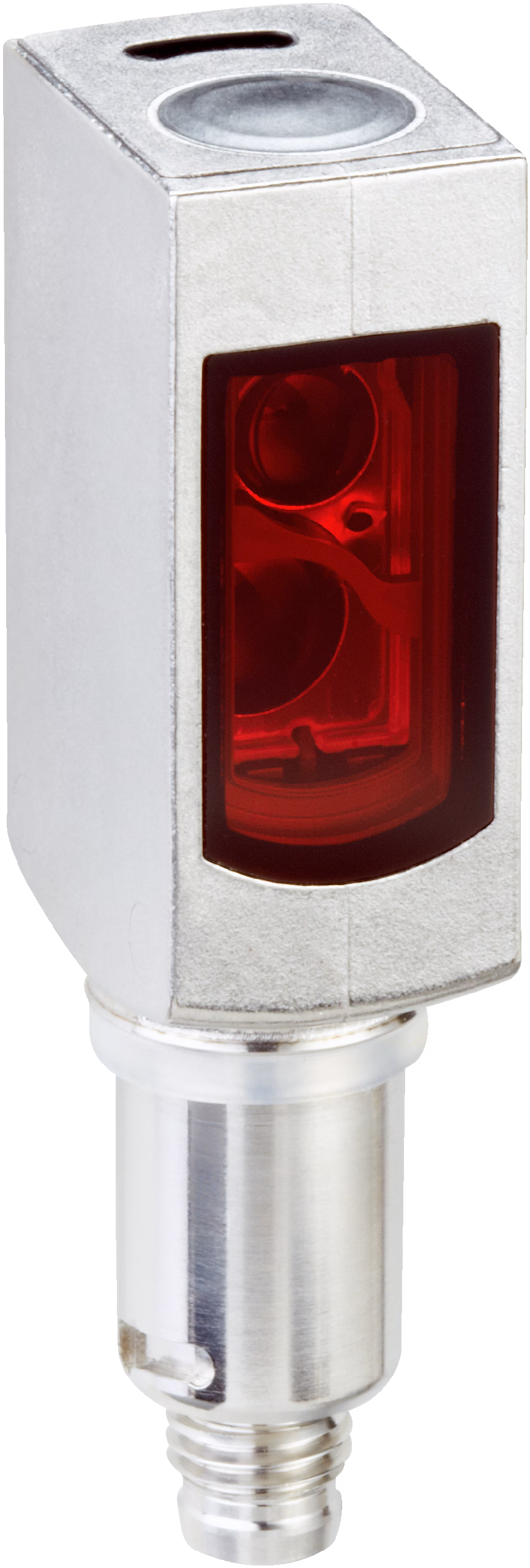

SICK 1103456 / WTB4SL-3P5264H is a photoelectric sensor in the W4 family. Sensing range max.: 25 mm... 300 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: PNP; Switching mode: Light switching; Connection type: Male connector M8, 4-pin; Light source: Laser; Type of light: Visible red light; Laser class: 1; Housing material: Stainless steel V4A (1.4404, 316L); Adjustment: Teach-in button; Special features: External teach; Housing: Rectangular.

Manufacturer

Sick

Part number

1103456

Product family

W4

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 25 mm... 300 mm; Sensing range: 25 mm... 300 mm; Supply voltage UB: 10 V DC... 30 V DC; Response time: ≤ 0.5 ms; Dimensions (W x H x D): 15.3 mm x 63.2 mm x 22.2 mm; Enclosure rating: IP66; IP67; IP68; IP69K; Ambient operating temperature: –10 °C... +50 °C; Ambient operating temperature extended: –30 °C... +55 °C; Weight: 140 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Emitted beam: Light source Laser; Light spot size (distance): Ø 1 mm (170 mm)

Weight

0.14 kg

Dimensions

15.3 x 63.2 x 22.2
