1101572

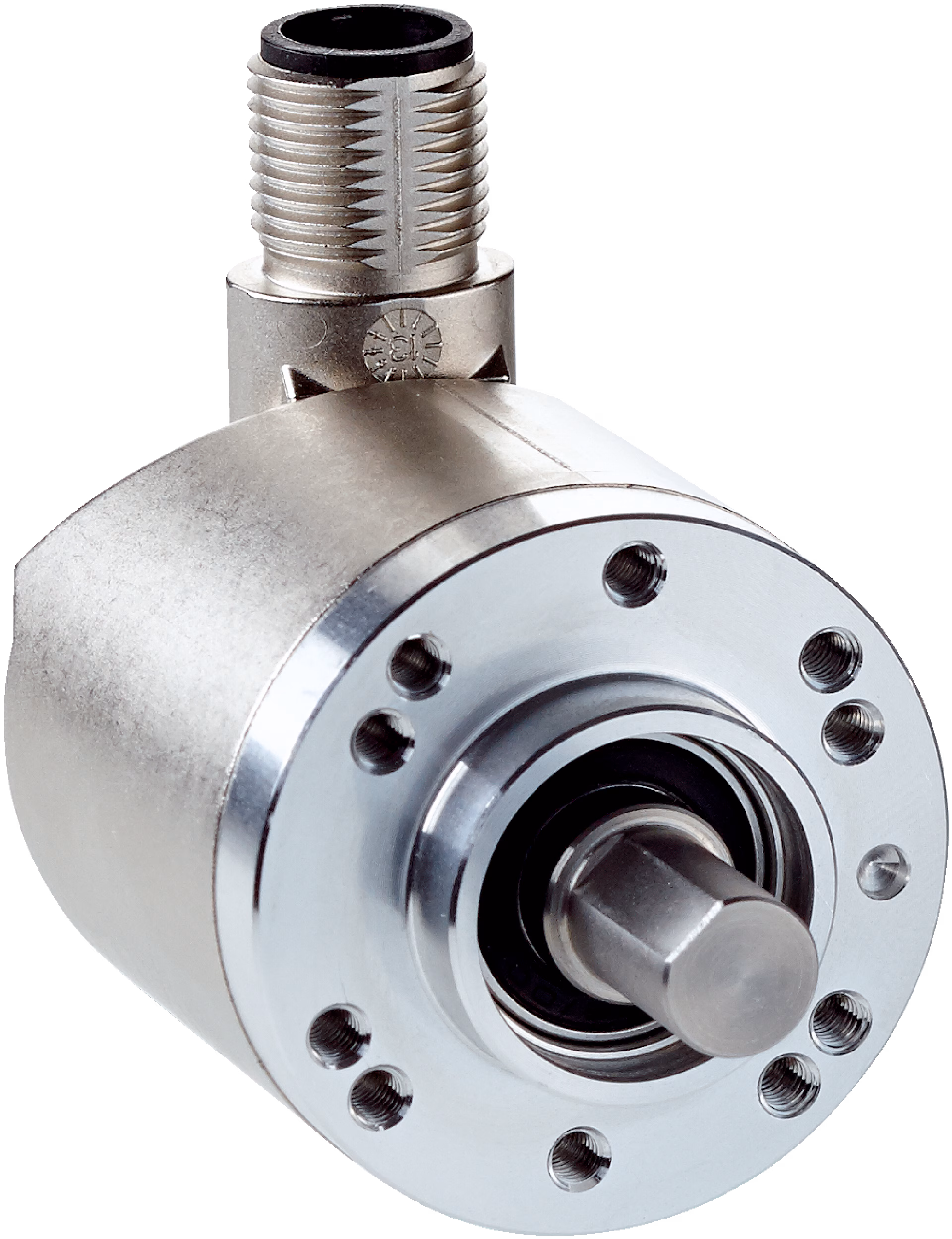

SICK 1101572 / AHS36A-S4QC016384 is an absolute encoder in the AHS/AHM36 family. Singleturn or multiturn version: Singleturn; Number of steps per revolution: 16,384 (14 bit); Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat); Communication interface: IO-Link, IO-Link V1.1, programmable; Connection type: Male connector, M12, 4-pin, universal; Programming interface: Over PLC-Engineering-Tool, over SOPAS; Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis.

Manufacturer

Sick

Part number

1101572

Product family

AHS/AHM36

Category

Absolute encoders

Technical details

Number of steps per revolution (max. resolution): 16,384 (14 bit); Supply voltage: 18... 30 V; Communication interface: IO-Link; Communication Interface detail: IO-Link V1.1; Switching input/Switching output: ✔; Repeatability standard deviation σr: 0.2° (at 20 °C); Connection type: Male connector, M12, 4-pin, universal; Enclosure rating: IP66 (IEC 60529); IP67 (IEC 60529); Housing material: Zinc; Weight: 0.12 kg; MTTFD (mean time to dangerous failure): 240 years (EN ISO 13849-1); Error limits G: 0.35° (at 20 °C); Initialization time: 2 s; Cycle time: ≤ 3.2 ms

Weight

0.12 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
