1099832

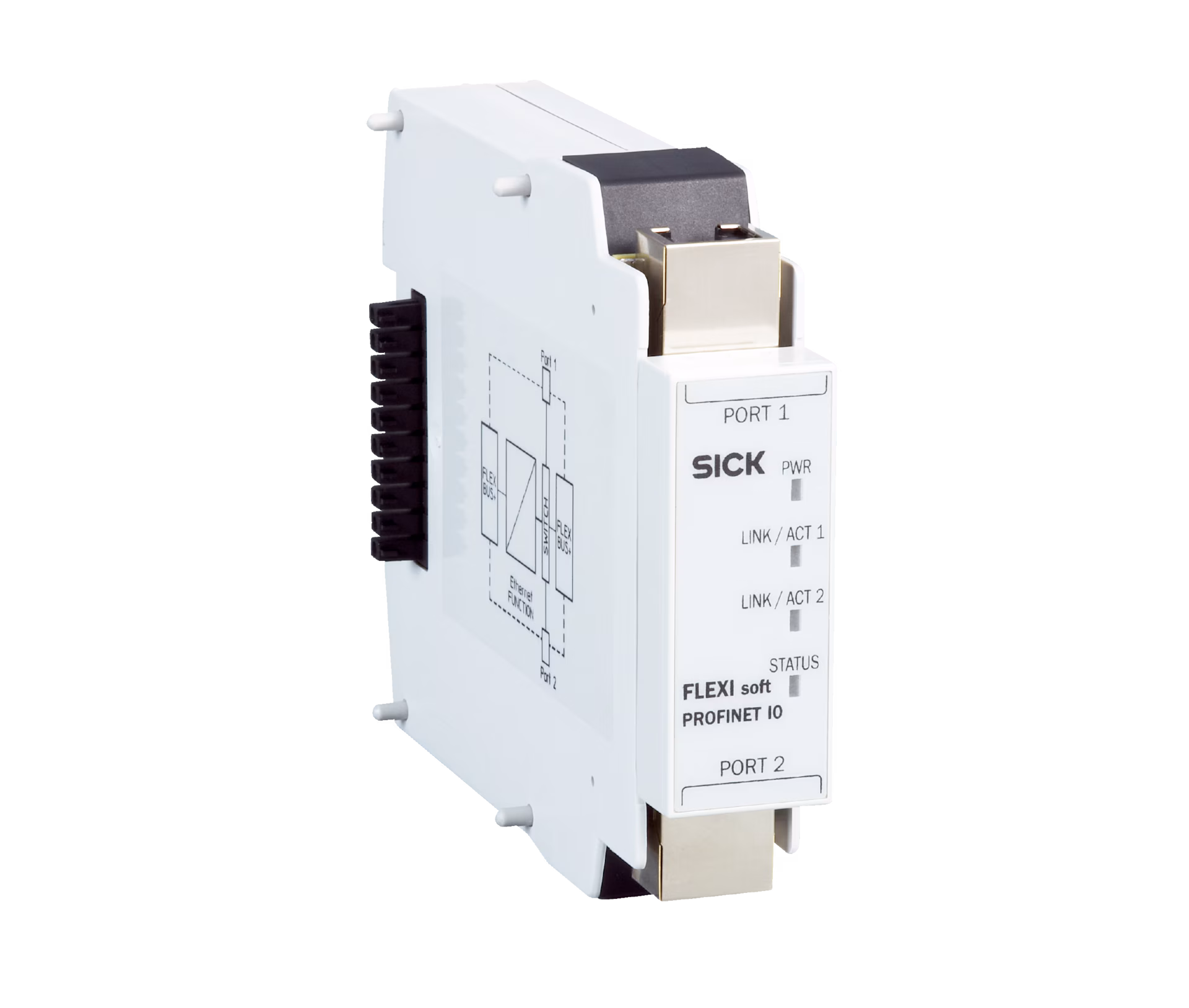

SICK 1099832 / FX0-GPNT00030 is an archive in the Flexi Soft family. Safety controllers; Module: Gateway; Fieldbus, industrial network: PROFINET; Connection type: 2 × RJ45 socket; Protective coating for more challenging ambient conditions: no; Firmware: V2.12.

Manufacturer

Sick

Part number

1099832

Product family

Flexi Soft

Category

Archive

Technical details

Dimensions (W x H x D): 22.5 mm x 96.5 mm x 120.6 mm; Connection type: 2 × RJ45 socket; Enclosure rating: IP20 (EN 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: 125 g (± 10 %); Module: Gateway; Fieldbus, industrial network: PROFINET; Specialty: This is a replacement device with an older firmware for replacing the gateway on existing systems. For new systems, please use gateway 1044074.; Firmware: V2.12; Configuration method: Via software (Flexi Soft Designer); Integrated Ethernet switch: 3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable; Data transmission rate: 10 Mbit/s, 10Base-T; 100 Mbit/s, 100Base-T; autosensing; Voltage supply: Via FLEXBUS+; Internal power consumption: ≤ 2.4 W

Weight

0.125 kg

Dimensions

22.5 x 96.5 x 120.6
