1098212

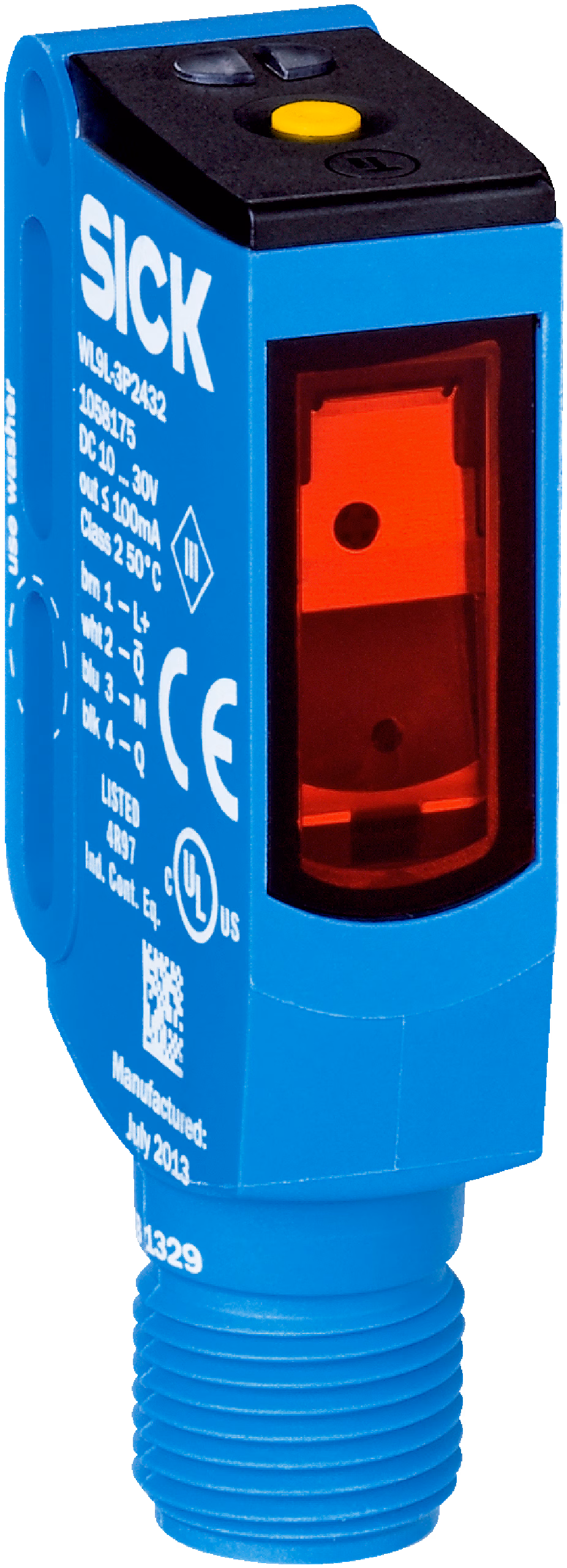

SICK 1098212 / WL9LC-3P3432A00 is a photoelectric sensor in the W9 family. Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Switching output: PNP; Switching mode: Light/dark switching; Connection type: Cable with M12 male connector, 4-pin, 120 mm; Light source: Laser; Adjustment: IO-Link, Teach-in button; Laser class: 1; Communication interface: IO-Link; Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task; Smart Task name: Base logics.

Manufacturer

Sick

Part number

1098212

Product family

W9

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 12 m; Sensing range: 0 m... 8 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP;; Response time: ≤ 0.5 ms; Response time Q/ on Pin 2: 300 µs... 450 µs; Repeatability Q/ on Pin 2:: 150 µs; Repeatability: SIO Direct: 150 µs; SIO Logic: 150 µs; IOL: 400 µs; Dimensions (W x H x D): 12.2 mm x 52.2 mm x 23.6 mm; Connection type: Cable with M12 male connector, 4-pin, 120 mm; Enclosure rating: IP66; IP67; IP69K; Housing material: Plastic, VISTAL®; Ambient operating temperature: –10 °C... +50 °C

Weight

0.013 kg

Dimensions

12.2 x 52.2 x 23.6
