1096014

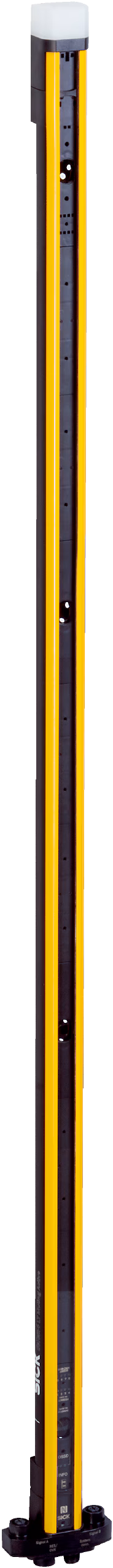

SICK 1096014 / M4M-ZA04300D20 is a safety light-beam sensor in the deTem family. Product version: deTem4 LT Muting A/P; Functional principle: Active/passive; System part: Active unit; Application: Normal industrial environment; Safety level: PL e, SIL 3, Type 4; Functions: Protective operation, beam coding, restart interlock, Differentiation between person and material; Scanning range: 3.2 m; Number of beams: 4; Beam separation: 300 mm; Connection type: Male connector M12, 8-pin; End cap with integrated LED: yes; Integrated laser alignment aid: no; Enclosure rating: IP65, IP67; Items supplied: Active unit, safety instruction, Mounting instructions, Operating instructions for download.

Manufacturer

Sick

Part number

1096014

Product family

deTem

Category

Safety light-beam sensors

Technical details

Type of light: Near-infrared (NIR), invisible; Number of beams: 4; Beam separation: 300 mm; Supply voltage VS: 24 V DC (19.2 V DC... 28.8 V DC); Near Field Communication (NFC): ✔; Response time: 20 ms; Dimensions: See dimensional drawing; Enclosure rating: IP65 (IEC 60529); IP67 (IEC 60529); Ambient operating temperature: –30 °C... +55 °C; Weight: 925 g (± 50 g); Product version: deTem4 LT Muting A/P; Application: Normal industrial environment; Functional principle: Active/passive; System part: Active unit

Weight

0.925 kg
