1095728

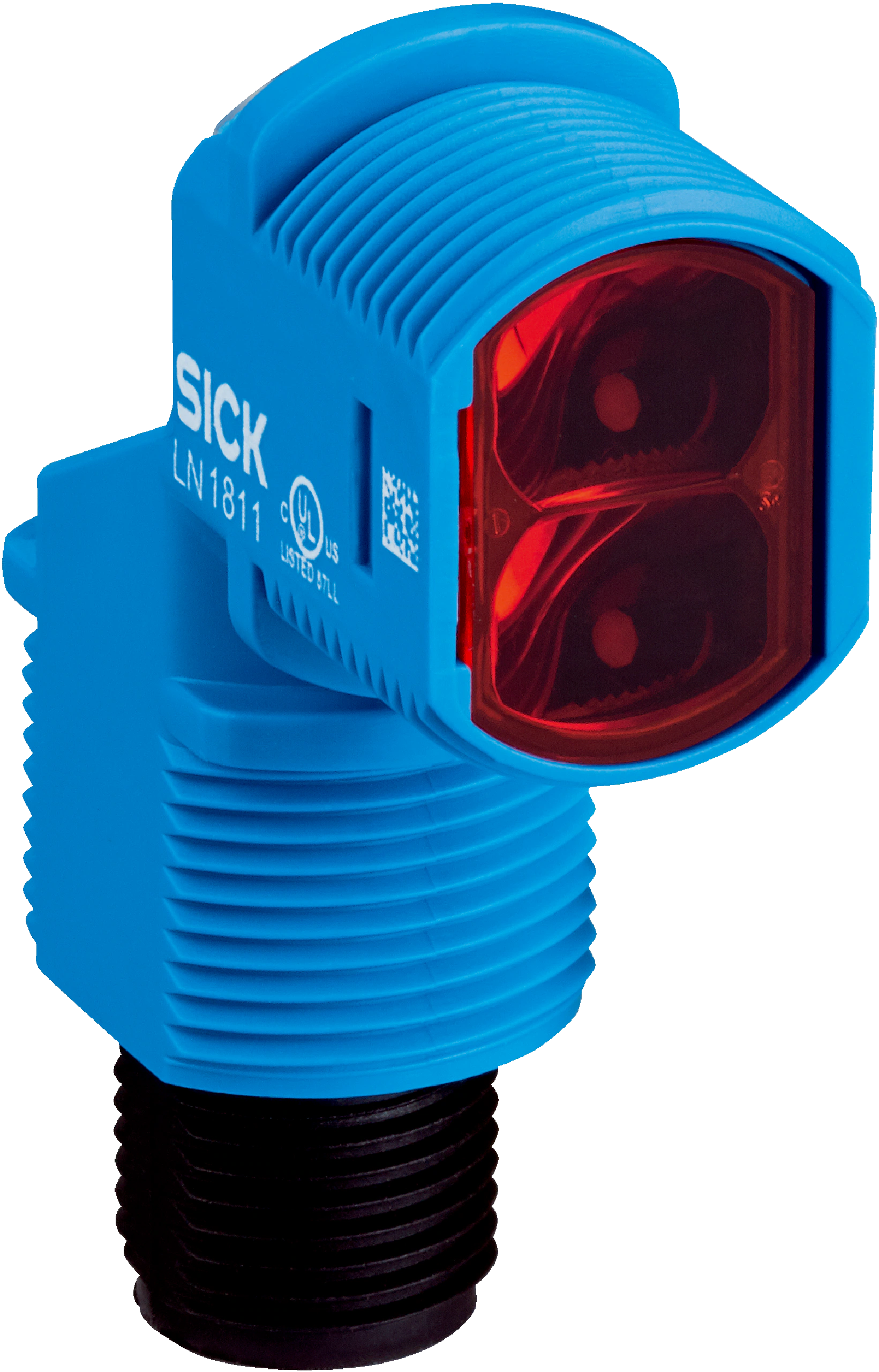

SICK 1095728 / ZLD18-4AB4A2 is a photoelectric sensor in the Z18 Simple Sense family. Communication interface: -; Mounting system type: M18, head/M18, base; Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system); Sensing range: 7.8 m; Light source, light type: PinPoint LED, visible red light; Switching output Q1: Push-pull: PNP/NPN, Light switching; Switching output Q2: Push-pull: PNP/NPN, Dark switching; Connection type: Male connector M12, 4-pin.

Manufacturer

Sick

Part number

1095728

Product family

Z18 Simple Sense

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 7.8 m; Sensing range: 0 m... 6.8 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: Push-pull: PNP/NPN; Switching output detail: Switching output Q1 Push-pull: PNP/NPN, Light switching; Switching output Q2: Push-pull: PNP/NPN, Dark switching; Response time: ≤ 500 µs; Dimensions (W x H x D): 13.6 mm x 44.2 mm x 33.3 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP67; Housing material: Plastic, ABS; Ambient operating temperature: –40 °C... +55 °C; Weight: 4.54 g

Weight

0.00454 kg

Dimensions

13.6 x 44.2 x 33.3
