1094067

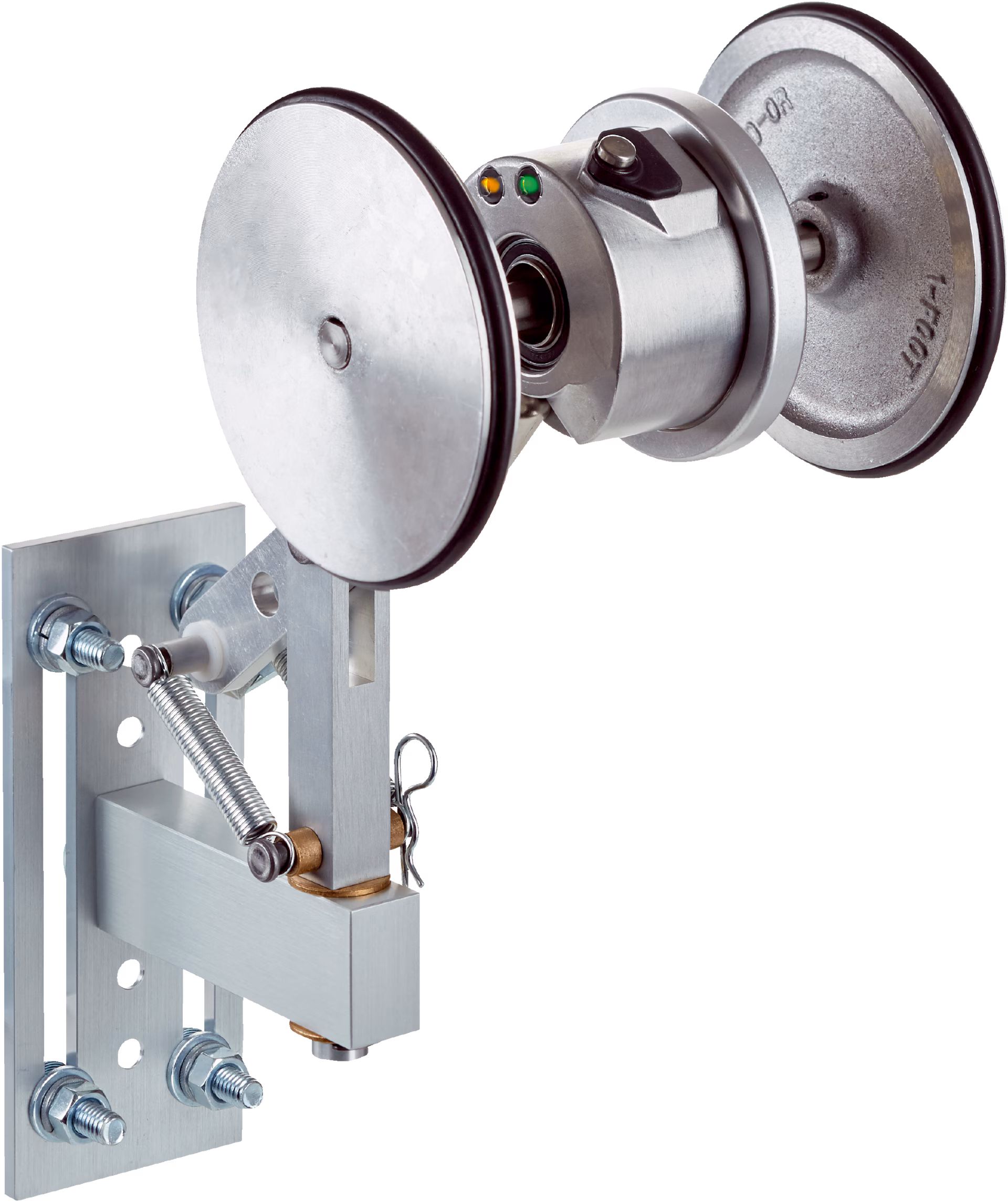

SICK 1094067 / DUV60E-32KCHACA is an archive in the DUV60 family. Measuring wheel encoders; Measuring wheel circumference: 300 mm; Measuring wheel surface: O-ring NBR70; Communication interface: 4.75 V... 30 V, Incremental, TTL, HTL; Supply voltage: 4.75 V... 30 V; Range of pulses per revolution: 1... 1800; Output function: A and B output; Connection type: Male connector, M12, 8-pin, universal; Spring arm design: Spring tension, under-belt flange mount; Anti-dither: no.

Manufacturer

Sick

Part number

1094067

Product family

DUV60

Category

Archive

Technical details

Resolution in pulses/mm: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent); Supply voltage: 4.75 V... 30 V; Communication interface: Incremental; Communication Interface detail: TTL / HTL; Connection type: Male connector, M12, 8-pin, universal; Enclosure rating: IP65; MTTFD (mean time to dangerous failure): 275 years (EN ISO 13849-1); Pulses per revolution: 1... 1800; Measuring step: 90° electric/pulses per revolution; Measuring step deviation: ± 18°, / pulses per revolution; Error limits: Measuring step deviation x 3; Duty cycle: 0.5 ± 5 %; Initialization time: < 5 ms; Parameterising data: DIP switch, selectable output

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
