1091954

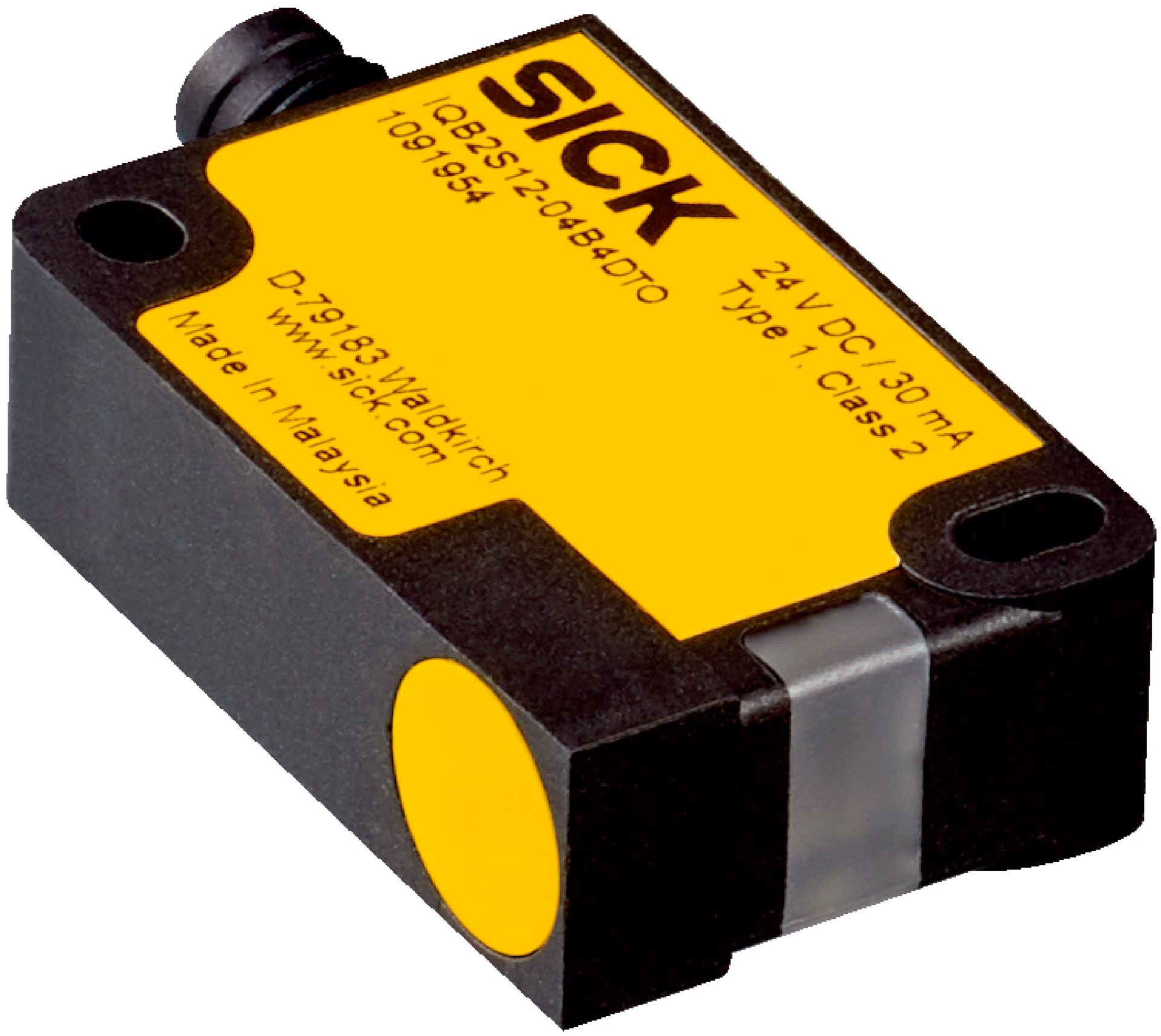

SICK 1091954 / IQB2S12-04B4DT0 is a safety switche in the IQB2S family. Design: Rectangular; Sensing range Sn: 4 mm; Dimensions: 12 mm x 40 mm x 26 mm; Installation type: Flush; Connection type Detail: Male connector M8, 4-pin; Type of output: Self-monitoring semiconductor outputs (OSSDs); Performance level: PL d.

Manufacturer

Sick

Part number

1091954

Product family

IQB2S

Category

Safety switches

Technical details

Sensor principle: Inductive; Sensing range Sn: 4 mm; Supply voltage Vs: 24 V DC (19.2 V DC... 28.8 V DC); Response time: ≤ 1 ms; Dimensions: 12 mm x 40 mm x 26 mm; Connection type: Male connector M8, 4-pin; Enclosure rating: IP67 (IEC 60529); Ambient operating temperature: –25 °C... +70 °C; Number of safe outputs: 2; Assured switch on distance Sao: 3.2 mm; Assured switch off distance Sar: 6 mm; Active sensor surfaces: 1; Actuation frequency: ≤ 100 Hz; Safety integrity level: SIL 2 (IEC 61508)

Dimensions

12 x 40 x 26
