1086802

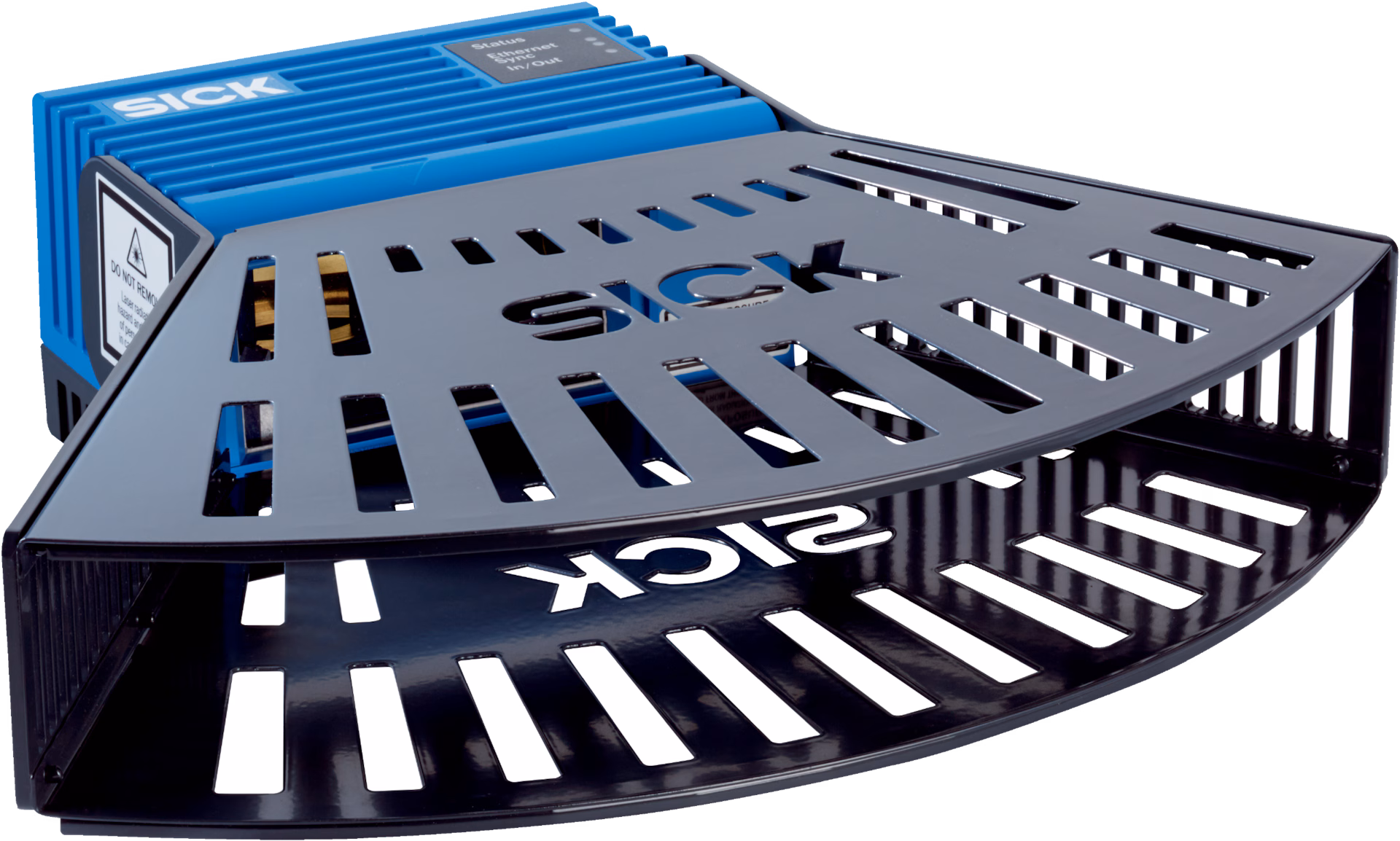

SICK 1086802 / LMS4521R-16000 is an archive in the LMS4000 family. LiDAR sensors; Working range: 0.7 m... 3 m; Enclosure rating: IP65; Color: Light blue (RAL 5012); Integrated application: Output of measurement data; Connection type: 1 x M12, 5-pin plug (CAN In), 1 x M12, 5-pin female connector (CAN Out), 1 x M12, 8-pin female connector (Ethernet), 1 x M12, 5-pin female connector (encoder + sync); Scanning frequency: 600 Hz.

Manufacturer

Sick

Part number

1086802

Product family

LMS4000

Category

Archive

Technical details

Working range: 0.7 m... 3 m; Angular resolution: Horizontal 0.0833°; Supply voltage: 24 V DC, ± 25 %; Response time: ≥ 4.8 ms; Dimensions (L x W x H): 397 mm x 370 mm x 107 mm; Connection type: 1 x M12, 5-pin plug (CAN In); 1 x M12, 5-pin female connector (CAN Out); 1 x M12, 8-pin female connector (Ethernet); 1 x M12, 5-pin female connector (encoder + sync); Enclosure rating: IP65; Housing material: Aluminum die cast; Ambient operating temperature: –10 °C... +50 °C; Weight: 3.7 kg; Application: Indoor; Reading field: Front; Light source: Visible red light (660 nm); Laser class: 2 (IEC 60825-1:2014, EN 60825-1:2014)

Weight

3.7 kg

Dimensions

397 x 370 x 107

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
