1086343

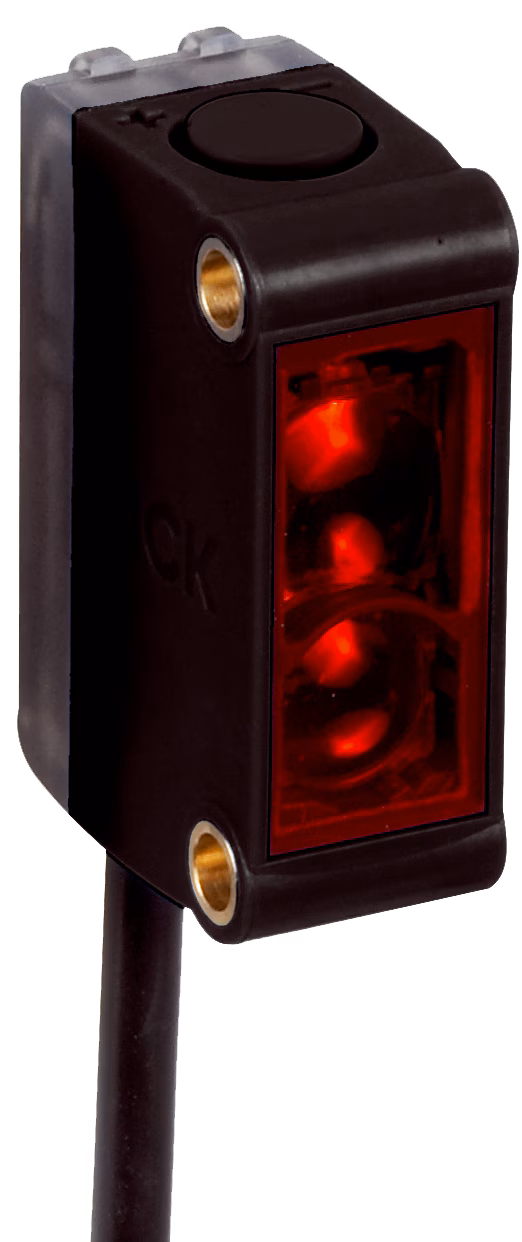

SICK 1086343 / GTB6-F7441S65 is a photoelectric sensor in the G6 family. Sensing range max.: 0 mm... 500 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Cable with plug, M12, 4-pin, 300 mm; Light source: LED; Type of light: Infrared light; Housing material: ABS/PC; Adjustment: None; Special features: Fixed sensing range of 240 mm on black (6% remission), potentiometer not adjustable; Housing: Rectangular.

Manufacturer

Sick

Part number

1086343

Product family

G6

Category

Photoelectric sensors

Technical details

Type of light: Infrared light; Sensing range max.: 0 mm... 500 mm; Sensing range: 0 mm... 400 mm; Supply voltage UB: 10 V DC... 30 V DC; Response time: < 1 ms; Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm; Enclosure rating: IP67; Ambient operating temperature: –30 °C... +55 °C; Weight: 20 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Emitted beam: Light source LED; Light spot size (distance): Ø 9 mm (100 mm); Key LED figures: Wave length 850 nm

Weight

0.02 kg

Dimensions

12 x 31.5 x 21
