1084473

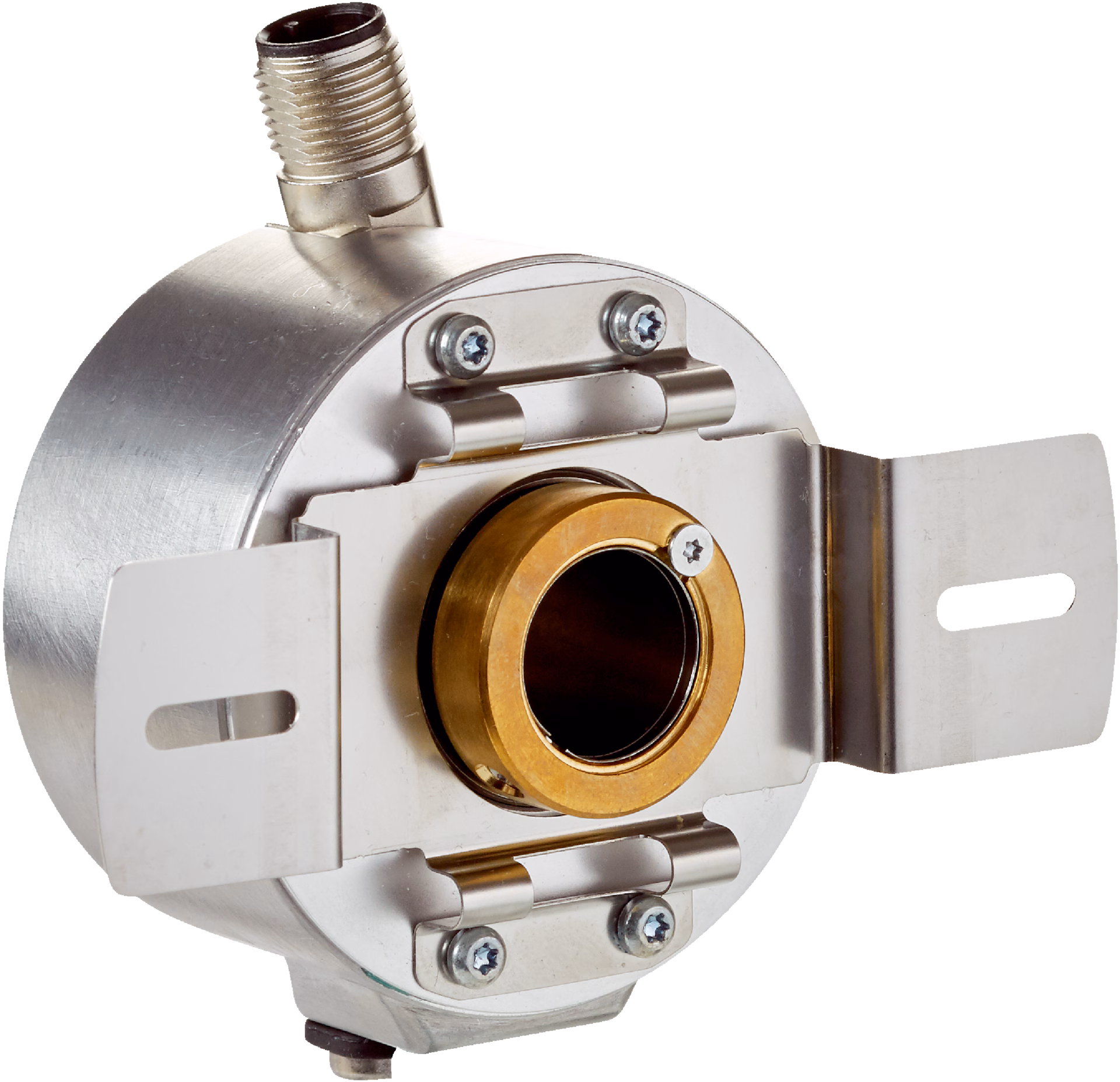

SICK 1084473 / DUS60E-BJKF0ABA is an incremental encoder in the DUS60 family. Mechanical design: Blind hollow shaft 5/8″ (Front clamp); Communication interface: 4.75 V... 30 V, TTL, HTL, programmable; Connection type: Male connector, M12, 4-pin, universal; Output function: A and B output; Flange type / stator coupling: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm; Anti-dither: no.

Manufacturer

Sick

Part number

1084473

Product family

DUS60

Category

Incremental encoders

Technical details

Supply voltage: 4.75... 30 V; Communication interface: Incremental; Communication Interface detail: TTL / HTL; Connection type: Male connector, M12, 4-pin, universal; Enclosure rating: IP65; Housing material: Aluminum; Weight: 0.25 kg; MTTFD (mean time to dangerous failure): 275 years (EN ISO 13849-1); Measuring step: 90°, electric/pulses per revolution; Measuring step deviation: ± 18° / pulses per revolution; Error limits: Measuring step deviation x 3; Duty cycle: ≤ 0.5 ± 5 %; Number of signal channels: 6-channel; Programmable/configurable: ✔

Weight

0.25 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
