1081895

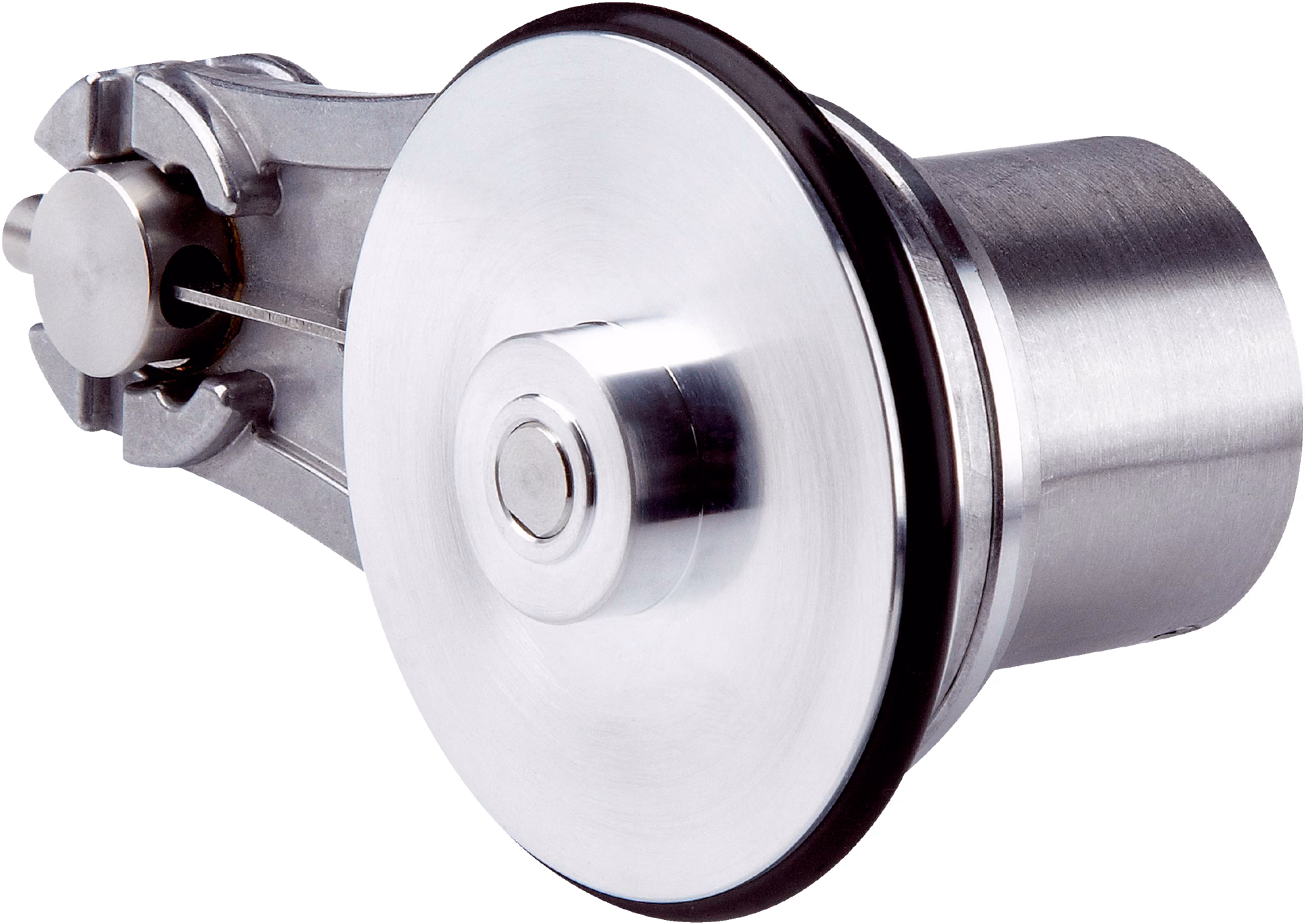

SICK 1081895 / DBV50E-22EMA2000 is an archive in the DBV50 family. Measuring wheel encoders; Measuring wheel circumference: 200 mm; Measuring wheel surface: O-ring NBR70; Communication interface: 7 V... 30 V, Incremental, HTL, Push pull; Supply voltage: 7 V... 30 V; Connection type: Cable, 8-wire, universal, 5 m; Resolution in pulses/mm: 10; Spring arm design: 63.5 mm spring arm, encoder on mounting side (left), single wheel.

Manufacturer

Sick

Part number

1081895

Product family

DBV50

Category

Archive

Technical details

Resolution in pulses/mm: 10; Measuring increment (resolution in mm/pulse): 0.1; Supply voltage: 7 V... 30 V; Communication interface: Incremental; Communication Interface detail: HTL / Push pull; Connection type: Cable, 8-wire, universal, 5 m; Enclosure rating: IP65; MTTFD (mean time to dangerous failure): 600 years (EN ISO 13849-1); Pulses per revolution: 2,000; Measuring step deviation: ± 18° / pulses per revolution; Error limits: ± 4 mm/m, subject to the measuring wheel (wheel + surface); Duty cycle: ≤ 0.5 ± 5 %; Initialization time: < 3 ms; Number of signal channels: 6-channel
