1081728

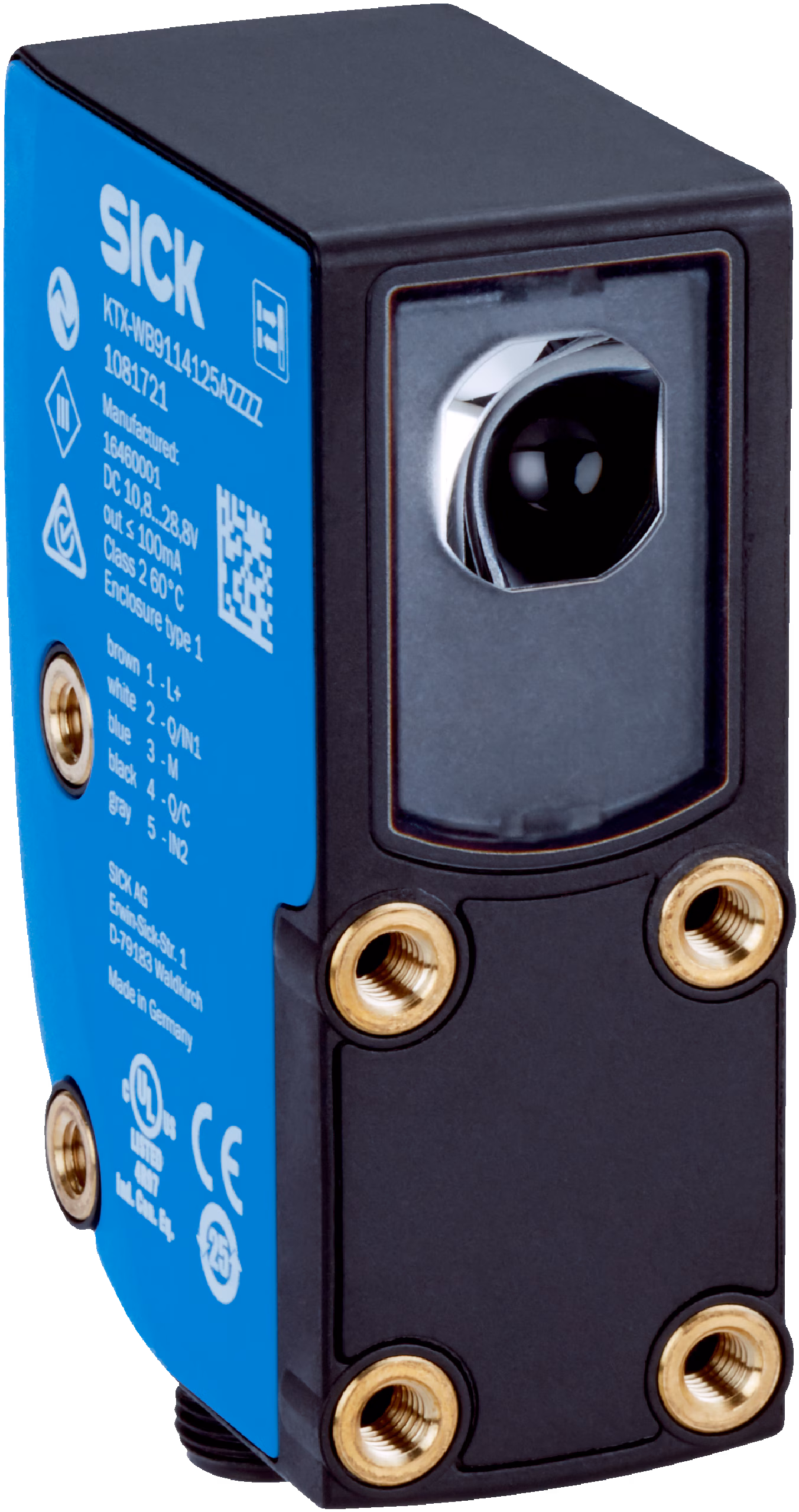

SICK 1081728 / KTX-WB9114125AZZZZ is a contrast sensor in the KTX family. Light source: LED; Communication interface: IO-Link; Device type: Standard; Sensing distance: 13 mm; Switching output: Push-pull: PNP/NPN; Light spot size: 0.9 mm x 3.8 mm; Light spot direction: Vertical; Light emission: Long side of housing; Connection type Detail: Plug, M12, 5-pin; Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode; Delivery status: 2-point teach-in; Housing material: Plastic.

Manufacturer

Sick

Part number

1081728

Product family

KTX

Category

Contrast sensors

Technical details

Supply voltage: 10.8 V DC... 28.8 V DC; Switching output: Push-pull: PNP/NPN; Switching output (voltage): Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V; Response time: 3 µs; Dimensions (W x H x D): 30 mm x 53 mm x 78.5 mm; Connection type: Plug, M12, 5-pin; Enclosure rating: IP67; Housing material: VISTAL®; Ambient operating temperature: –20 °C... +60 °C; Weight: 94 g; Parameter presettings: None; Special applications: High Precision; Device type: Standard; Housing design: Large

Weight

0.094 kg

Dimensions

30 x 53 x 78.5

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
