1080921

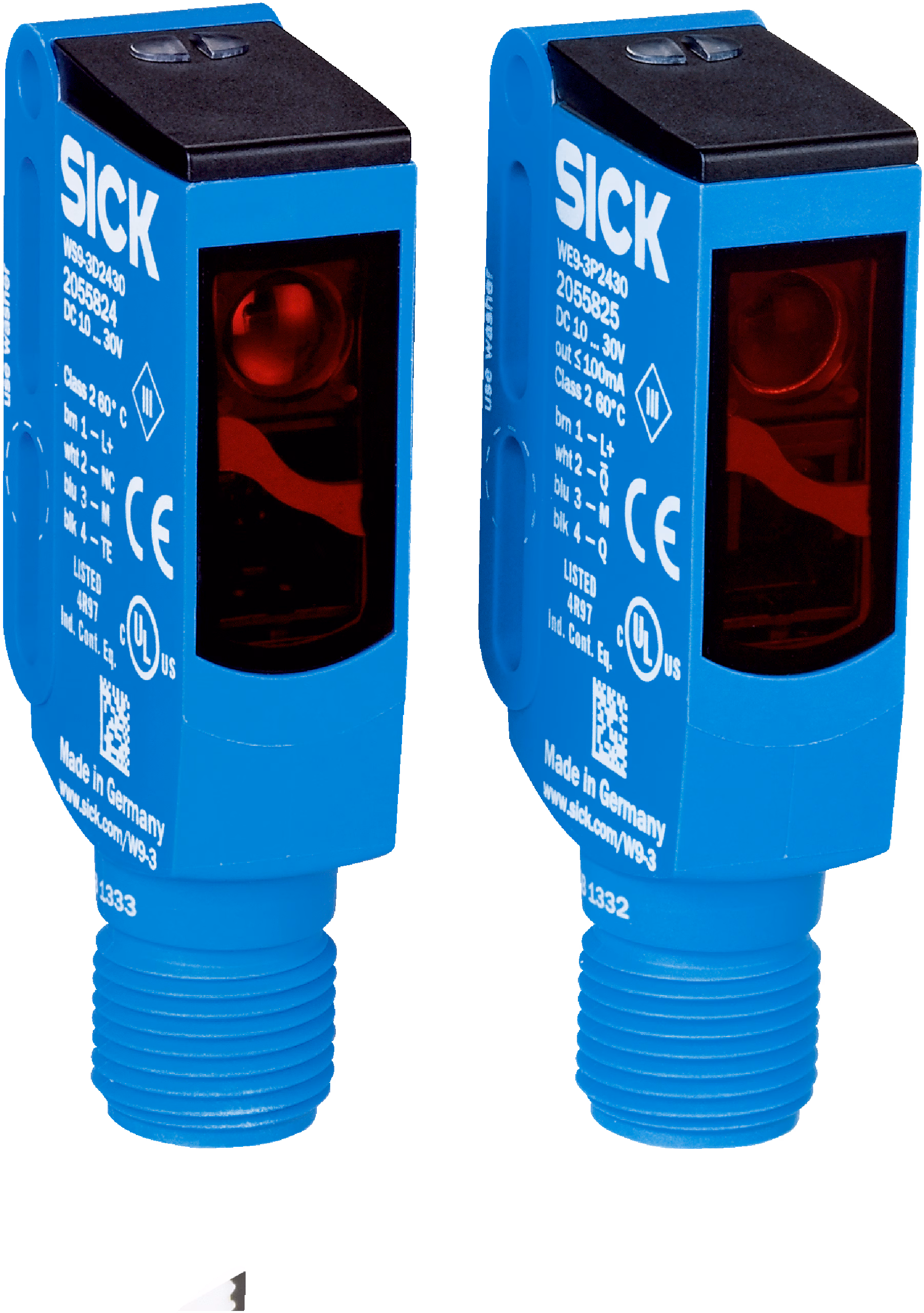

SICK 1080921 / WSE9C-3P2430A00 is a photoelectric sensor in the W9 family. Functional principle: Through-beam photoelectric sensor; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M12, 4-pin; Light source: PinPoint LED; Adjustment: IO-Link; Communication interface: IO-Link; Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task; Smart Task name: Base logics.

Manufacturer

Sick

Part number

1080921

Product family

W9

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 10 m; Sensing range: 0 m... 7 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP;; Response time: < 0.5 ms; Response time Q/ on Pin 2: 300 µs... 450 µs; Repeatability Q/ on Pin 2:: 150 µs; Repeatability: SIO Direct: 150 µs; SIO Logic: 150 µs; IOL: 400 µs; Dimensions (W x H x D): 12.2 mm x 52.2 mm x 23.6 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP66; IP67; IP69K; Housing material: Plastic, VISTAL®; Ambient operating temperature: –40 °C... +60 °C

Weight

0.013 kg

Dimensions

12.2 x 52.2 x 23.6
