1080558

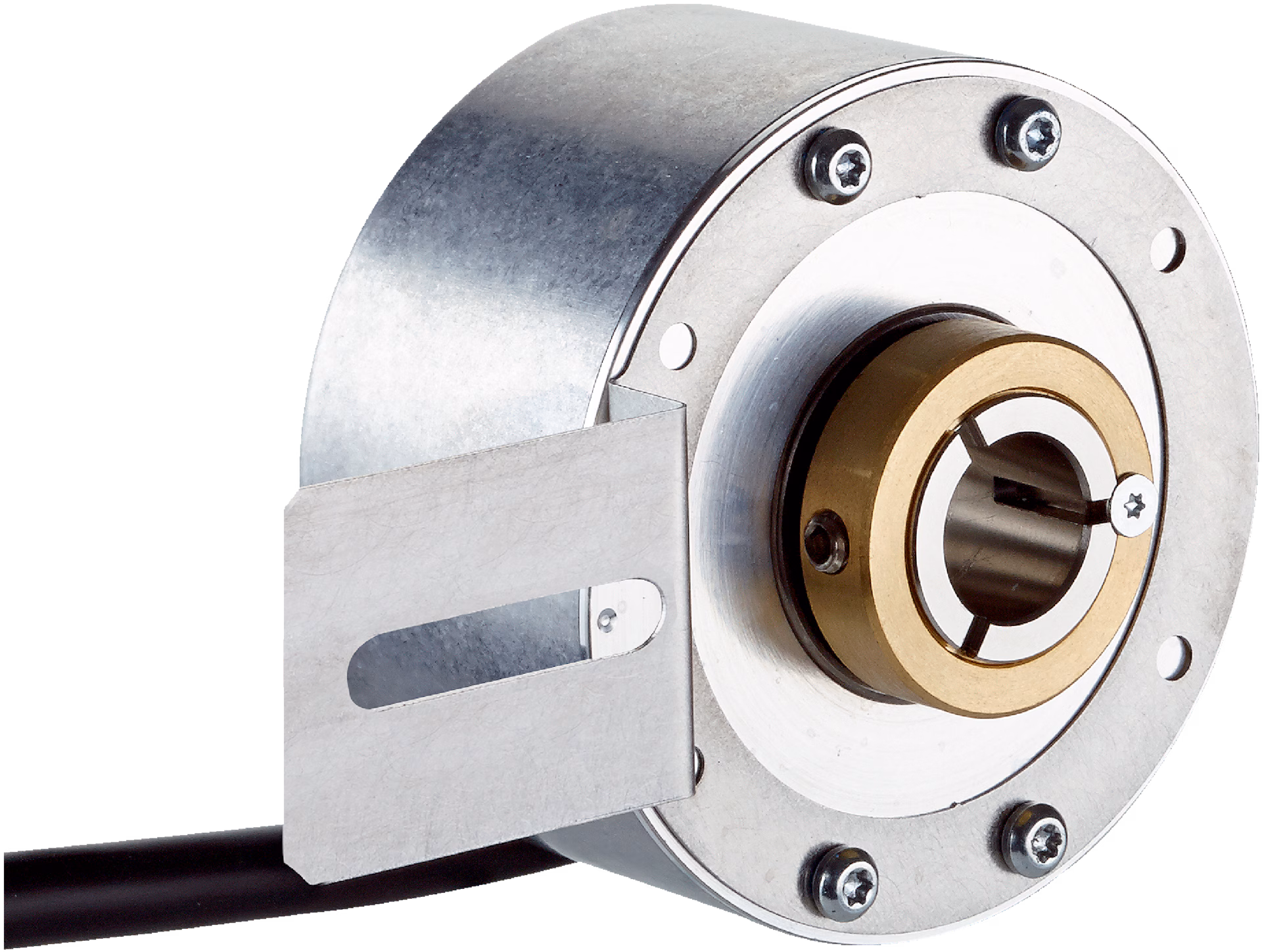

SICK 1080558 / DBS60E-TGEKD0100 is an incremental encoder in the DBS60 family. Mechanical design: Through hollow shaft 14 mm (Front clamp); Communication interface: 10 V... 27 V, HTL, Push pull; Connection type: Cable, 8-wire, universal, 1.5 m; Pulses per revolution: 100; Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm.

Manufacturer

Sick

Part number

1080558

Product family

DBS60

Category

Incremental encoders

Technical details

Supply voltage: 10... 27 V; Communication interface: Incremental; Communication Interface detail: HTL / Push pull; Connection type: Cable, 8-wire, universal, 1.5 m; Enclosure rating: IP65, housing side (IEC 60529); IP65, shaft side (IEC 60529); Housing material: Aluminum; Weight: + 0.25 kg; MTTFD (mean time to dangerous failure): 500 years (EN ISO 13849-1); Pulses per revolution: 100; Measuring step: ≤ 90°, electric/pulses per revolution; Measuring step deviation: ± 18° / pulses per revolution; Error limits: Measuring step deviation x 3; Duty cycle: ≤ 0.5 ± 5 %; Number of signal channels: 6-channel

Weight

0.25 kg
