1080553

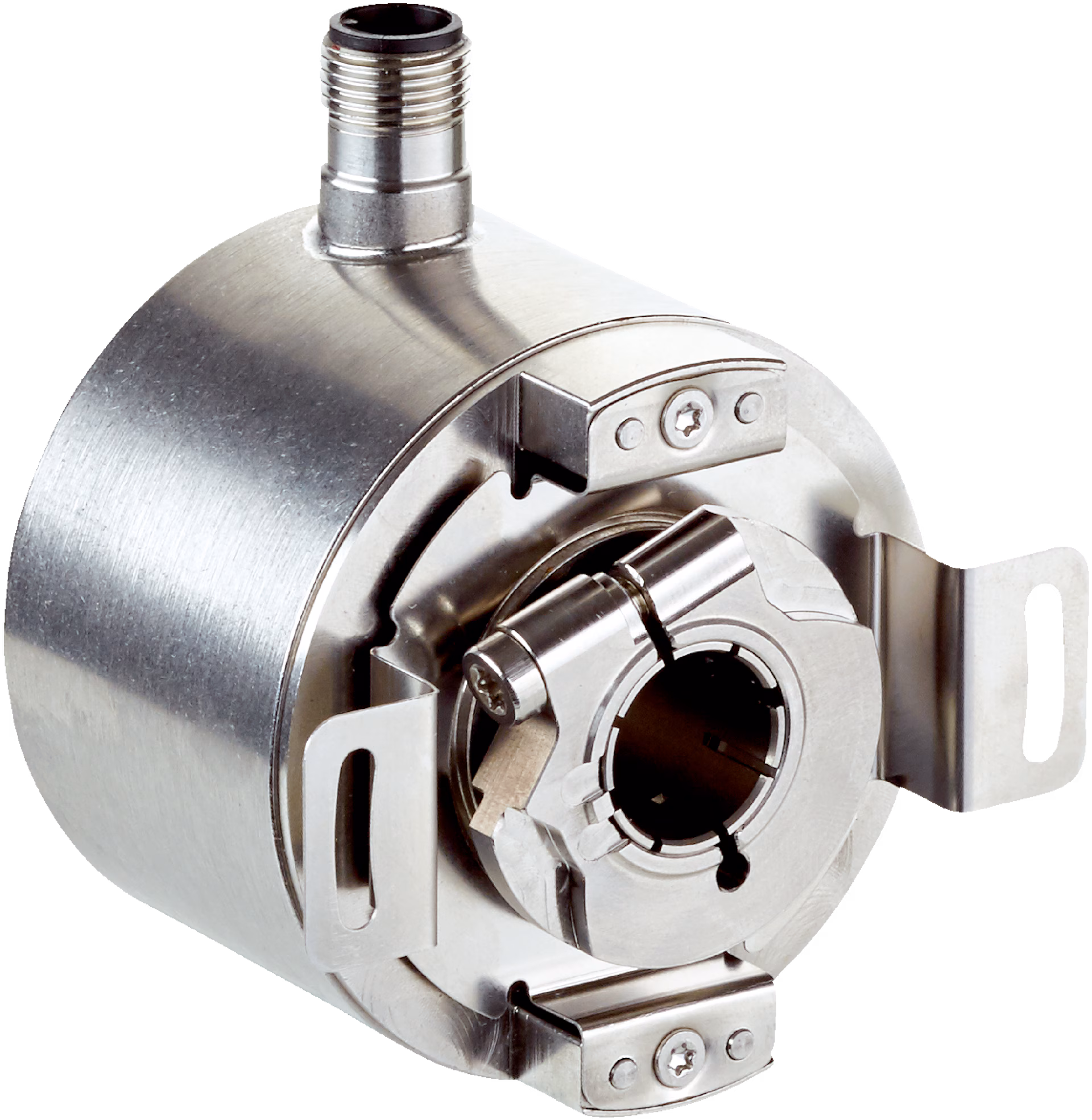

SICK 1080553 / DFS60I-BEPC65536 is an incremental encoder in the DFS60 family. Mechanical design: Blind hollow shaft 12 mm (Front clamp); Communication interface: 4.5 V... 32 V, TTL, HTL, programmable; Connection type: Male connector, M12, 8-pin, radial; Pulses per revolution: 65,536; Encoder material / Enclosure rating: Stainless steel V2A / IP67.

Manufacturer

Sick

Part number

1080553

Product family

DFS60

Category

Incremental encoders

Technical details

Supply voltage: 4.5... 32 V; Communication interface: Incremental; Communication Interface detail: TTL / HTL; Connection type: Male connector, M12, 8-pin, radial; Enclosure rating: IP67, housing side (IEC 60529); IP67, shaft side (IEC 60529); Housing material: Stainless steel V2A; Weight: + 0.5 kg; MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1); Pulses per revolution: 65,536; Measuring step: 90°, electric/pulses per revolution; Measuring step deviation at binary number of lines: ± 0.0015°; Error limits: ± 0.03°; Factory setting: Factory setting: output level TTL; Number of signal channels: 6-channel

Weight

0.5 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
