1078121

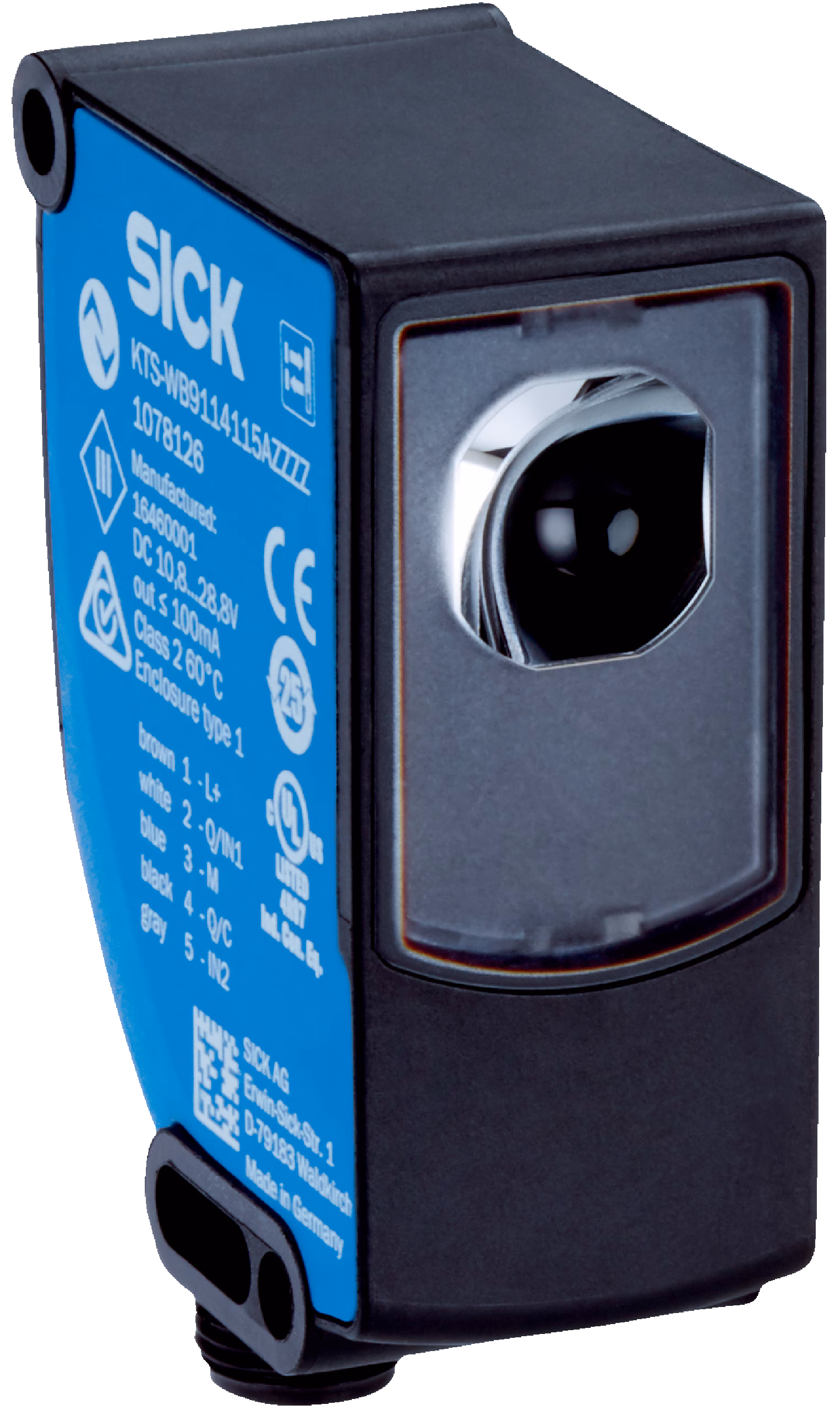

SICK 1078121 / KTS-WB91141142ZZZZ is a contrast sensor in the KTS family. Light source: LED; Communication interface: -; Device type: Standard; Sensing distance: 13 mm; Switching output: Push-pull: PNP/NPN; Light spot size: 0.9 mm x 3.8 mm; Light spot direction: Vertical; Light emission: Long side of housing; Connection type Detail: Male connector M12, 4-pin; Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode; Delivery status: 2-point teach-in; Housing material: Plastic.

Manufacturer

Sick

Part number

1078121

Product family

KTS

Category

Contrast sensors

Technical details

Supply voltage: 10.8 V DC... 28.8 V DC; Switching output: Push-pull: PNP/NPN; Switching output (voltage): Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V; Response time: 10 µs; Dimensions (W x H x D): 26 mm x 62 mm x 47.5 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP67; Housing material: VISTAL®; Ambient operating temperature: –20 °C... +60 °C; Weight: 68 g; Parameter presettings: None; Special applications: Standard; Device type: Standard; Housing design: Middle

Weight

0.068 kg

Dimensions

26 x 62 x 47.5
