1077942

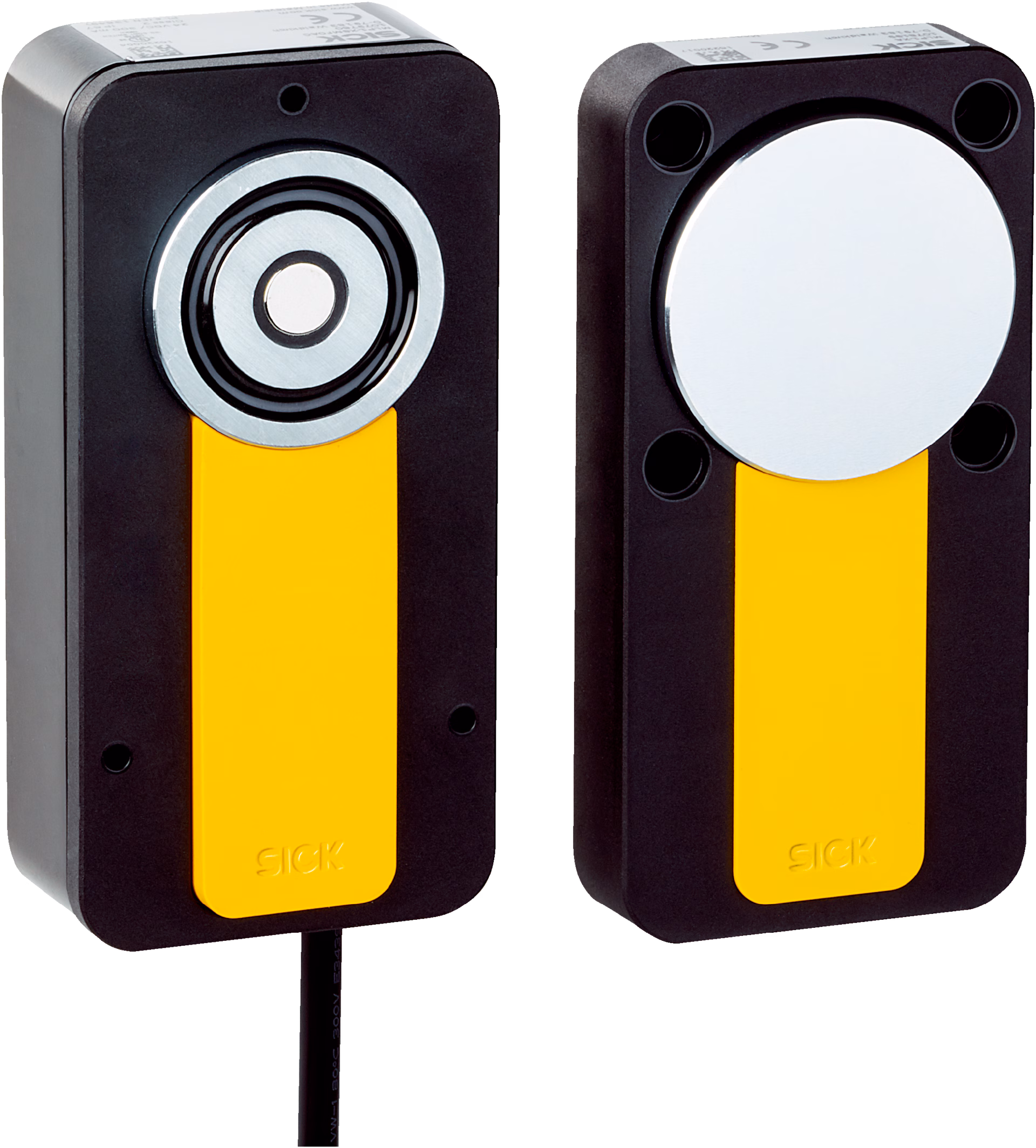

SICK 1077942 / MLP1-SMMC0AC is a safety switche in the MLP1 family. Note: Consists of sensor and actuator; Coding: Universally coded; Connection type Detail: Cable with plug, M12, 5-pin and cable with socket, M12, 5-pin; Safe series connection: Direct (without diagnostics).

Manufacturer

Sick

Part number

1077942

Product family

MLP1

Category

Safety switches

Technical details

Sensor principle: RFID; Supply voltage UV when an individual safety switch is connected: Sensor 24 V DC (19.2 V DC... 28.8 V DC); Supply voltage UV when a cascade is connected: Sensor 24 V DC (22.8 V DC... 28.8 V DC); Response time: 50 ms; Dimensions (W x H x D): Switches (spare parts) 120 mm x 60 mm x 38.5 mm; Connection type: Cable with plug, M12, 5-pin and cable with socket, M12, 5-pin; Enclosure rating: IP67 (EN 60529); Ambient operating temperature: –20 °C... +55 °C; Weight: Switches (spare parts) 510 g; Locking principle: Power to lock; Coding: Universally coded; Locking force Fmax: 550 N (GS-ET-19); Locking force FZh: 500 N (GS-ET-19); Retaining force: 25 N

Weight

0.51 kg

Dimensions

Switches (spare parts) 120 x 60 x 38.5

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
