1077524

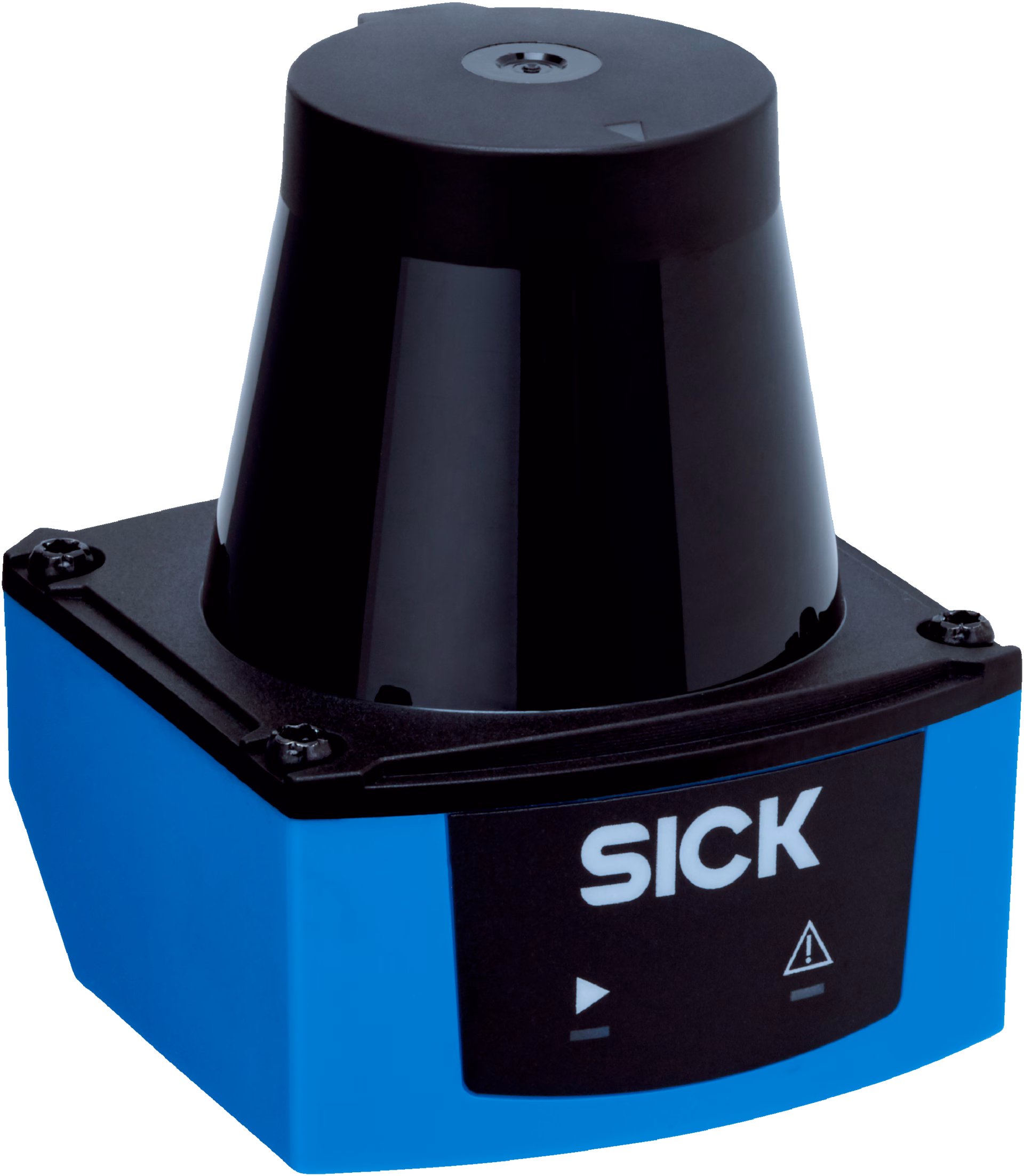

SICK 1077524 / TIM100-3010200 is a lidar sensor in the TiM family. Integrated application: Field evaluation; Measurement principle: HDDM+; Working range: 0.05 m... 3 m; Number of field sets: 1; Enclosure rating: IP65; Digital outputs: 2 (Push-Pull); Connection type: 1 x 5-pin M12 male device connector (rotatable).

Manufacturer

Sick

Part number

1077524

Product family

TiM

Category

LiDAR sensors

Technical details

Working range: 0.05 m... 3 m; Angular resolution: Horizontal 1°; Supply voltage: 9 V DC... 28 V DC; Response time: Typ. 70 ms; Dimensions (L x W x H): 60 mm x 60 mm x 75.8 mm; Connection type: 1 x 5-pin M12 male device connector (rotatable); Enclosure rating: IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013); Ambient operating temperature: –10 °C... +50 °C; Weight: 90 g, without connecting cables; Application: Indoor; Measurement principle: HDDM; Light source: Infrared (850 nm); Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021); Aperture angle: Horizontal 200°

Weight

0.09 kg

Dimensions

60 x 60 x 75.8
