1076666

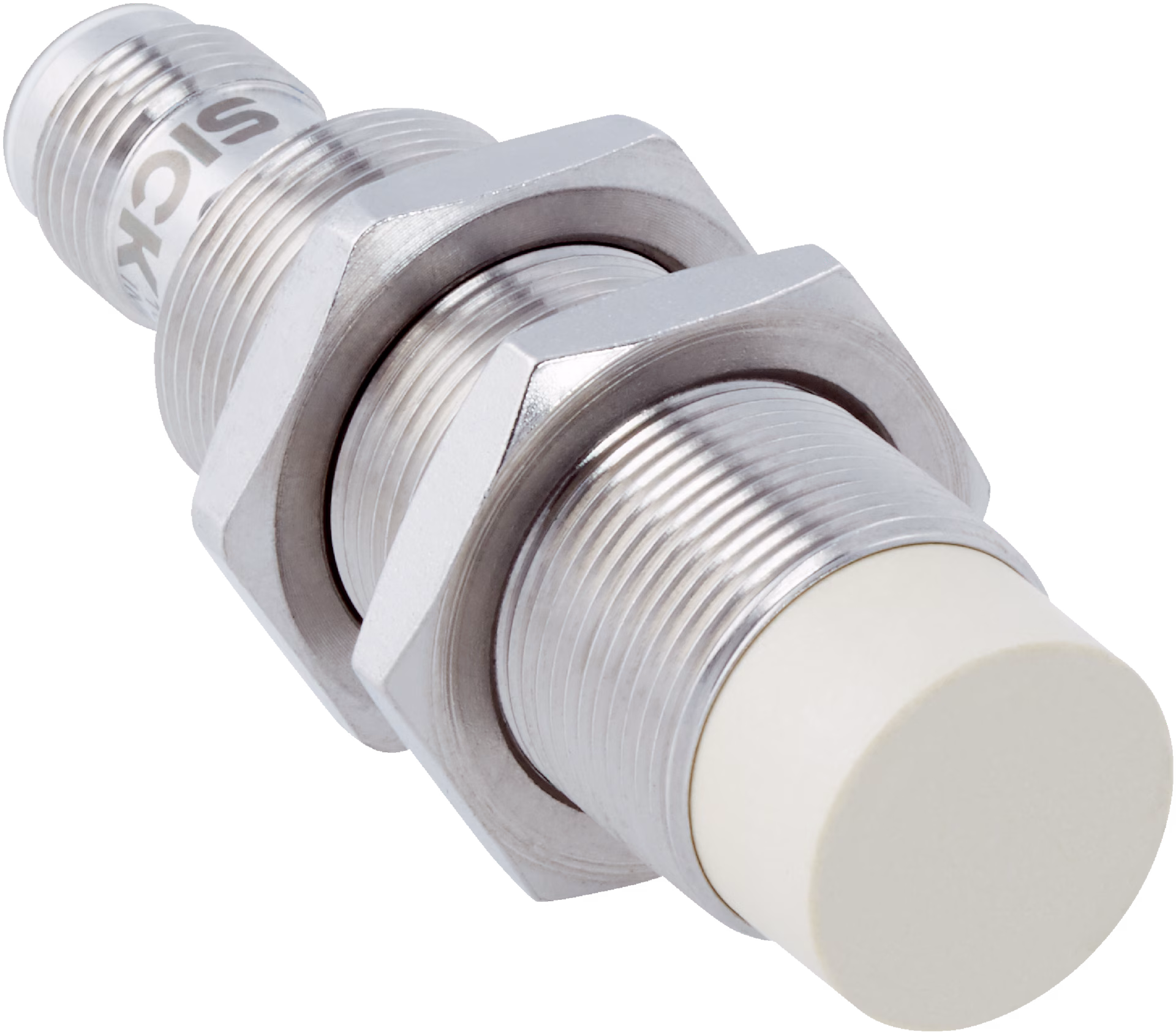

SICK 1076666 / IMF18-12NPSNC0S is an inductive proximity sensor in the IMF family. Housing: Standard design; Special applications: Hygienic and washdown zones, Difficult application conditions; Sensing range Sn: 12 mm; Installation type: Non-flush; Electrical wiring: DC 3-wire; Switching output: PNP; Output function: NO; Connection type: Male connector M12, 4-pin; Special features: Resistant to cleaning agents, Visual adjustment indicator, Temperature resistance.

Manufacturer

Sick

Part number

1076666

Product family

IMF

Category

Inductive proximity sensors

Technical details

Sensing range Sn: 12 mm; Safe sensing range Sa: 9.72 mm; Supply voltage: 10 V DC... 30 V DC; Switching output: PNP; Switching output detail: PNP; Communication interface: IO-Link V1.0; Communication Interface detail: COM2 (38,4 kBaud); Connection type: Male connector M12, 4-pin; Enclosure rating: IP68; IP69K; Housing material: Stainless steel V4A, DIN 1.4404 / AISI 316L; Ambient operating temperature: –40 °C... +100 °C; Housing: Metric; Thread size: M18 x 1; Diameter: Ø 18 mm
