1076074

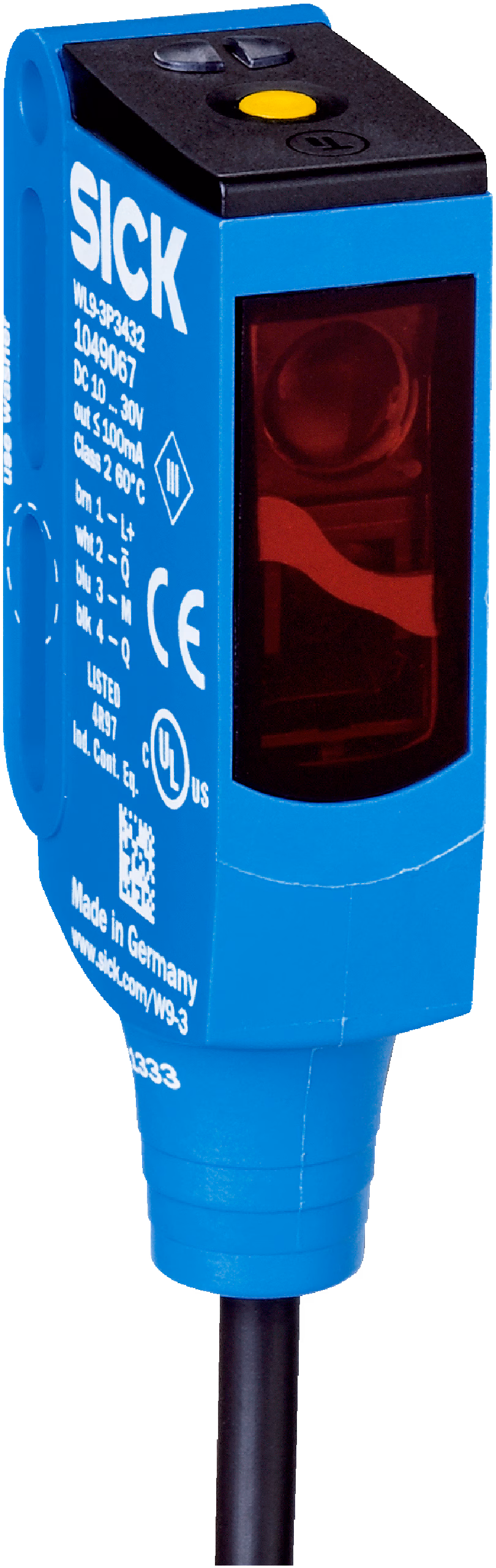

SICK 1076074 / WL9-3N1102S07 is a photoelectric sensor in the W9 family. Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Switching output: NPN; Switching mode: Light/dark switching; Connection type: Cable, 4-wire, 2 m; Light source: PinPoint LED; Adjustment: Teach-in button; Communication interface: -.

Manufacturer

Sick

Part number

1076074

Product family

W9

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 mm... 290 mm; Sensing range: 0 mm... 125 mm; Supply voltage UB: 10 V DC... 30 V DC; Switching output: NPN; Response time: < 0.5 ms; Dimensions (W x H x D): 12.2 mm x 50 mm x 23.6 mm; Connection type: Cable, 4-wire, 2 m; Enclosure rating: IP66; IP67; IP69K; Housing material: Plastic, VISTAL®; Ambient operating temperature: –40 °C... +60 °C; Weight: 80 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics)

Weight

0.08 kg

Dimensions

12.2 x 50 x 23.6
