1076047

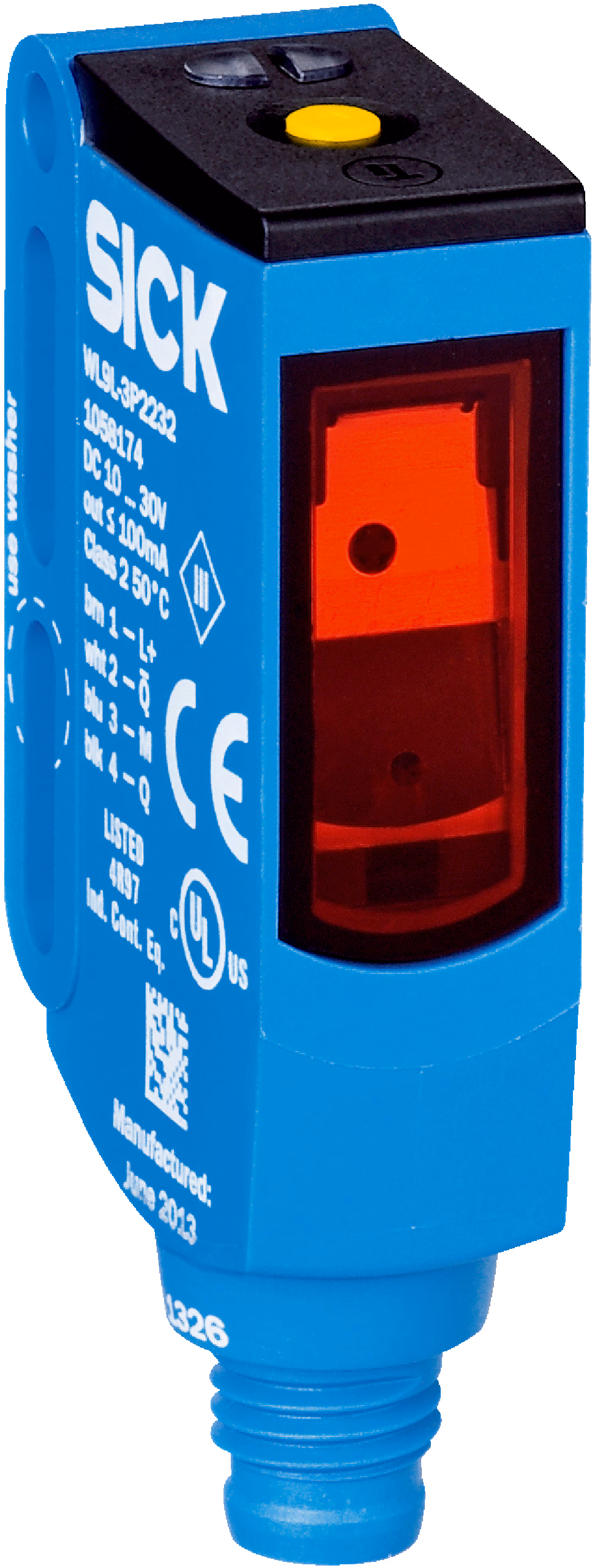

SICK 1076047 / WL9LG-3P2252 is a photoelectric sensor in the W9 family. Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Light source: Laser; Adjustment: Teach-in button; Laser class: 1; Communication interface: -.

Manufacturer

Sick

Part number

1076047

Product family

W9

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 3.5 m;; Sensing range: 0 m... 2.2 m;; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: ≤ 0.5 ms; Dimensions (W x H x D): 12.2 mm x 49.8 mm x 23.6 mm; Connection type: Male connector M8, 4-pin; Enclosure rating: IP66; IP67; IP69K; Housing material: Plastic, VISTAL®; Ambient operating temperature: –10 °C... +50 °C; Ambient operating temperature extended: –30 °C... +55 °C; Weight: 13 g; Functional principle: Photoelectric retro-reflective sensor

Weight

0.013 kg

Dimensions

12.2 x 49.8 x 23.6

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
