1075091

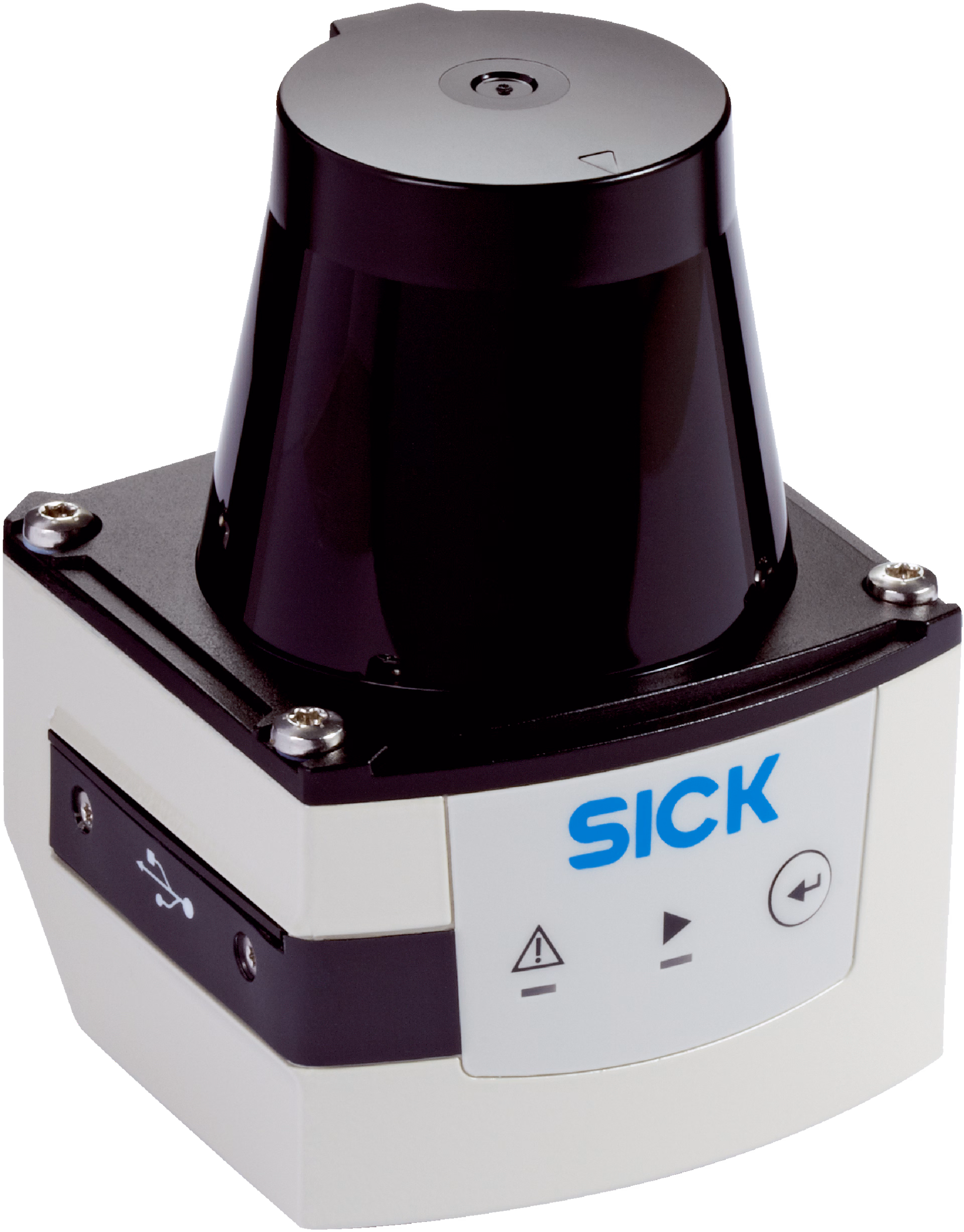

SICK 1075091 / TiM571-2050101 is a lidar sensor in the TiM family. Integrated application: Output of measurement data; Measurement principle: HDDM; Working range: 0.05 m... 25 m; Enclosure rating: IP67; Digital outputs: 1 (PNP, "SYNC"/"device ready"); Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B.

Manufacturer

Sick

Part number

1075091

Product family

TiM

Category

LiDAR sensors

Technical details

Working range: 0.05 m... 25 m; Angular resolution: Horizontal 0.33°; Supply voltage: 9 V DC... 28 V DC; Response time: 1 scan, typ. 67 ms; 2 scans, ≤ 134 ms; Dimensions (L x W x H): 60 mm x 60 mm x 86 mm; Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector; 1 x connection “Power/Synchronization output” 5-pin, M12 male connector; 1 x Micro USB female connector, type B; Enclosure rating: IP67, applies only when the plastic cover of the “Aux interface” is closed (IEC 60529:1989+AMD1:1999+AMD2:2013); Ambient operating temperature: –25 °C... +50 °C; Weight: 250 g, without connecting cables; Application: Outdoor, Indoor; Measurement principle: HDDM; Light source: Infrared (850 nm); Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021); Aperture angle: Horizontal 270°

Weight

0.25 kg

Dimensions

60 x 60 x 86

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
