1074780

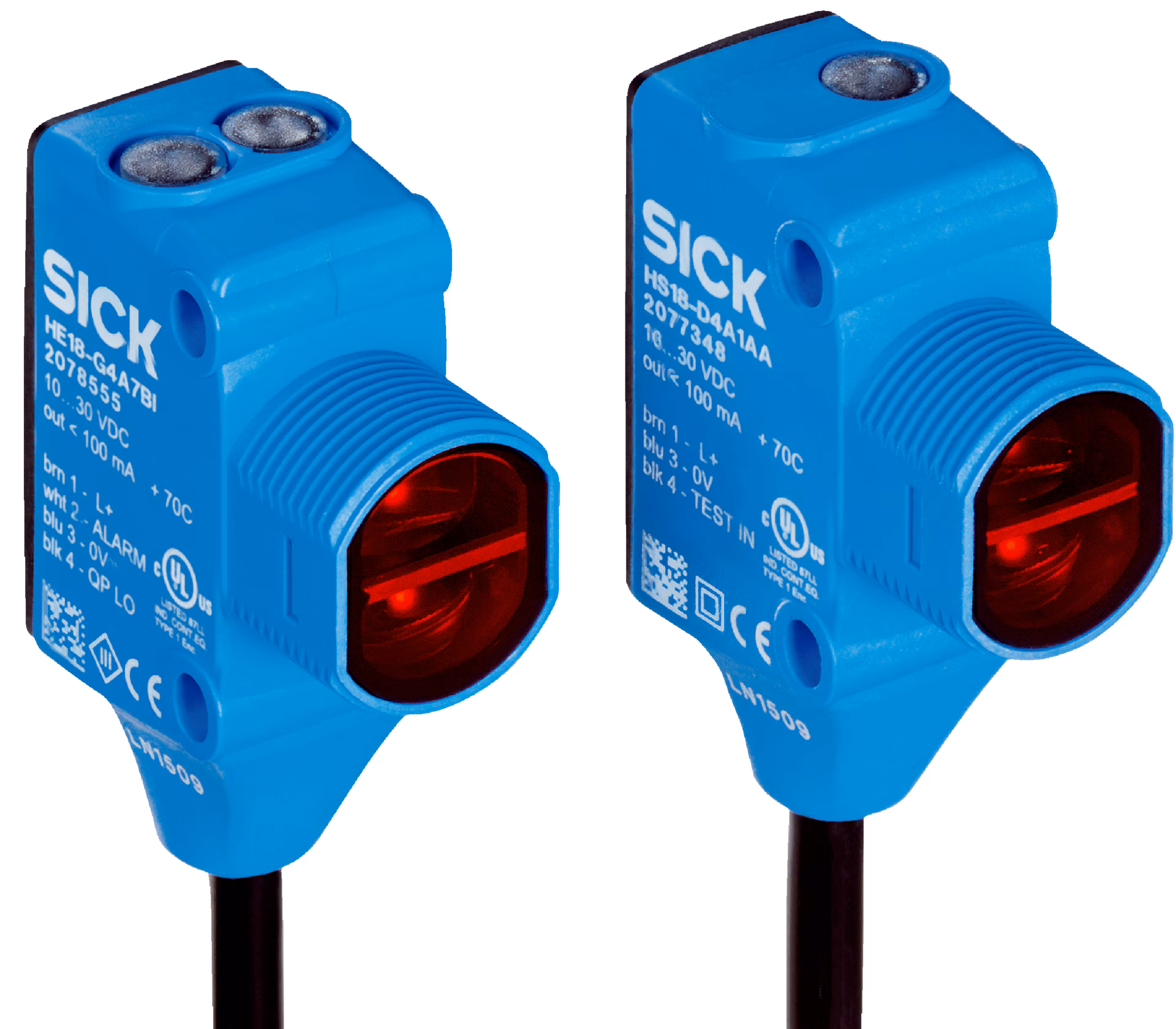

SICK 1074780 / HSE18L-P1G5BA is a photoelectric sensor in the H18 Sure Sense family. Device version: Standard; Communication interface: -; Mounting system type: M18, head/side (24.1 … 25.4 mm); Sensor/ detection principle: Through-beam photoelectric sensor; Sensing range: 60 m; Light source, light type: Laser, visible red light; Voltage type: DC; Switching output Q1: PNP, Light switching; Switching output Q2: PNP, Dark switching; Potentiometer, right: None; Potentiometer, left: None; Connection type: Cable open end, 2,000 mm.

Manufacturer

Sick

Part number

1074780

Product family

H18 Sure Sense

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 60 m; Sensing range: 0 m... 50 m; Supply voltage: 10 V DC... 30 V DC; Switching output: PNP; Switching output detail: Switching output Q1 PNP, Light switching; Switching output Q2: PNP, Dark switching; Response time: ≤ 0.5 ms; Dimensions (W x H x D): 16.2 mm x 45.5 mm x 31.8 mm; Connection type: Cable open end, 2,000 mm; Connection type Detail: Cable material Plastic; Enclosure rating: IP67; IP69K; Housing material: Plastic, VISTAL®; Ambient operating temperature: –30 °C... +55 °C

Weight

0.018 kg

Dimensions

16.2 x 45.5 x 31.8
