1073782

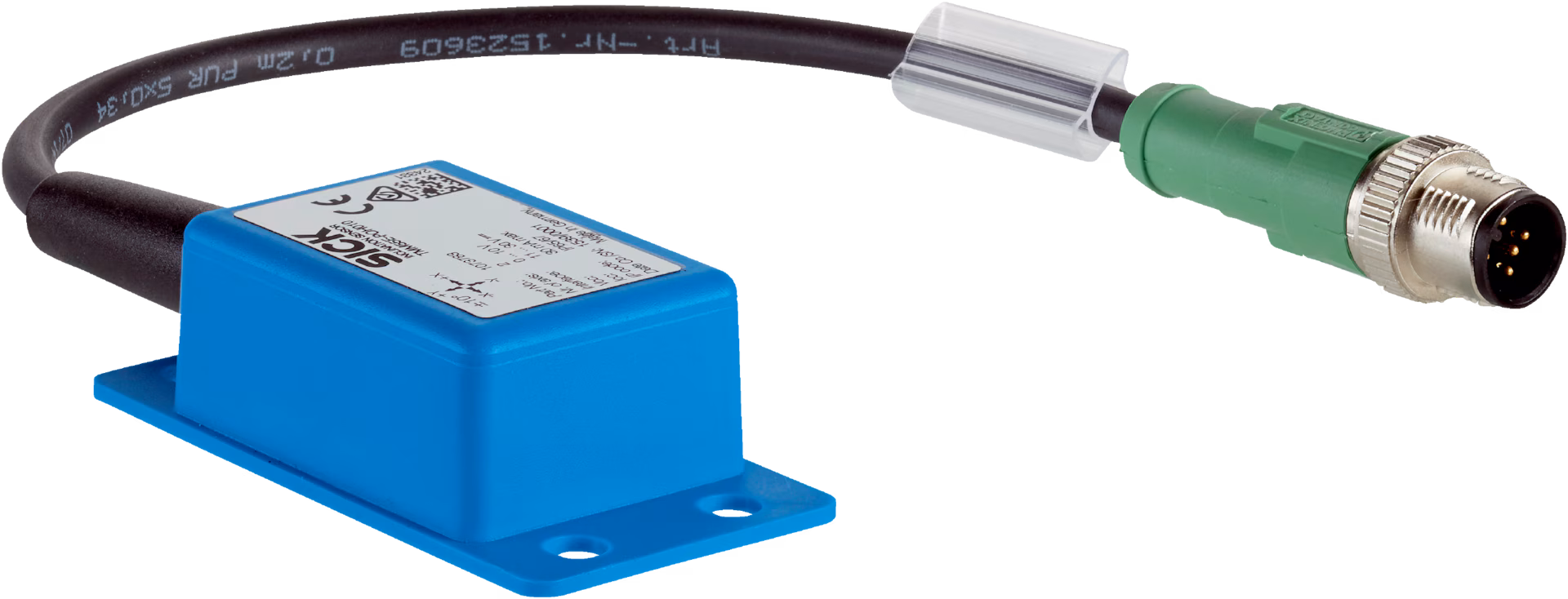

SICK 1073782 / TMM55E-PMH060 is an archive in the TMM55 family. Inertial sensors; Number of axis: 2; Measuring range: ± 60°; Resolution: 0.06°; Communication interface: - / Current; Current output: 4 mA... 20 mA; Programmable/configurable: no; Housing material: Plastic (ABS); Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m.

Manufacturer

Sick

Part number

1073782

Product family

TMM55

Category

Archive

Technical details

Resolution: 0.06°; Supply voltage: 11 V DC... 30 V DC; Communication interface: - / Current; Static measurement accuracy: ± 0.5°; Dimensions: 65 mm x 35 mm x 20 mm; Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m; Enclosure rating: IP65 (IEC 60529); IP67 (IEC 60529); Housing material: Plastic (ABS); Weight: 55 g (with cable); MTTFD (mean time to dangerous failure): 378 years (EN ISO 13849-1); Number of axis: 2; Measuring range: ± 60°; Compensated cross-sensitivity (2-dimensional): Typ. ± 1.2°, max. ± 2.4°; Temperature coefficient (zero point): Max. ± 0.009°/K

Weight

0.055 kg

Dimensions

65 x 35 x 20

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
