1072748

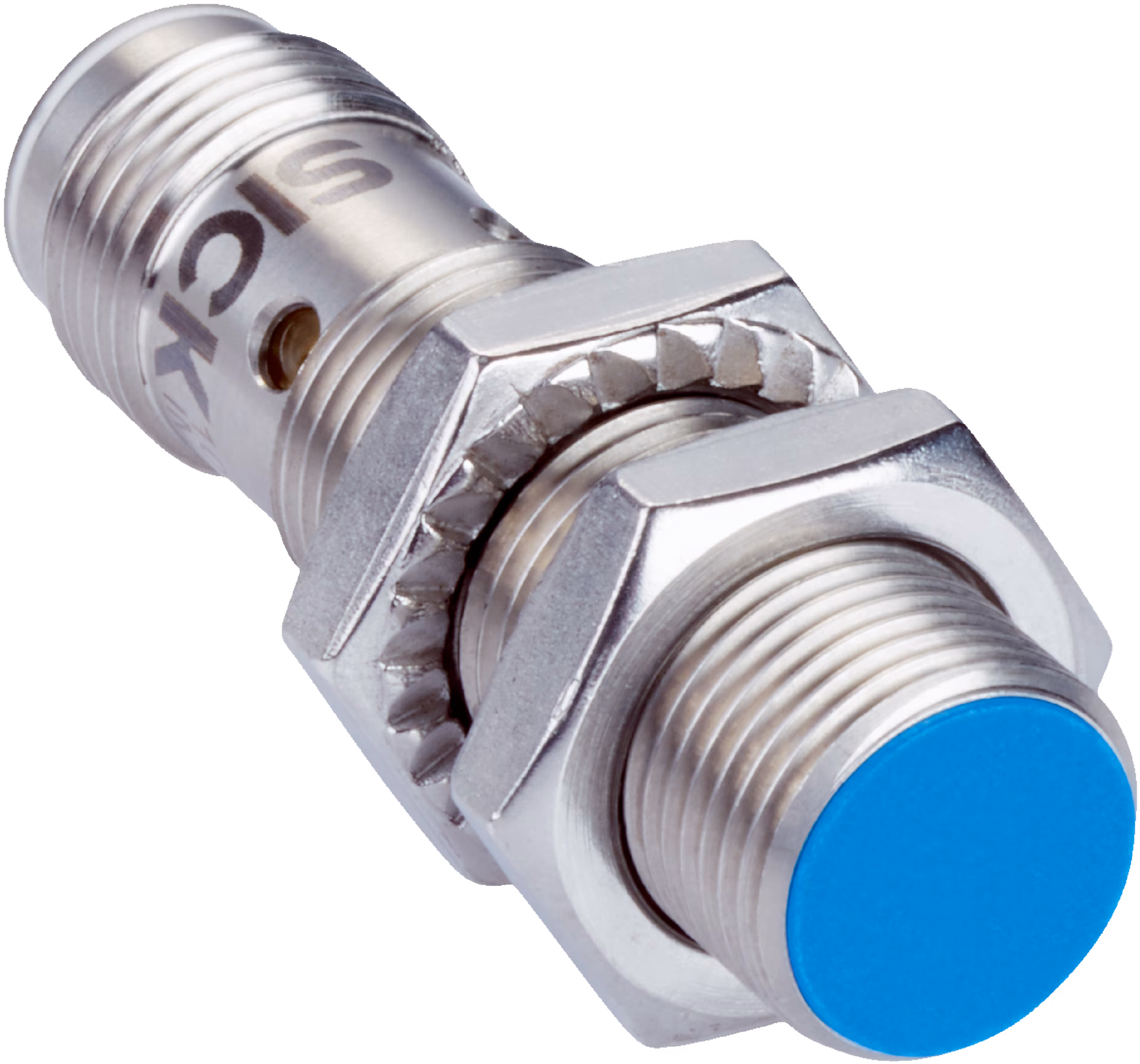

SICK 1072748 / IMB12-04BPOVC0K is an inductive proximity sensor in the IMB family. Housing: Short-body; Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions; Sensing range Sn: 4 mm; Installation type: Flush; Electrical wiring: DC 3-wire; Switching output: PNP; Output function: NC; Connection type: Male connector M12, 4-pin; Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance.

Manufacturer

Sick

Part number

1072748

Product family

IMB

Category

Inductive proximity sensors

Technical details

Sensing range Sn: 4 mm; Safe sensing range Sa: 3.24 mm; Supply voltage: 10 V DC... 30 V DC; Switching output: PNP; Switching output detail: PNP; Connection type: Male connector M12, 4-pin; Enclosure rating: IP68; IP69K; Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303; Ambient operating temperature: –40 °C... +100 °C; Housing: Metric; Thread size: M12 x 1; Diameter: Ø 12 mm; Installation type: Flush; Switching frequency: 2,000 Hz
