1071404

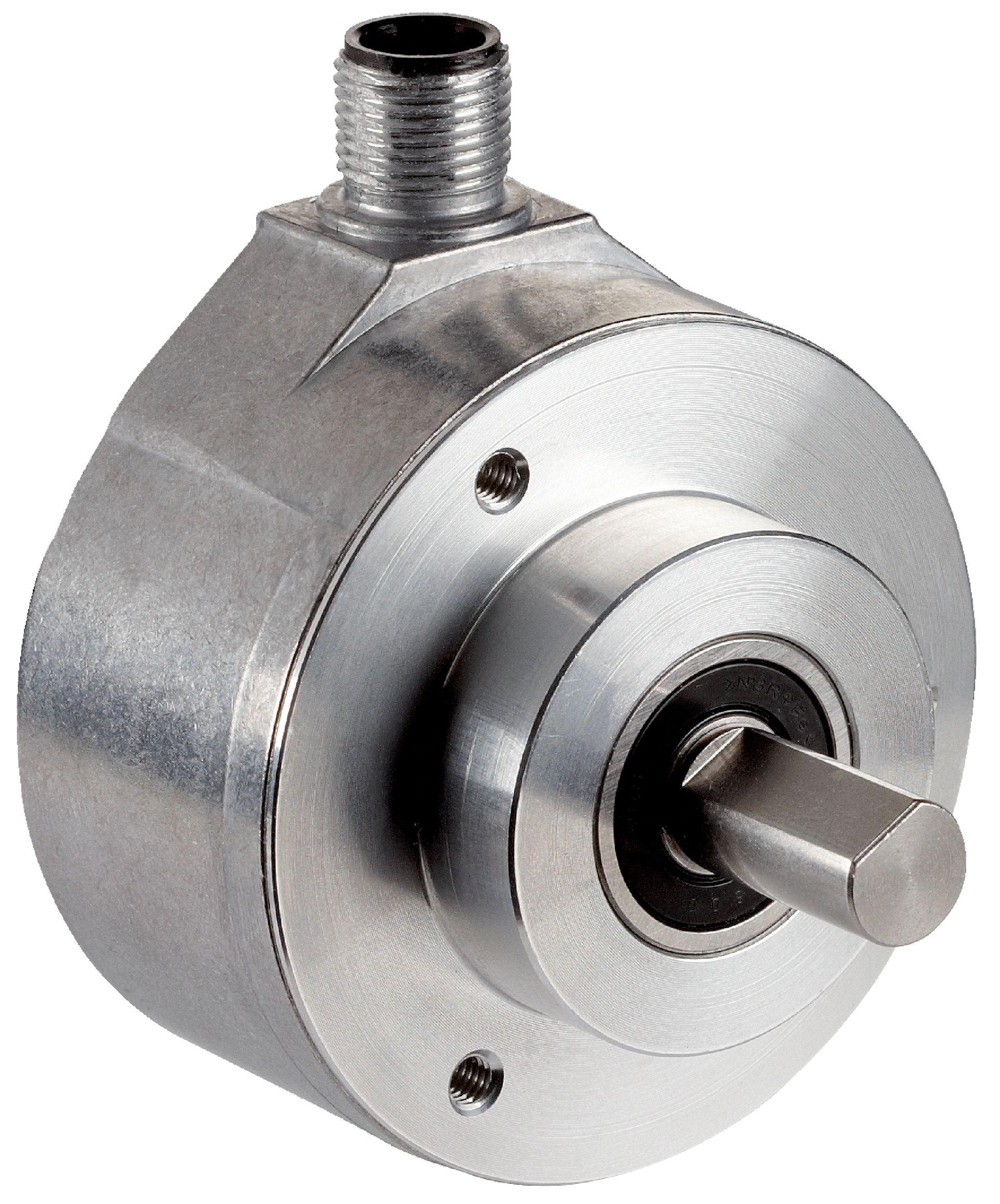

SICK 1071404 / DFS60B-S4EC01024 is an incremental encoder in the DFS60 family. Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat); Communication interface: 10 V... 32 V, HTL, Push pull; Connection type: Male connector, M12, 8-pin, radial; Pulses per revolution: 1,024.

Manufacturer

Sick

Part number

1071404

Product family

DFS60

Category

Incremental encoders

Technical details

Supply voltage: 10... 32 V; Communication interface: Incremental; Communication Interface detail: HTL / Push pull; Connection type: Male connector, M12, 8-pin, radial; Enclosure rating: IP67, Housing side, male connector (IEC 60529); IP65, shaft side (IEC 60529); Housing material: Aluminum die cast; Weight: + 0.3 kg; MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1); Pulses per revolution: 1,024; Measuring step: 90°, electric/pulses per revolution; Measuring step deviation at binary number of lines: ± 0.008°; Error limits: ± 0.05°; Number of signal channels: 6-channel; Initialization time: 40 ms

Weight

0.3 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
